XBLWDatasheet (PDF)

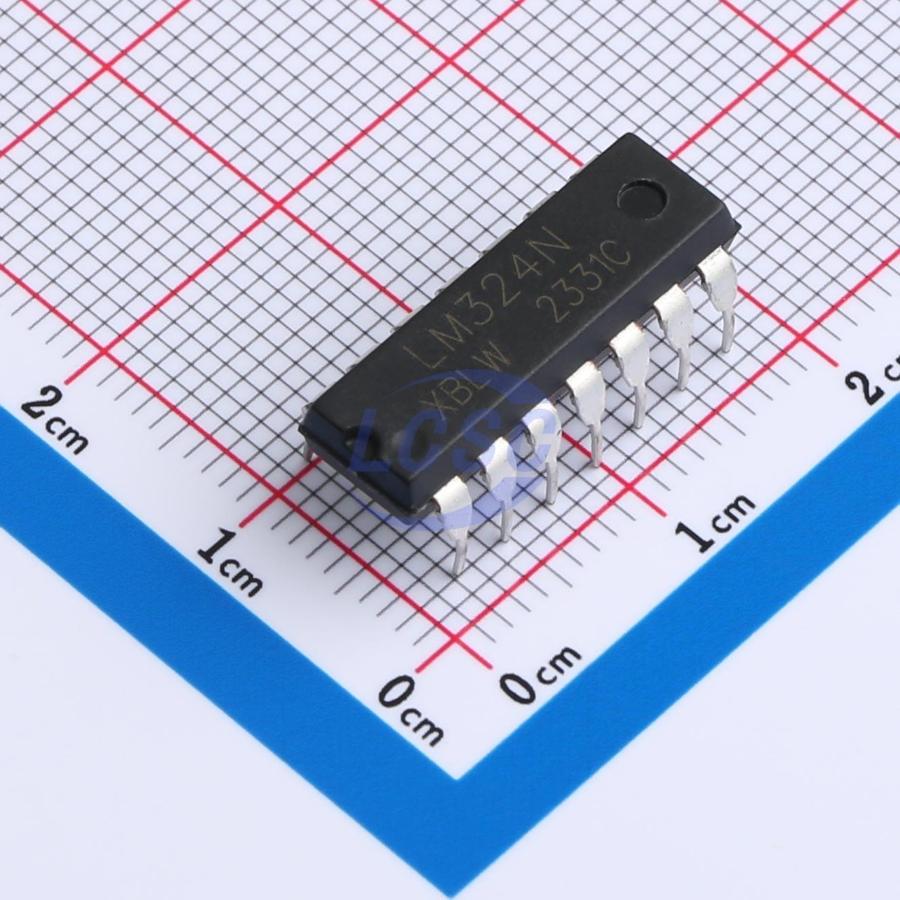

LM324N(XBLW)
40mA 4 7mV 80dB 45nA 600uA DIP-14 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-14ROHS CompliantActive
Quad Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- LM324N(XBLW)
- Store part #
- C18723605
- Package / case
- DIP-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C18723605
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.08 | ₹75.40 |
| 50+ | ₹12.13 | ₹606.50 |
| 150+ | ₹10.66 | ₹1,599.00 |
| 500+ | ₹9.55 | ₹4,775.00 |
| 2,000+ | ₹8.68 | ₹17,360.00 |
| 5,000+ | ₹8.23 | ₹41,150.00 |
5 × ₹15.08
₹75.40
excl. GST
₹88.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
LM324N(XBLW)
₹75.40 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 600uA
- Features
- Built-in compensation
- Dual Supply
- -12V~-1.5V;1.5V~12V
- Single Supply
- 3V~24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.523 g
Overview
The LM324 consists of four independent, high gain operational amplifiers with frequency compensation implemented internally. It suits for radio recorders and audio systems as tone equalization network and also used in other situations. The chip is available in DIP 14 or SOP 14 plastic package.
Applications
- Transducer Amplifiers
- DC Gain Blocks
- Conventional Op Amp Circuits
Key features
- No External Phase Compensation Circuit Required
- Supply Voltage Range: Single Power Supply: Vcc = 3V ~ 24V; Dual Power Supply: Vcc = ±1.5V ~ ±12V
- Low Power Consumption: Icc = 0.6mA (typical) (RL = ∞)
- Input Voltage Range Close To Ground Level
