GREENMICRO

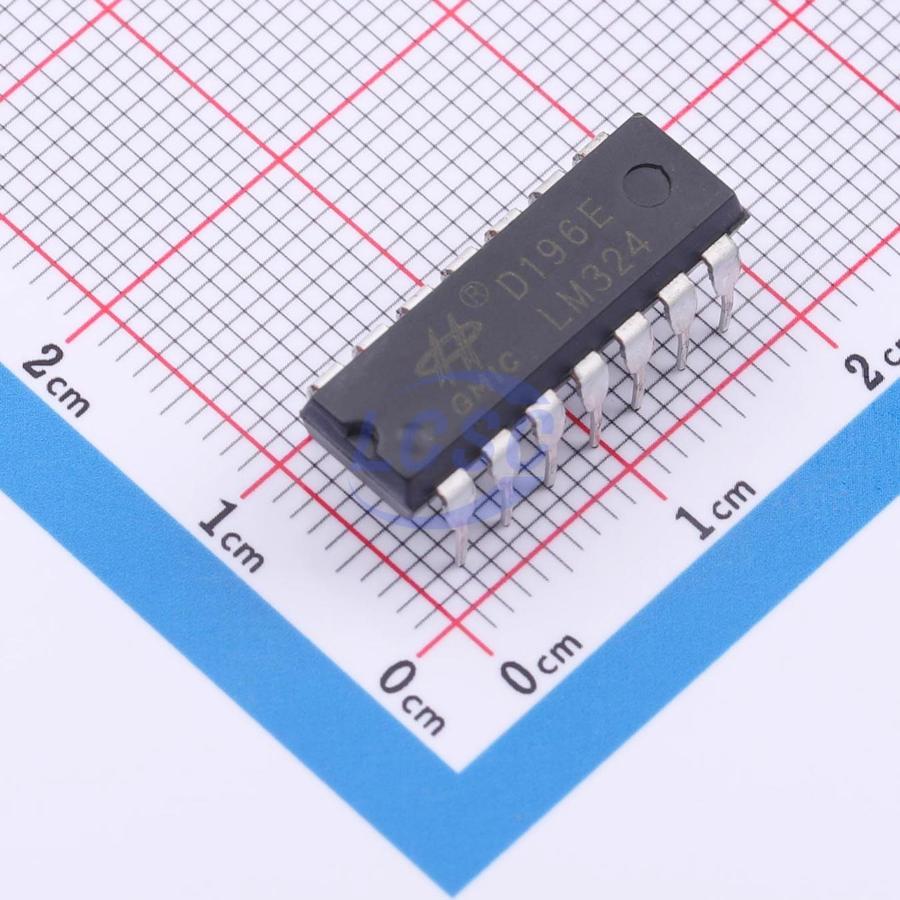

LM324N196

40mA 4 2mV 400V/ms 80dB 250nA 600uA DIP-14 Instrumentation, Op Amps, Buffer Amps

DIP-14RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: LM324N196
Store part #: C51026325
Package / case: DIP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,515 in stock

#C51026325

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.77	₹58.85
50+	₹9.31	₹465.50
150+	₹8.08	₹1,212.00
500+	₹7.17	₹3,585.00
2,000+	₹6.43	₹12,860.00
5,000+	₹6.06	₹30,300.00

Quantity (min 5, multiples of 5)

5 × ₹11.77

₹58.85

excl. GST

₹69.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

LM324N196

₹58.85 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 250nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 600uA
Dual Supply: -12V~-1.5V;1.5V~12V
Single Supply: 3V~24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.687 g

Overview

This circuit is a high-performance quad operational amplifier with four independent op-amps featuring internal phase compensation, designed for use in tape recorders and tone control systems as tone equalization networks, as well as other applications. Housed in a 14-lead DIP14 package, with a power dissipation of 600mW.

Key features

No external phase compensation circuit required
Wide supply voltage range: single supply VCC = 3 ~ 24 V; dual supply VCC = ±1.5 V ~ 12 V
Low supply current: ICC = 0.6 mA (typ., RL = ∞)
Input voltage range extends close to ground potential
