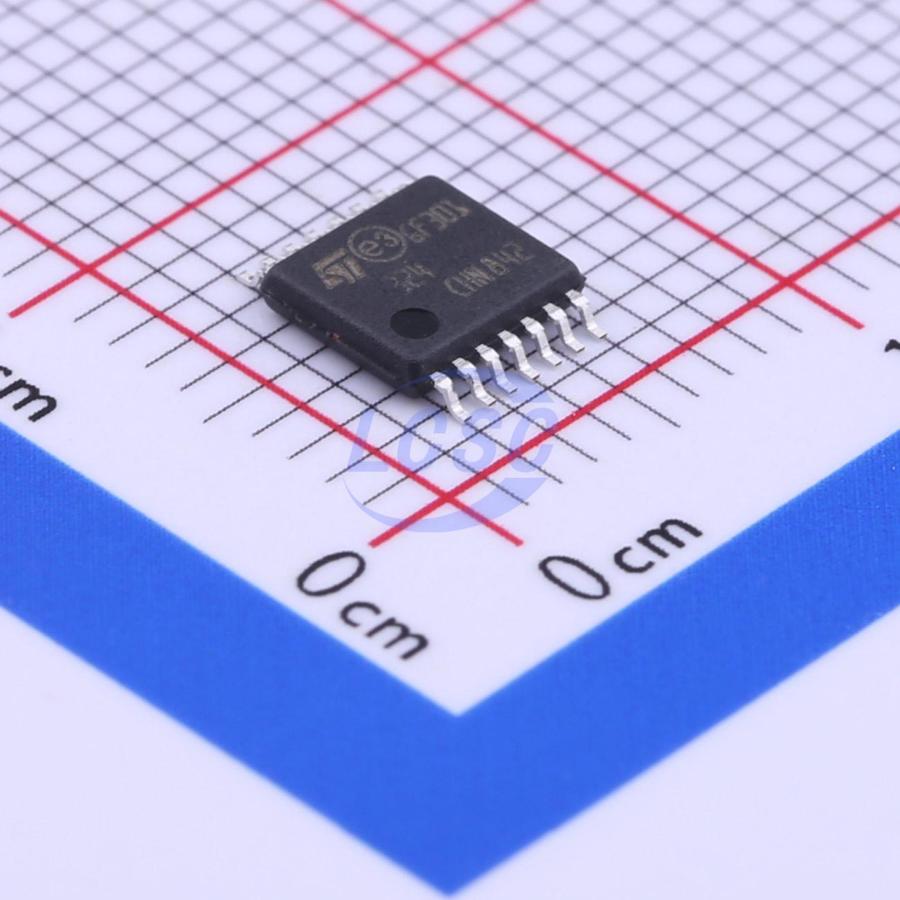

LM324PT
40mA 4 5mV 400V/ms 80dB 300nA 375uA 1.3MHz TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
Low power quad operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LM324PT
- Store part #
- C7944
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C7944
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.72 | ₹153.60 |
| 50+ | ₹24.36 | ₹1,218.00 |
| 150+ | ₹21.63 | ₹3,244.50 |
| 500+ | ₹18.22 | ₹9,110.00 |
| 2,500+ | ₹16.71 | ₹41,775.00 |
| 5,000+ | ₹15.80 | ₹79,000.00 |
5 × ₹30.72
₹153.60
excl. GST
₹181.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324PT
₹153.60 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 30uV/℃
- Quiescent Current
- 375uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The LM124, LM224 and LM324 consist of four independent, high gain, internally frequency - compensated operational amplifiers. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Key features
- Wide gain bandwidth: 1.3 MHz Input common - mode voltage range includes ground
- Large voltage gain: 100 dB
- Very low supply current per amplifier: 375 μA
- Low input bias current: 20 nA
- Low input offset voltage: 5 mV max.
- Low input offset current: 2 nA
- Wide power supply range:
- Single supply: +3 V to +30 V
- Dual supplies: ±1.5 V to ±15 V
