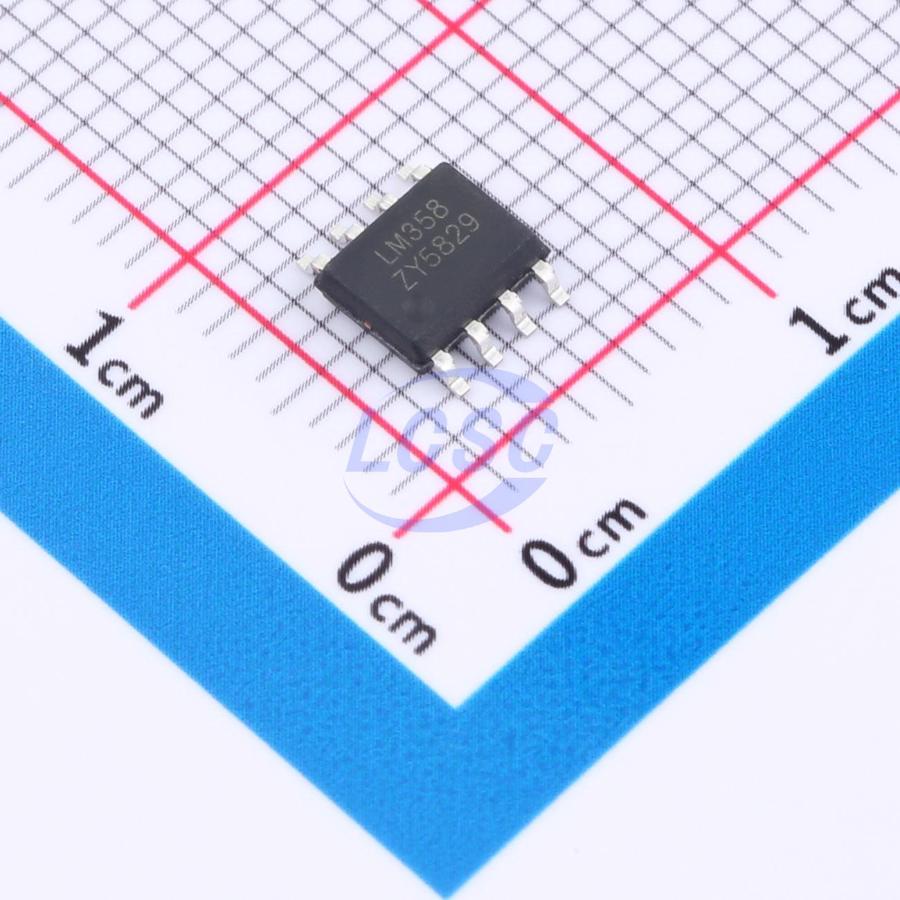

LM358
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive
Dual low-power differential operational amplifier
- Manufacturer
- GR
- Manufacturer part #
- LM358
- Store part #
- C18164495
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C18164495
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.15 | ₹830.00 |
| 600+ | ₹3.51 | ₹2,106.00 |
| 2,500+ | ₹3.12 | ₹7,800.00 |
| 10,000+ | ₹2.79 | ₹27,900.00 |
| 20,000+ | ₹2.61 | ₹52,200.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358
₹106.20 for 20 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.08 g
Overview
The LM358 is a dual low-power differential op-amp that operates from either single or dual power supplies. It features high open-loop gain, internal compensation, wide common-mode range, good thermal stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and conventional op-amp circuits.
Applications
- Sensor signal amplifier
- Audio amplifier
- DC gain
Key features
- Internal frequency compensation
- Single supply voltage range: 3V~36V
- Short-circuit protection
- Dual supply voltage range: ±18V
- Low power consumption: typical 0.5mA @ VCC = 5V
- Unity gain bandwidth: up to 1.2MHz
- Package: DIP8, SOP8
