JSMSEMI

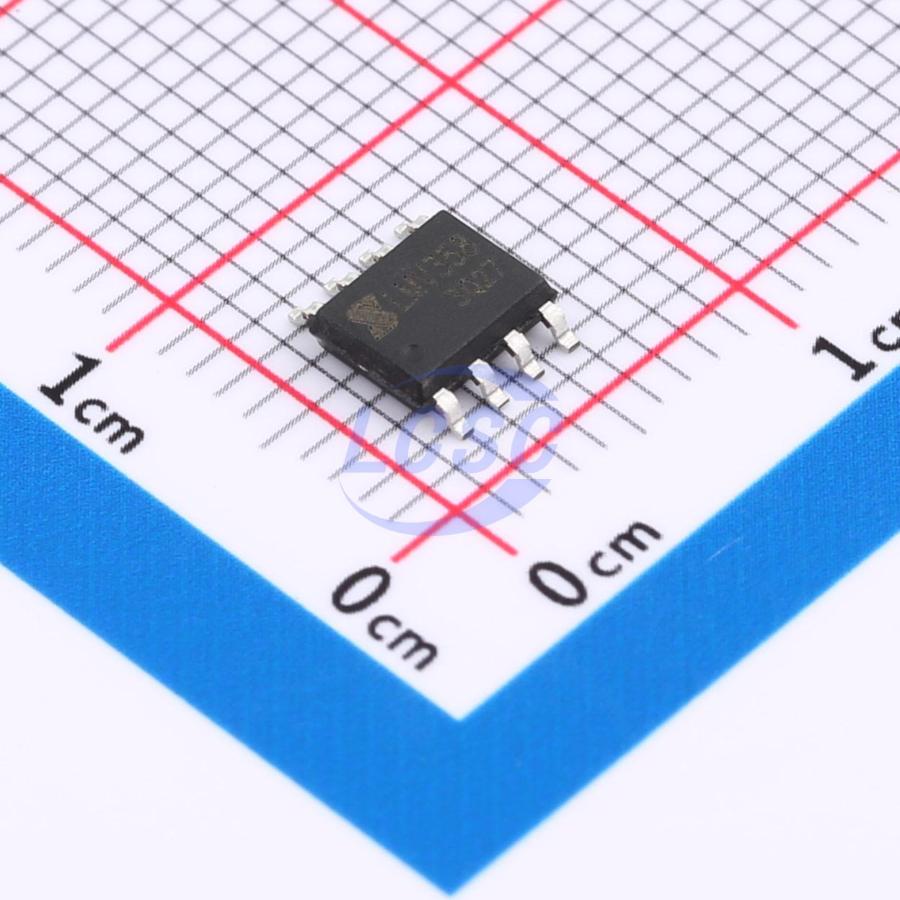

LMV358-JSM

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8

SOP-8ROHS CompliantActive

Low-power rail-to-rail operational amplifier

Manufacturer: JSMSEMI
Manufacturer part #: LMV358-JSM
Store part #: C7529462
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

27,235 in stock

#C7529462

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.35	₹71.75
50+	₹11.23	₹561.50
150+	₹9.67	₹1,450.50
500+	₹8.51	₹4,255.00
2,500+	₹8.08	₹20,200.00
4,000+	₹7.62	₹30,480.00

Quantity (min 5, multiples of 5)

5 × ₹14.35

₹71.75

excl. GST

₹84.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LMV358-JSM

₹71.75 for 5 + GST

Specifications

Output Current: 28mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 84uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.227 g

Overview

The LMV358 (dual) is a rail-to-rail input, voltage feedback, low-power op-amp featuring a wide input common-mode voltage range and output swing. It operates down to a minimum supply voltage of 2.1V with a recommended maximum of 5.5V, and is suitable for use as a power amplifier in compact or portable stereo recorders. The LMV358 delivers a 1MHz gain-bandwidth product at approximately 45μA quiescent current per amplifier. Its ultra-low input bias current (approximately 10pA) makes it well-suited for integrators, photodiode amplifiers, and piezoelectric sensor interfaces. Rail-to-rail input and output buffering also supports dedicated IC designs in single-supply systems. Applications for this amplifier family include security monitoring, portable devices, battery and power supply control, and signal processing and interfacing in low-power sensor systems.

Applications

ASIC input and output op-amps
Sensor interfaces
Piezoelectric sensor amplifiers
Medical devices
Mobile communication audio output
Portable systems
Battery-powered equipment
DSP interfaces

Key features

Low power consumption
Rail-to-rail input and output, typical Vos of 0.8mV
Unity-gain stable
Gain bandwidth product 1.1MHz
Low input bias current: 10pA level, <1nA
2.1V~5.5V operating voltage
Low operating current: 45uA per channel

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	JSM8632XS/TR#C50202094JSMSEMI · SOP-8	JSMSEMI	SOP-8	2,320	₹37.81 · 2,320 in stock	View
	LM358#C5296727JSMSEMI · SOP-8	JSMSEMI	SOP-8	48,450	₹5.01 · 48,450 in stock	View
