Guangdong HottechDatasheet (PDF)

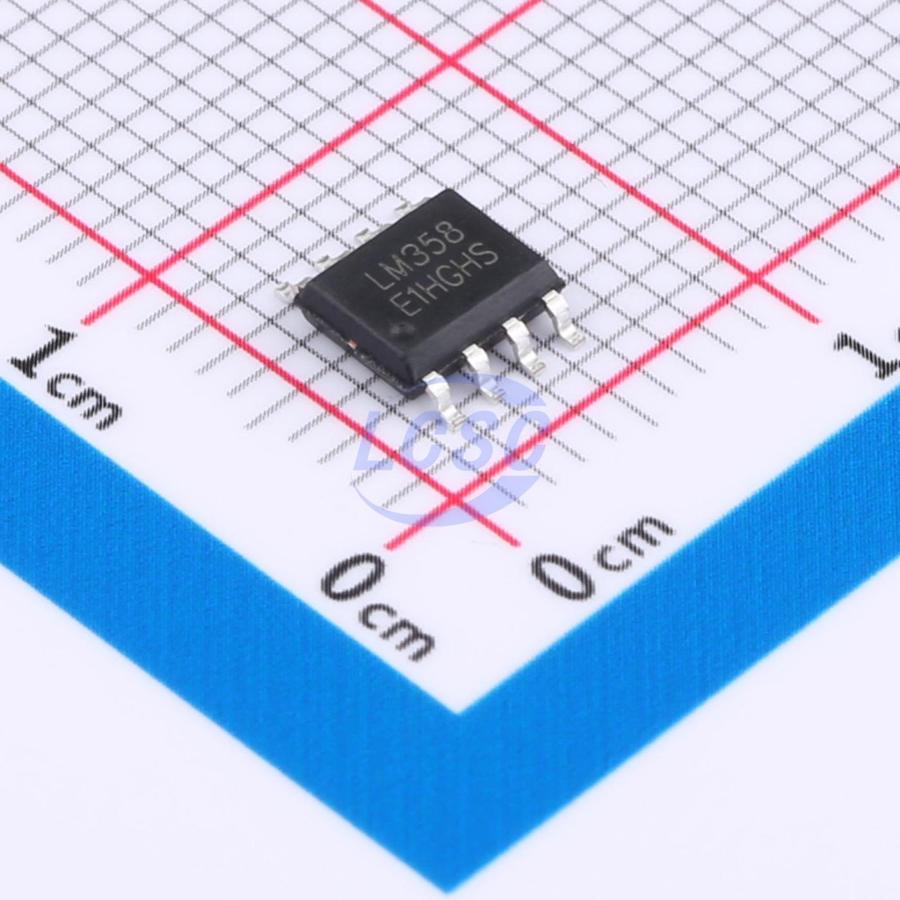

LM358
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Dual independent high-gain operational amplifiers
- Manufacturer
- Guangdong Hottech
- Manufacturer part #
- LM358
- Store part #
- C5364243
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,690 in stock
#C5364243
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.57 | ₹95.70 |
| 100+ | ₹7.55 | ₹755.00 |
| 300+ | ₹6.55 | ₹1,965.00 |
| 2,500+ | ₹5.79 | ₹14,475.00 |
| 5,000+ | ₹5.19 | ₹25,950.00 |
| 10,000+ | ₹4.90 | ₹49,000.00 |
10 × ₹9.57
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358
₹95.70 for 10 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -25℃~+85℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 500uA
- Dual Supply
- -16V~16V
- Single Supply
- 0V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.191 g
Overview
The LM358 consists of two independent high-gain operational amplifiers. It operates on either single or dual supply, with supply current independent of supply voltage. Applications include audio amplifiers, industrial control, DC gain stages, and all conventional op-amp circuits. Available in DIP8 or SOP8 package.
Applications
- Audio amplifier
- Industrial control
- DC gain component
- General op-amp circuits
- Non-inverting DC gain (0V input = 0V output)
- Power amplifier
- RC active bandpass filter
Key features
- Single or dual supply operation
- Dual op-amp configuration
- Logic circuit compatible
- Low power consumption
- Wide frequency range
