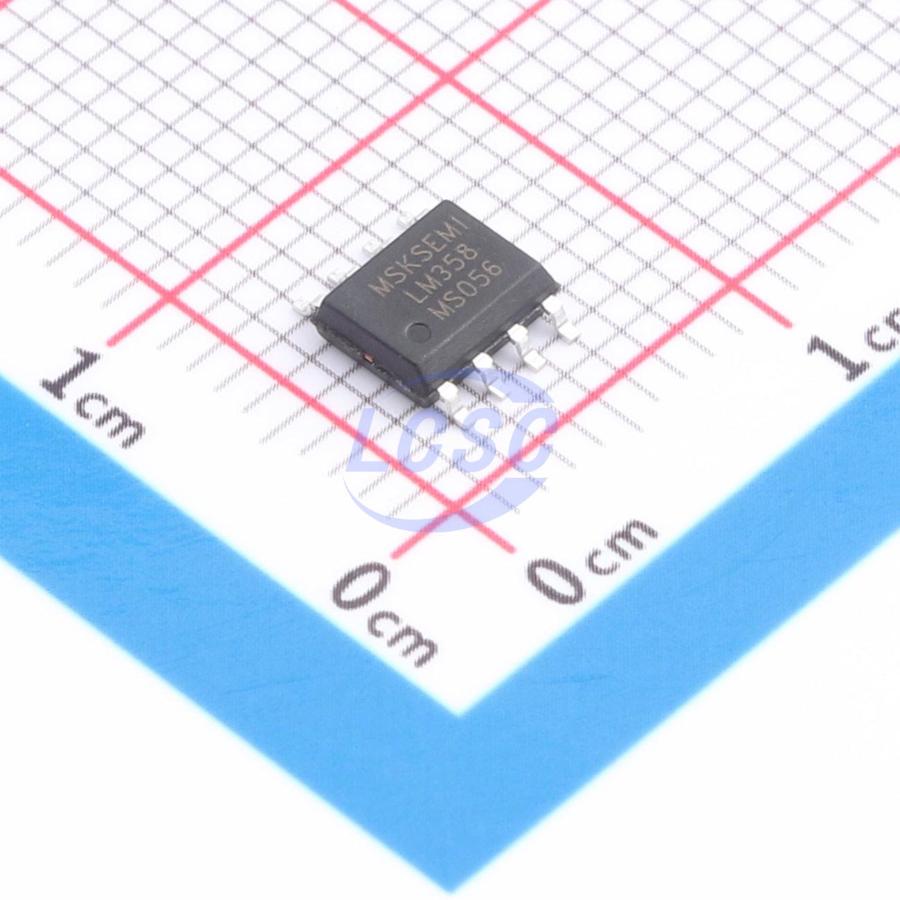

LM358-MS
40mA 2 2mV 70dB 20nA 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM358-MS
- Store part #
- C47020999
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C47020999
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.87 | ₹587.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 2,500+ | ₹4.56 | ₹11,400.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.89 | ₹38,900.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358-MS
₹73.70 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 500uA
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.277 g
Overview
LM358-MS consists of two independent, high-gain, internally frequency-compensated op-amps designed specifically for single-supply operation. Dual-supply operation is also supported, with low supply current consumption independent of supply voltage. Typical applications include transducer amplifiers, DC gain blocks, and most conventional op-amp circuits. The LM358-MS is available in a SOP-8 package.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
Key features
- Internal frequency compensation for unity-gain stability
- High voltage gain: 100dB typical
- Low input bias current: 20nA typical
- Low input offset voltage: 2mV typical
- Low supply current: 0.5mA typical
- Wide supply voltage range:
- Single supply: 3V to 36V
- Dual supply: ±1.5V to ±18V
- Input common-mode voltage range includes ground
- Large output voltage swing: 0V to Vcc - 1.5V
- Lead-free package: SOP-8
