UMWDatasheet (PDF)

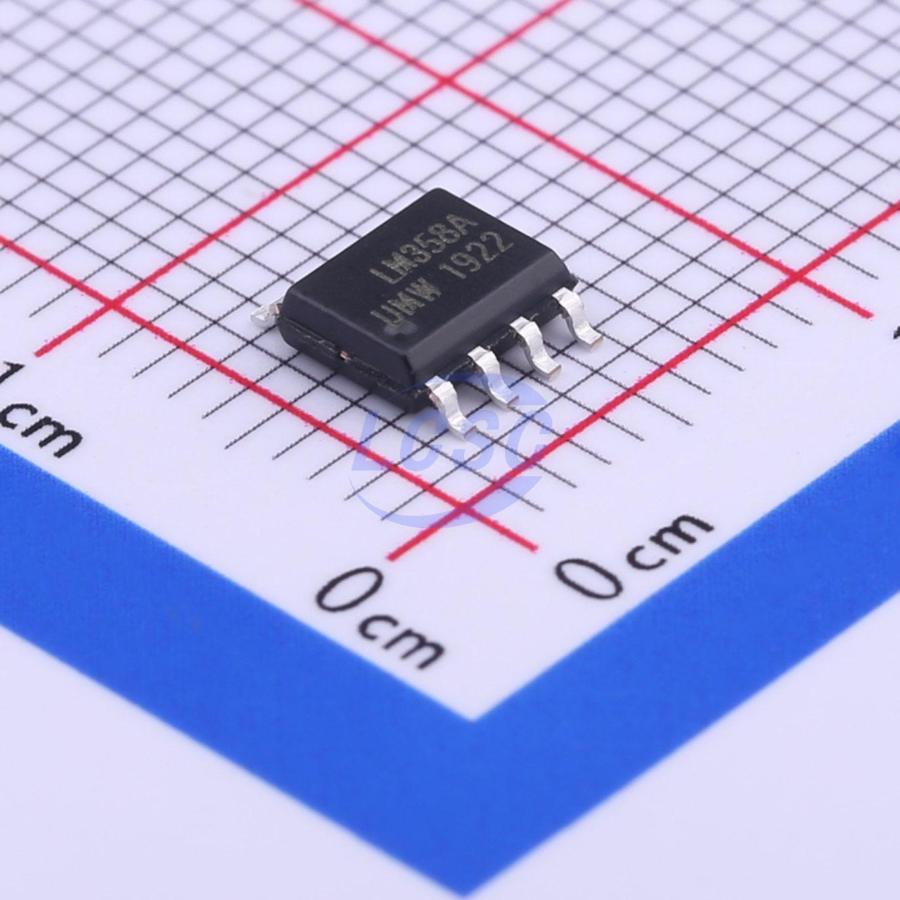

LM358ADR
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS3 CompliantActive
Dual Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LM358ADR
- Store part #
- C404320
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,470 in stock
#C404320
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.68 | ₹86.80 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.82 | ₹1,746.00 |
| 2,500+ | ₹5.11 | ₹12,775.00 |
| 5,000+ | ₹4.52 | ₹22,600.00 |
| 10,000+ | ₹4.25 | ₹42,500.00 |
10 × ₹8.68
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358ADR
₹86.80 for 10 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 1.1MHz
- Quiescent Current
- 1mA
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -16V~16V
- Single Supply
- 0V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.196 g
Overview
The LM358 contains two independent high-gain operational amplifiers. It operates from either single or dual supplies, with supply current independent of supply voltage. Applications include frequency converters, DC gain modules, and all standard op-amp circuits. Available in DIP8, SOP8, and TSSOP-8 packages.
Key features
- Single or dual supply operation
- Compatible logic circuits
- Two internally compensated op-amps in one package
- Low power consumption
- Wide frequency range
