RUNICDatasheet (PDF)

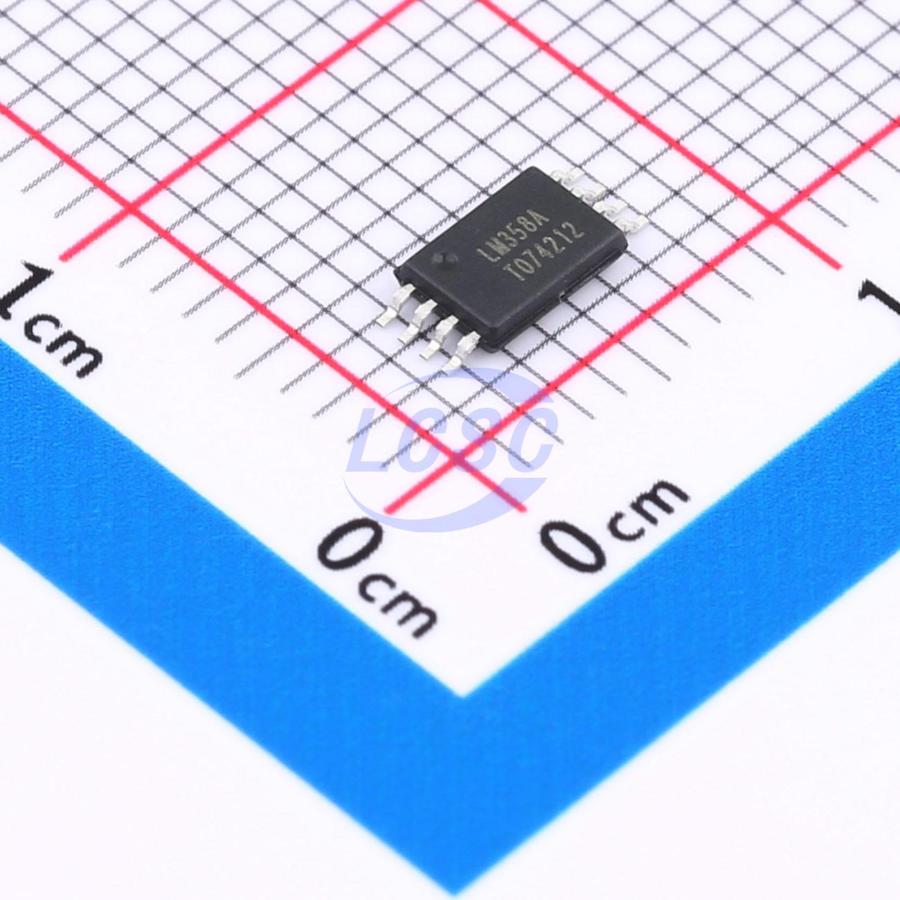

LM358AXQ
60mA 2 2.5mV 500V/ms 95dB 50nA 2.4mA 1.2MHz Rail-to-rail input TSSOP-8 Instrumentation, Op Amps, Buffer Amps
TSSOP-8RoHSActive
36V, 1.2MHz Dual Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- LM358AXQ
- Store part #
- C42459434
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C42459434
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.06 | ₹65.30 |
| 50+ | ₹10.15 | ₹507.50 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 2,500+ | ₹7.26 | ₹18,150.00 |
| 4,000+ | ₹6.81 | ₹27,240.00 |
5 × ₹13.06
₹65.30
excl. GST
₹77.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358AXQ
₹65.30 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 50nA
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
- Quiescent Current
- 2.4mA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
The LM358A device offer high voltage (36V) operation and low input offset voltage, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.5V/μs. The opamp is unity gain stable and feature an low input bias current. The input can operate normally within of the negative power rail to 1.5V below of the positive power rail. The LM358A operational amplifiers is specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 36V or dual power supplies of ±1.5V to ±18V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTER
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- Unity-Gain Bandwith: 1.2MHz
- Low Input Offset Voltage: ±2.5mV (Max at 25°C)
- Quiescent Current: 1.3mA
- Common-Mode Input Voltage Range Include Ground
- Supply Range: 3V to 36V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP8, TSSOP8
