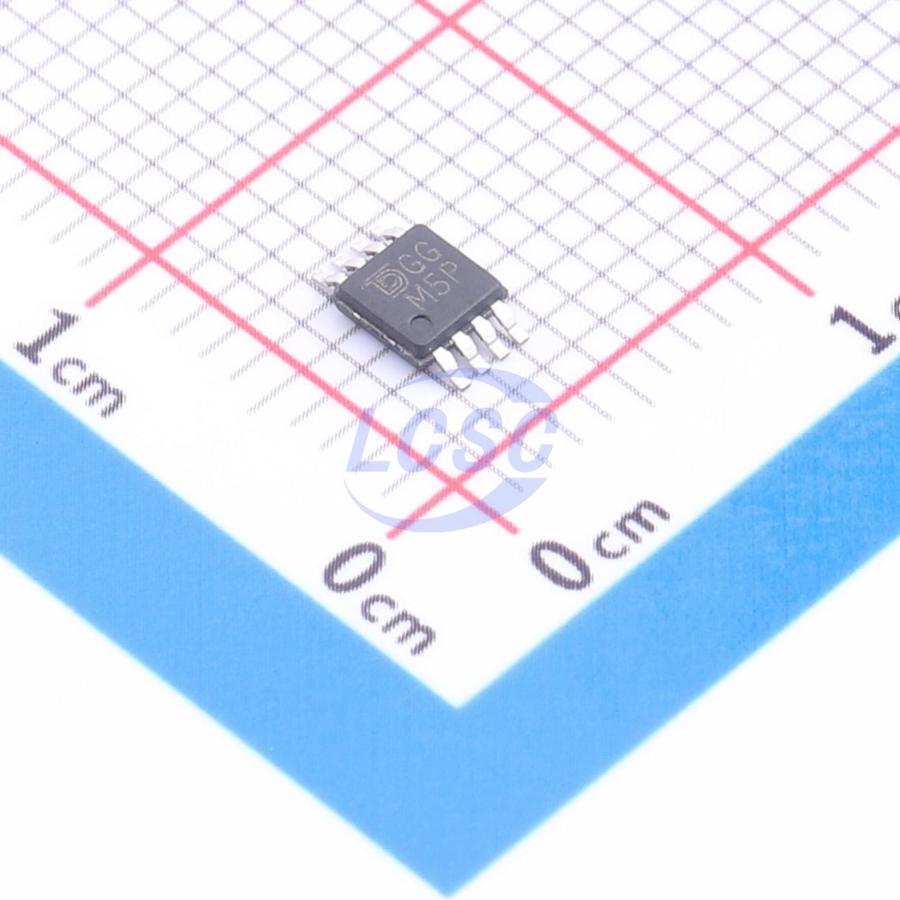

LM358DGKR-TUDI Tudi

LM358DGKR-TUDI

200nA 700uA 700kHz MSOP-8 Audio Amplifiers

MSOP-8RoHSActive

Manufacturer: Tudi
Manufacturer part #: LM358DGKR-TUDI
Store part #: C55098838
Package / case: MSOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,495 in stock

#C55098838

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.24	₹96.20
50+	₹15.28	₹764.00
150+	₹13.31	₹1,996.50
500+	₹11.83	₹5,915.00
2,500+	₹10.64	₹26,600.00
5,000+	₹10.04	₹50,200.00

Quantity (min 5, multiples of 5)

5 × ₹19.24

₹96.20

excl. GST

₹113.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM358DGKR-TUDI

₹96.20 for 5 + GST

Specifications

number of channels: 2
Ib - Input Bias Current: 200nA
Operating Temperature: 0℃~+70℃
Input Offset Current(Ios): 2nA
Vos - Input Offset Voltage: 3mV
Output Current: 30mA
Quiescent Current: 700uA
Common Mode Rejection Ratio (CMRR): 80dB
Gain Bandwidth Product: 700kHz
Input Offset Voltage Drift(Vos TC): 7uV/℃
Single Supply: 3V~32V
Dual Supply: 1.5V~16V;-16V~-1.5V
Slew Rate: 300V/ms
Noise density(eN): 40nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.237 g
