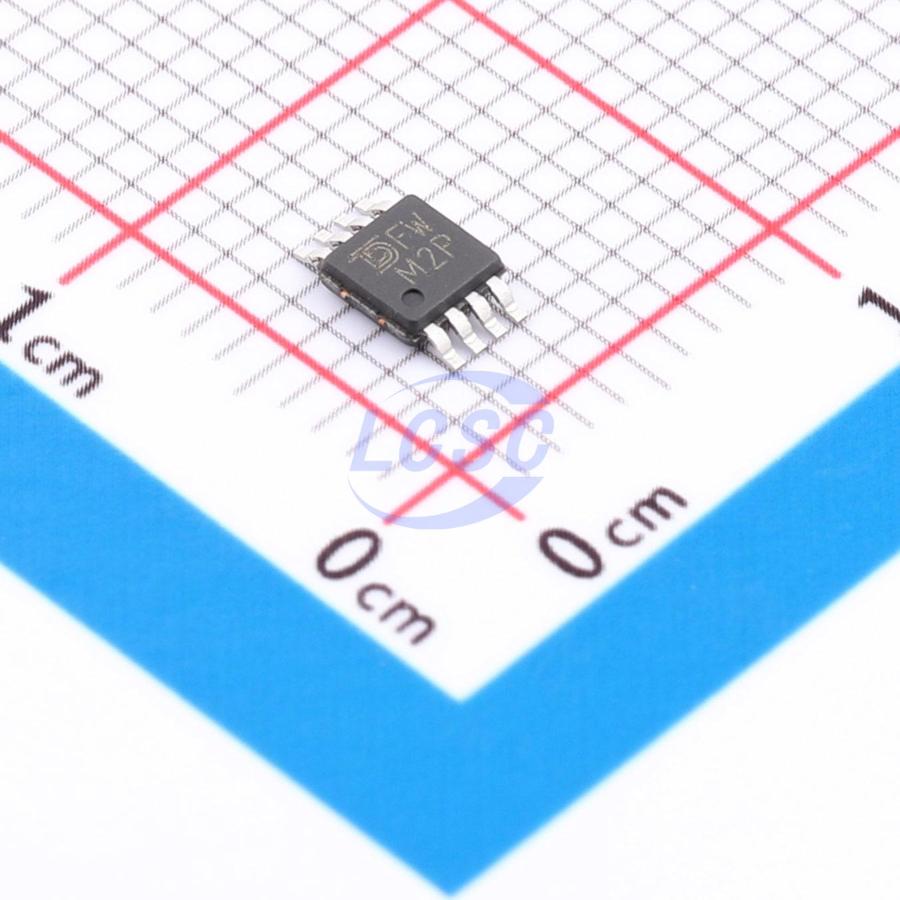

LM258DGKR-TUDI
350uA 700kHz 20nA MSOP-8 Audio Amplifiers
- Manufacturer
- Tudi
- Manufacturer part #
- LM258DGKR-TUDI
- Store part #
- C55098829
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C55098829
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.71 | ₹83.55 |
| 50+ | ₹13.27 | ₹663.50 |
| 150+ | ₹11.55 | ₹1,732.50 |
| 500+ | ₹10.27 | ₹5,135.00 |
| 2,500+ | ₹9.23 | ₹23,075.00 |
| 5,000+ | ₹8.72 | ₹43,600.00 |
5 × ₹16.71
₹83.55
excl. GST
₹98.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258DGKR-TUDI
₹83.55 for 5 + GST
Specifications
- Quiescent Current
- 350uA
- Common Mode Rejection Ratio (CMRR)
- 80dB
- Gain Bandwidth Product
- 700kHz
- number of channels
- 2
- Ib - Input Bias Current
- 20nA
- Operating Temperature
- -25℃~+85℃
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Single Supply
- 3V~30V
- Input Offset Current(Ios)
- 2nA
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 300V/ms
- Noise density(eN)
- 40nV/√Hz@1kHz
- Output Current
- 20mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.238 g
