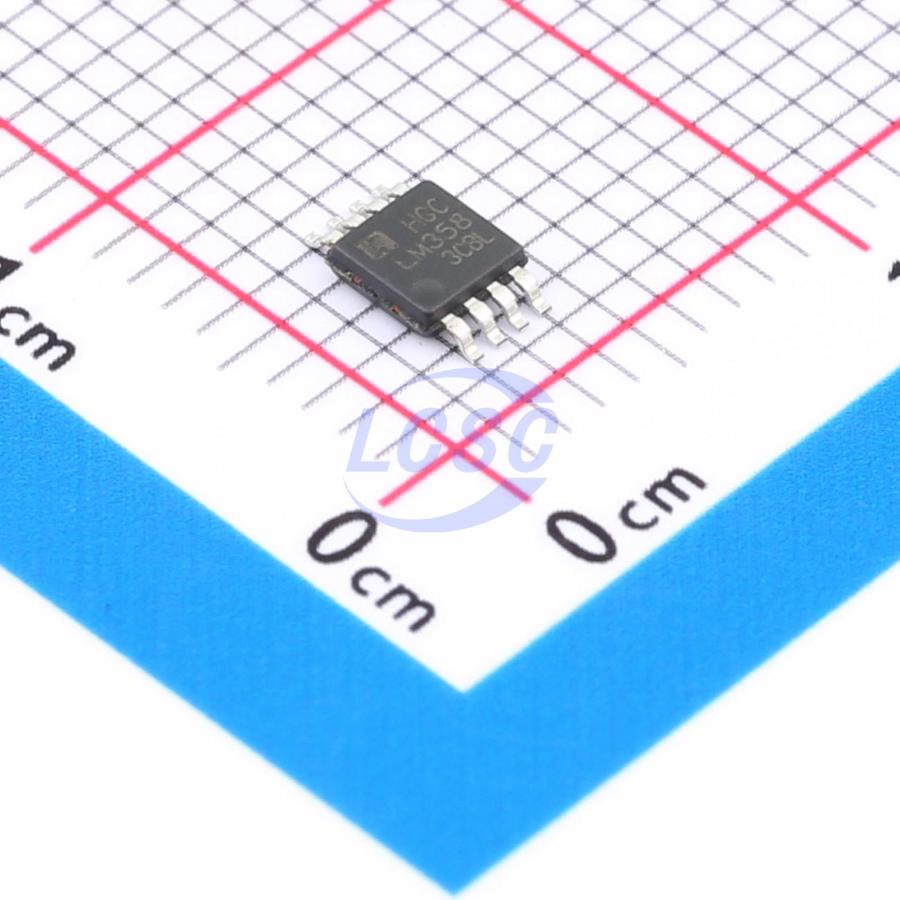

LM358DGKRG
Standard (General Purpose) Amplifier 2 Circuit MSOP-8
MSOP-8ROHS CompliantActive
Dual low-power differential operational amplifier
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM358DGKRG
- Store part #
- C19723735
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,440 in stock
#C19723735
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.58 | ₹75.80 |
| 100+ | ₹6.01 | ₹601.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.64 | ₹13,920.00 |
| 6,000+ | ₹4.17 | ₹25,020.00 |
| 9,000+ | ₹3.94 | ₹35,460.00 |
10 × ₹7.58
₹75.80
excl. GST
₹89.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM358DGKRG
₹75.80 for 10 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.186 g
Overview
The LM258/LM358 is a dual low-power differential operational amplifier that supports both single-supply and dual-supply operation. It features high open-loop gain, internal compensation, wide common-mode range, good temperature stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and conventional op-amp circuit applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5V
- Package options: DIP-8, SOP-8, MSOP-8, TSSOP-8, SOT-23-8, and DFN-8
- Single-supply voltage range: 3V~36V
- Dual-supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
