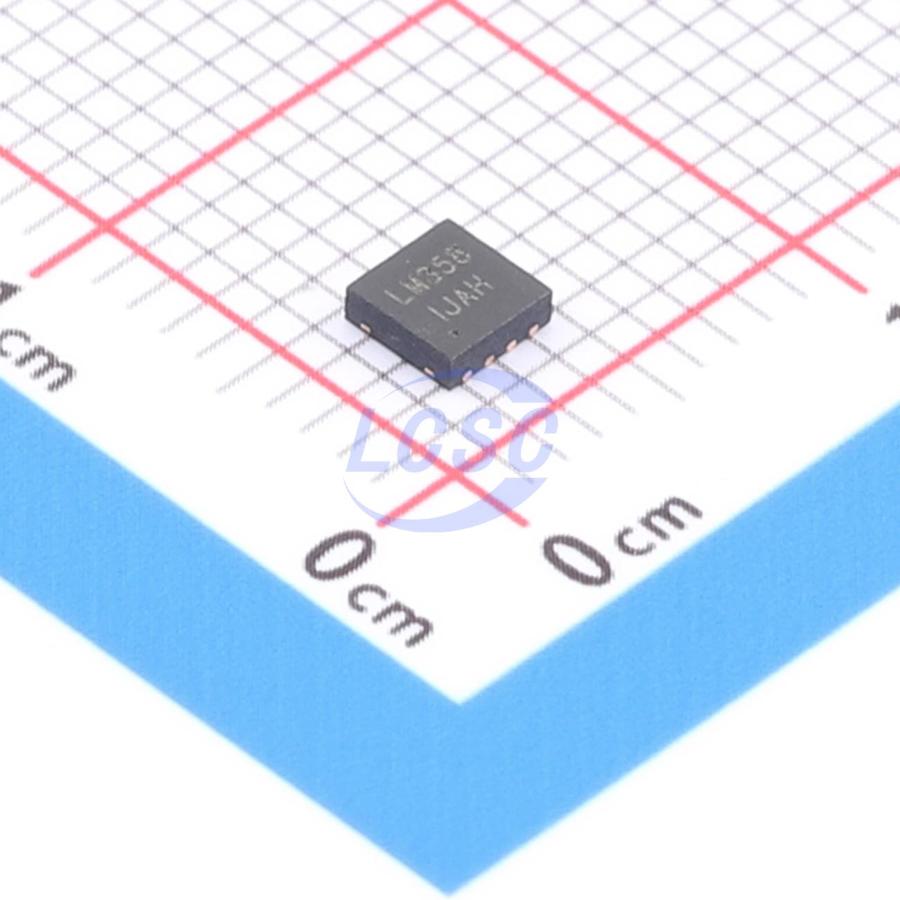

HGSEMI

LM358DQ3/TR

Standard (General Purpose) Amplifier 2 Circuit DFN-8-EP(3x3)

DFN-8-EP(3x3)RoHSActive

Dual-channel low-power differential operational amplifier, single/dual power supply

Manufacturer: HGSEMI
Manufacturer part #: LM358DQ3/TR
Store part #: C46635753
Package / case: DFN-8-EP(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,700 in stock

#C46635753

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹8.81	₹44.05
50+	₹7.74	₹387.00
150+	₹7.21	₹1,081.50
500+	₹6.80	₹3,400.00
2,500+	₹6.48	₹16,200.00
5,000+	₹6.32	₹31,600.00

Quantity (min 5, multiples of 5)

5 × ₹8.81

₹44.05

excl. GST

₹51.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LM358DQ3/TR

₹44.05 for 5 + GST

Specifications

Output Current: 24mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Input Offset Current(Ios): 10nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 50nA
Quiescent Current: 500uA
Gain Bandwidth Product: 1.2MHz
Features: Built-in compensation
Dual Supply: -18V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.089 g
