ChipNoboDatasheet (PDF)

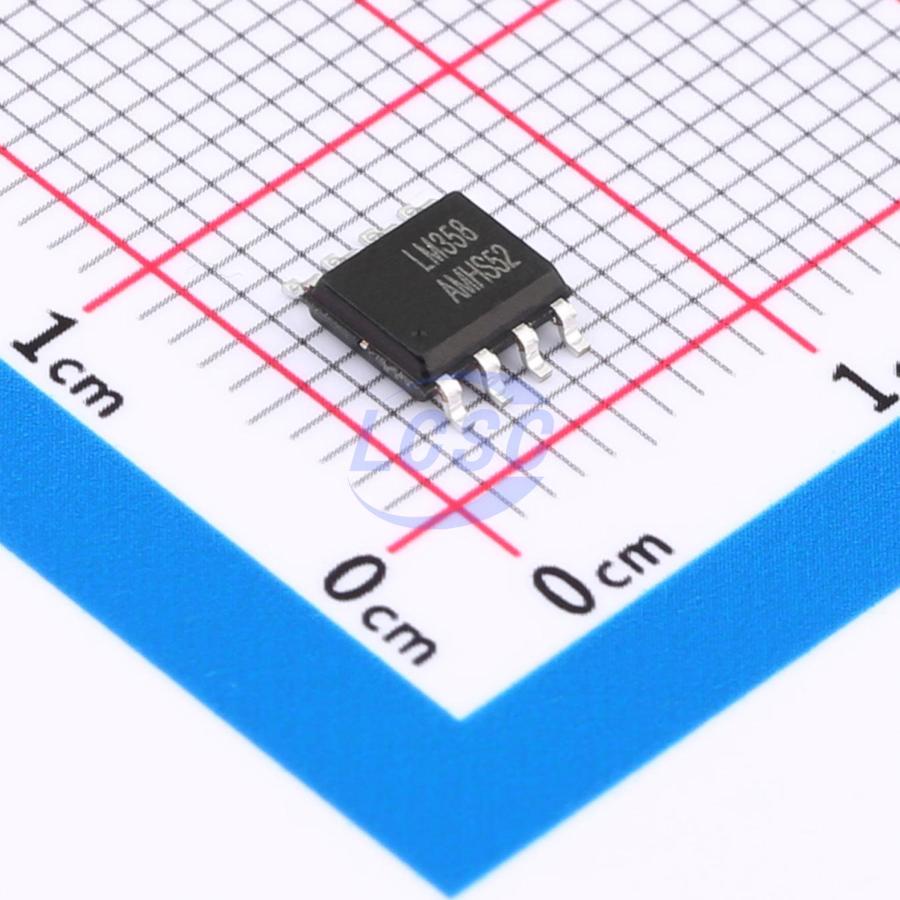

LM358DR-CN
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Low Power Dual Operational Amplifier
- Manufacturer
- ChipNobo
- Manufacturer part #
- LM358DR-CN
- Store part #
- C42436860
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C42436860
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹4.99 | ₹499.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 1,000+ | ₹3.74 | ₹3,740.00 |
| 4,000+ | ₹3.47 | ₹13,880.00 |
| 8,000+ | ₹3.25 | ₹26,000.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358DR-CN
₹64.20 for 10 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 500uA
- Dual Supply
- -16V~-2V;2V~16V
- Single Supply
- 4V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
The LM358DR-CN series contains two independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single supply over a wide voltage range. The series also operates with split supplies, and the low quiescent current drain is independent of the supply voltage.
Applications
- Sensor amplifiers
- DC gain blocks
- General-purpose op-amp circuits
Key features
- Wide supply range: single supply 4V to 32V, or dual supply ±2V to ±16V
- Ultra-low supply current (500μA), virtually independent of supply voltage
- Wide bandwidth (unity gain): 1MHz
- Low input bias current
- Common-mode range extends to negative supply
