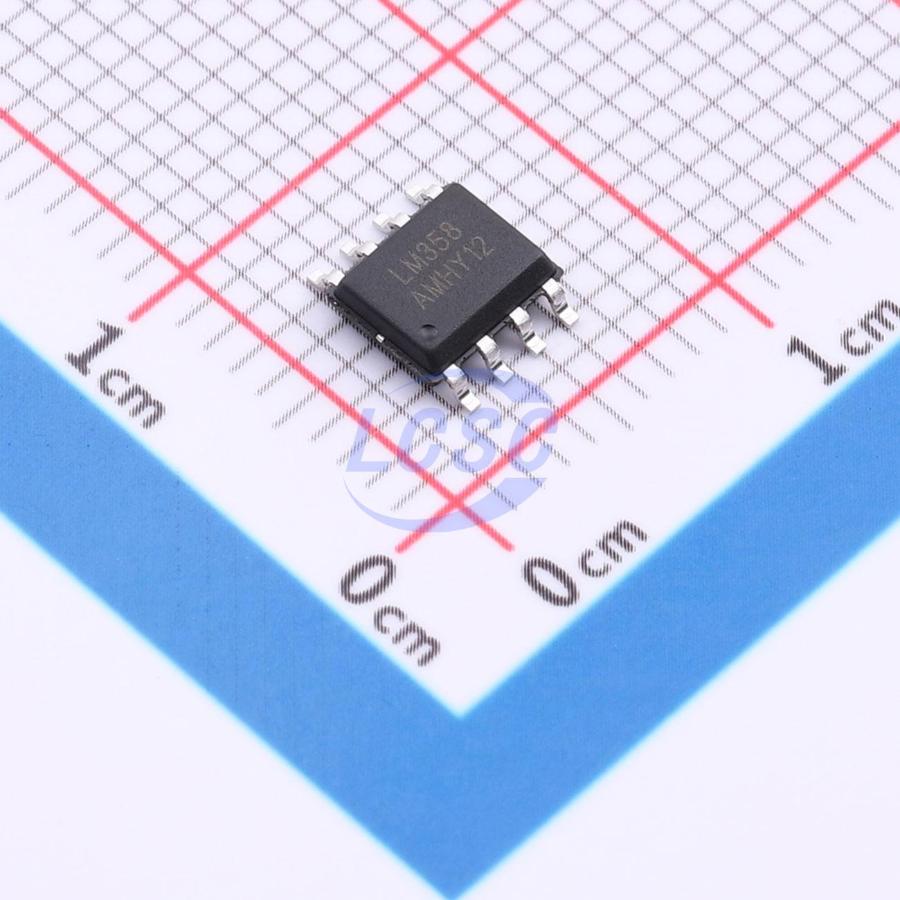

LM358DT(TP)
40mA 2 2mV 400V/ms 80dB 50nA 1MHz 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM358DT(TP)
- Store part #
- C53340820
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,250 in stock
#C53340820
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.50 | ₹52.50 |
| 50+ | ₹8.27 | ₹413.50 |
| 150+ | ₹7.16 | ₹1,074.00 |
| 500+ | ₹6.31 | ₹3,155.00 |
| 2,500+ | ₹5.65 | ₹14,125.00 |
| 4,000+ | ₹5.31 | ₹21,240.00 |
5 × ₹10.50
₹52.50
excl. GST
₹61.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358DT(TP)
₹52.50 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 500uA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
This is a dual-channel, low-power differential operational amplifier that can be powered by a single or dual supply. It features high open-loop gain, internal compensation, high common-mode input range, good temperature stability, and output short-circuit protection. It operates from supply voltages as low as 3.0V or as high as 32V, with a common-mode input range that includes the negative supply rail, requires no external biasing, and an output voltage range that includes the negative supply voltage.
Applications
- Temperature sensors
- Battery-powered instruments
- Smoke/gas/environmental sensors
- Medical devices
- Portable instruments and mobile devices
- Active filters
- Piezoelectric transducer amplifiers
- Sensor interfaces
- Audio amplifiers
Key features
- General purpose, low cost
- Gain bandwidth product: 1MHz
- Single supply voltage range: 3V~32V
- Dual supply voltage range: ±1.5V to ±16V
- Low power consumption: typical 0.5mA@VCC = 5V
- Internal frequency compensation
- Output short-circuit protection
- Package type: SOP-8
