HGSEMI

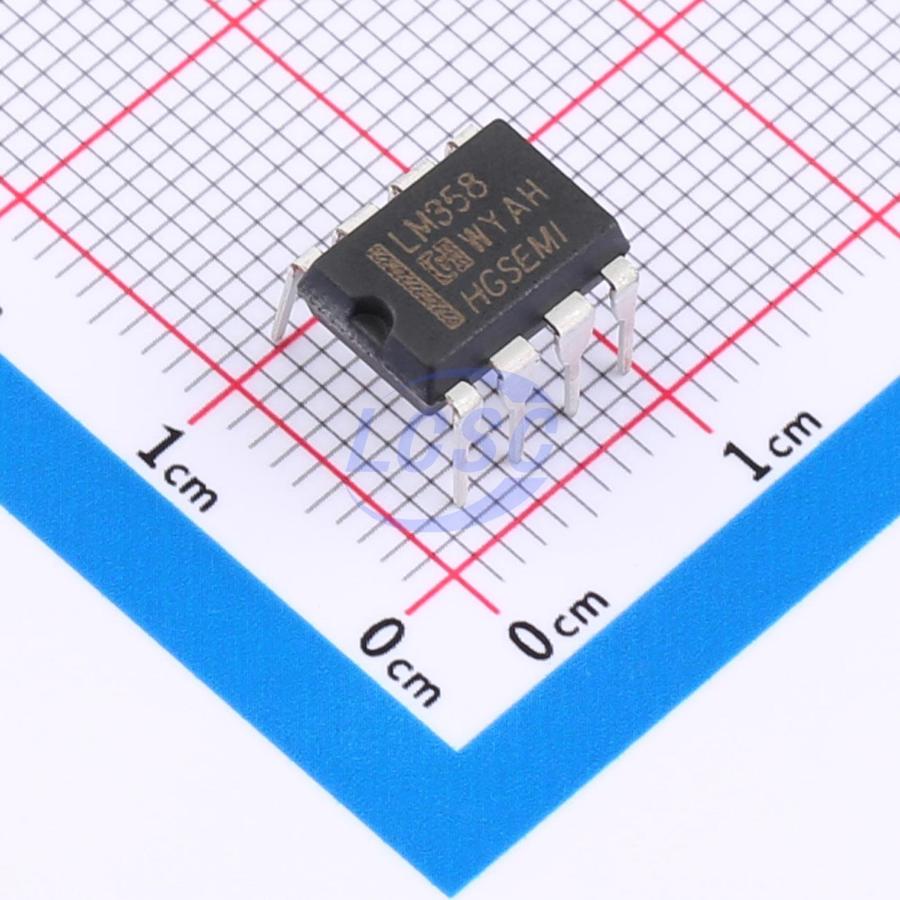

LM358N

30mA 2 7mV 50nA 80dB 800uA 1.2MHz DIP-8 Instrumentation, Op Amps, Buffer Amps

DIP-8RoHSActive

DUAL OPERATIONAL AMPLIFIER

Manufacturer: HGSEMI
Manufacturer part #: LM358N
Store part #: C434570
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,230 in stock

#C434570

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹12.50	₹62.50
50+	₹9.90	₹495.00
150+	₹8.19	₹1,228.50
500+	₹7.21	₹3,605.00
2,000+	₹6.43	₹12,860.00
4,000+	₹6.03	₹24,120.00

Quantity (min 5, multiples of 5)

5 × ₹12.50

₹62.50

excl. GST

₹73.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

LM358N

₹62.50 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 7mV
Input Offset Current(Ios): 10nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 50nA
Common Mode Rejection Ratio(CMRR): 80dB
Quiescent Current: 800uA
Gain Bandwidth Product: 1.2MHz
Features: Built-in compensation
Dual Supply: -18V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.767 g
