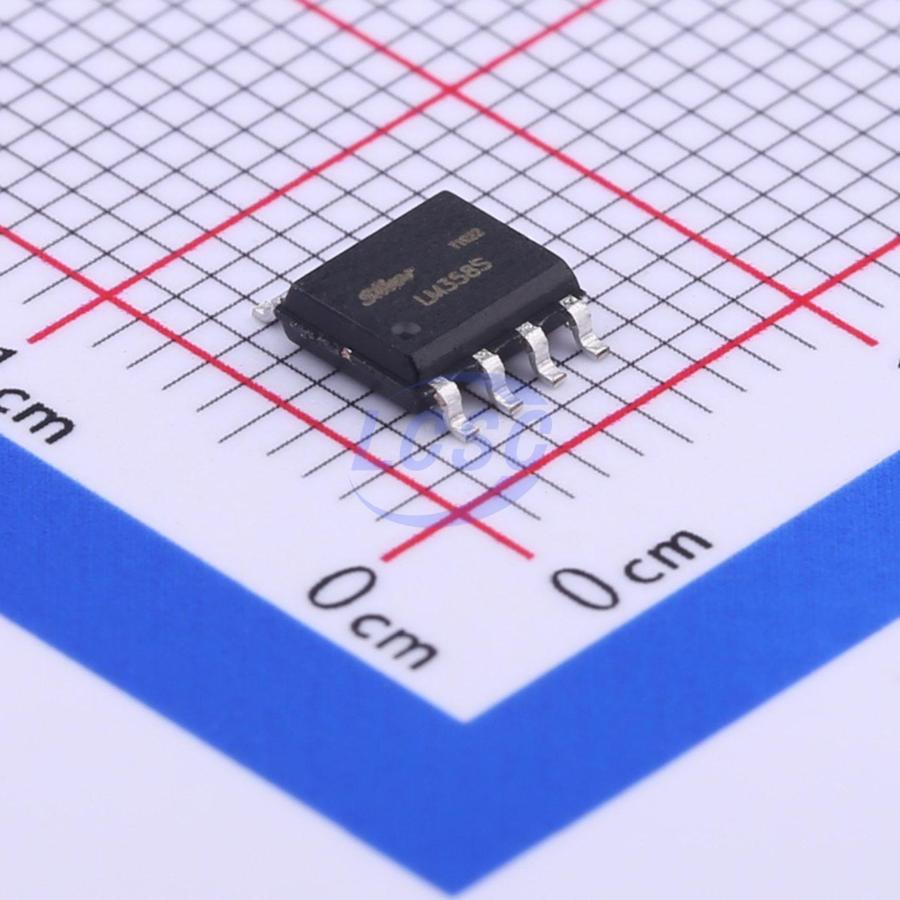

LM358S

The LM358 contains two independent high gain operational amplifiers with internal frequency compensation. The two op-amps operate over a wide voltage range from a single power supply. Also use a split power supply. The device has low power supply current drain, regardless of the power supply voltage. The low power drain also makes the LM358 a good choice for battery operation. When your project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply. Use ordinary +5VDC common to practically any digital system or personal computer application, without requiring an extra 15V power supply just to have the interface electronics you need. The LM358 is a versatile, rugged workhorse with a thousand-and-one uses, from amplifying signals from a variety of transducers to dc gain blocks, or any op-amp function.

Key features

• Internally frequency compensated for unity gain
• Large DC voltage gain: 100dB
• Wide power supply range: 3V~32V (or ±1.5V~±16V)
• Input common-mode voltage range includes ground
• Large output voltage swing: 0V DC to VCC - 1.5V DC
• Power drain suitable for battery operation
• Low input offset voltage and offset current
• Differential input voltage range equal to the power supply voltage
