FMDatasheet (PDF)

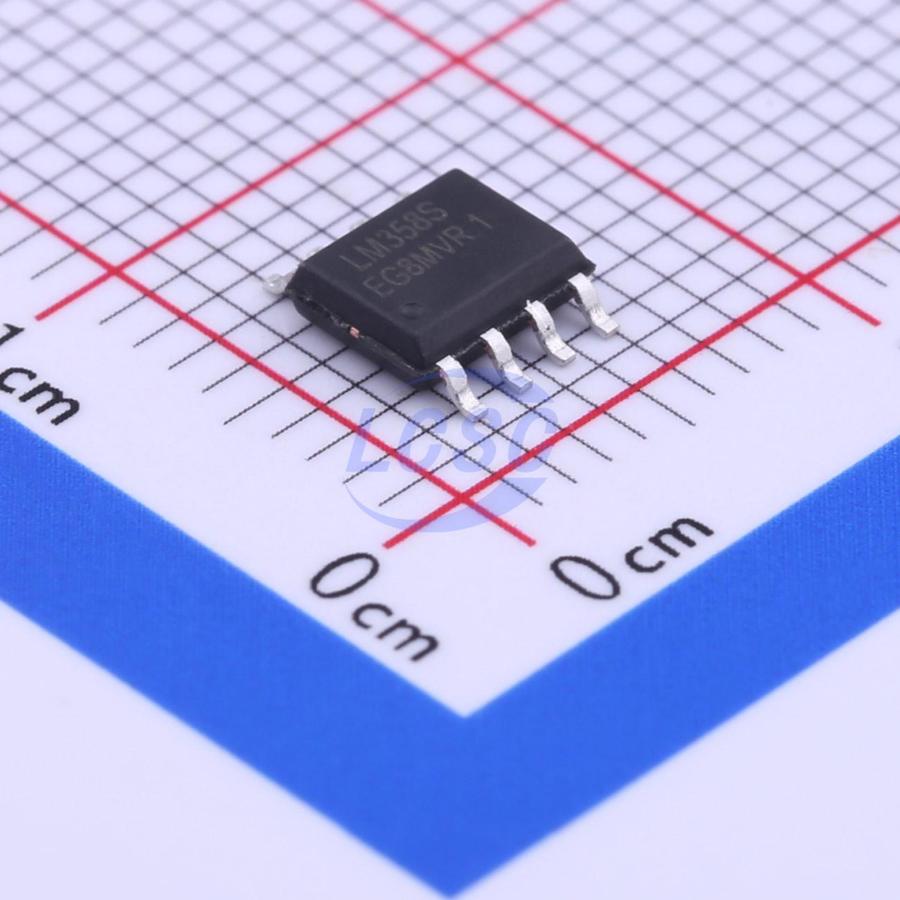

LM358S
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Dual Operational Amplifier
- Manufacturer
- FM
- Manufacturer part #
- LM358S
- Store part #
- C83902
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84,510 in stock
#C83902
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.11 | ₹61.10 |
| 100+ | ₹4.90 | ₹490.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 1,000+ | ₹3.84 | ₹3,840.00 |
| 4,000+ | ₹3.03 | ₹12,120.00 |
| 8,000+ | ₹2.86 | ₹22,880.00 |
10 × ₹6.11
₹61.10
excl. GST
₹72.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358S
₹61.10 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- 1.5V~10V;-10V~-1.5V
- Single Supply
- 3V~20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.177 g
Overview
The LM358 internally comprises two independent, high-gain, internally frequency-compensated dual operational amplifiers. It is suitable for single-supply operation over a wide supply voltage range and is also compatible with dual-supply configurations. Under recommended operating conditions, the supply current is independent of the supply voltage. Its applications include transducer amplifiers, DC gain modules, audio amplifiers, industrial control, DC gain components, and all other application scenarios where op-amps powered by a single supply can be utilized.
Applications
- Sense amplifier
- DC gain module
- Audio amplifier
- Industrial control
- DC gain component
- Single-supply op-amp applications
Key features
- Internal frequency compensation
- Low input bias current
- Low input offset voltage and offset current
- Wide common-mode input voltage range, including ground
- Wide differential input voltage range, equal to supply voltage range
- High DC voltage gain (approximately 100dB)
- Unity-gain bandwidth (approximately 1MHz)
- Wide supply voltage range: single supply (<3V~20V>); dual supply (±1.5V~±10V)
- Low supply current, suitable for battery-powered applications
- Large output voltage swing (Δ(0~VCC - 1.5V))
- Available in SOP-8 and DIP-8 plastic packages
