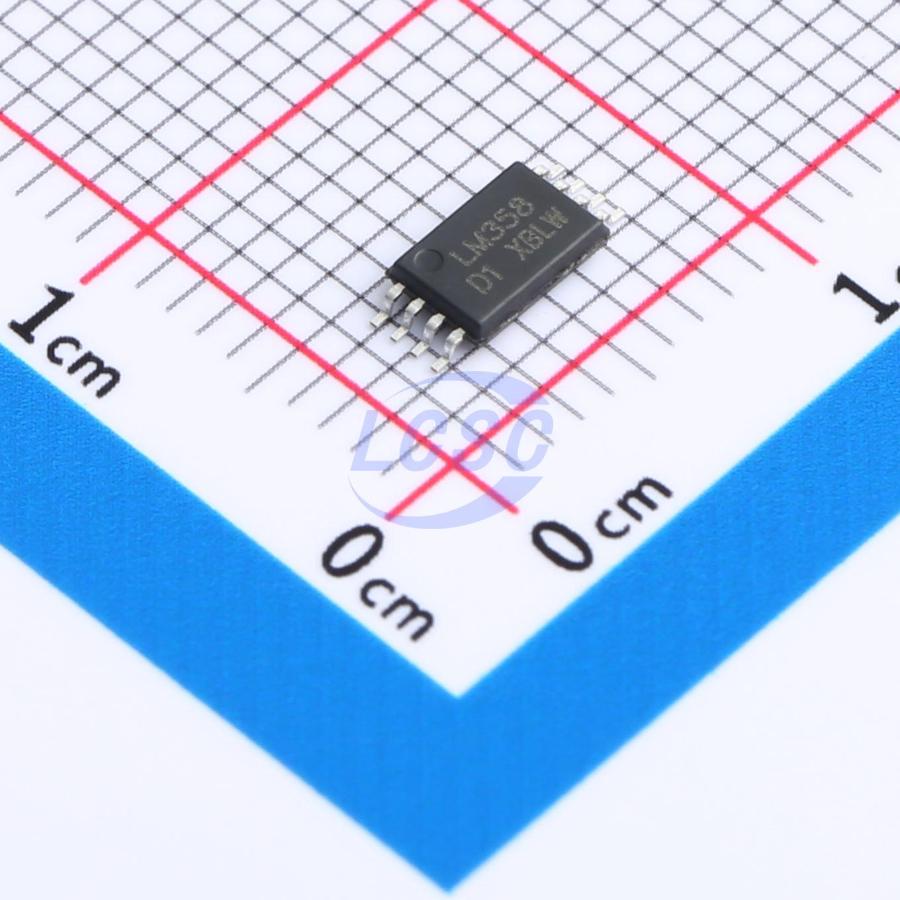

XBLW

LM358TDTR(XBLW)

40mA 2 5mV 90dB 45nA 500uA TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-8ROHS CompliantActive

Low Power Dual Operational Amplifier

Manufacturer: XBLW
Manufacturer part #: LM358TDTR(XBLW)
Store part #: C20612524
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,395 in stock

#C20612524

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.67	₹73.35
50+	₹11.66	₹583.00
150+	₹10.15	₹1,522.50
500+	₹9.02	₹4,510.00
2,500+	₹8.11	₹20,275.00
5,000+	₹7.66	₹38,300.00

Quantity (min 5, multiples of 5)

5 × ₹14.67

₹73.35

excl. GST

₹86.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM358TDTR(XBLW)

₹73.35 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 3nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 500uA
Dual Supply: -12V~-1.5V;1.5V~12V
Single Supply: 3V~24V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.161 g

Overview

LM358 is composed of two independent high- gain operational amplifiers. Can be single- supply work, can also be, is a double- supply work, power consumption current and power supply power, voltage- independent. Applications include audio power amplifier, industrial controls, DC gain components and all conventional operational amplifiers, large circuits.

Applications

Desktop PC and motherboard
Electronic point- of- sale systems
Indoor and outdoor air conditioners
Merchant network and server power supply units
Multi- function printers
Power supplies and mobile chargers
Uninterruptible power supplies
Washers, dryers, and refrigerators
AC inverters, string inverters, central inverters, and voltage frequency drives
Motor control: AC induction, brushed DC, brushless DC, high- voltage, low- voltage, permanent magnet, and stepper motor

Key features

Wide power supply range: Single supply: 3V to 24V or dual supplies: ±1.5V to ±12V
Wide frequency range
Low power consumption
Logic circuit matching
Contains two operational amplifier
