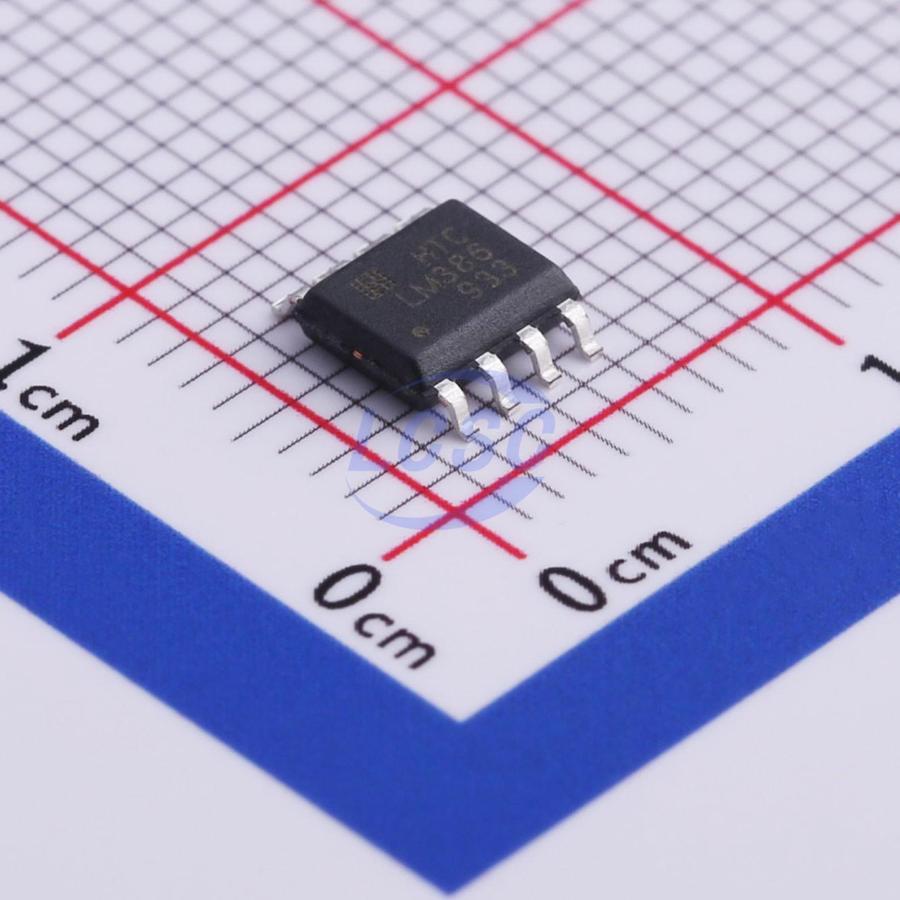

LM386D
4V~12V 4mA 1-Channel SOP-8 Audio Amplifiers RoHS
Low Voltage Audio Power Amplifier
- Manufacturer
- HTC
- Manufacturer part #
- LM386D
- Store part #
- C510560
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,785 in stock
#C510560
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.84 | ₹139.20 |
| 50+ | ₹22.53 | ₹1,126.50 |
| 150+ | ₹20.26 | ₹3,039.00 |
| 500+ | ₹17.41 | ₹8,705.00 |
| 2,500+ | ₹16.14 | ₹40,350.00 |
| 5,000+ | ₹15.39 | ₹76,950.00 |
5 × ₹27.84
₹139.20
excl. GST
₹164.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM386D
₹139.20 for 5 + GST
Specifications
- Voltage - Supply
- 4V~12V
- Quiescent Current
- 4mA
- Features
- ESD protection
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Operating Temperature
- 0℃~+70℃
- Speaker Channels
- 1-Channel
- Output Power
- 325mWx1@8Ω;700mWx1@8Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6V supply, making the LM386 ideal for battery operation.
Applications
- AM-FM radio amplifier
- Portable tape player amplifiers
- Intercoms
- TV sound systems
- Line drivers
- Ultrasonic drivers
- Small servo drivers
- Power converters
Key features
- Battery operation
- Minimum external parts
- Wide supply voltage range 4V to 12V
- Low quiescent current drain 4mA (Typ.)
- Voltage gains from 20 to 200
- ESD Protection 2kV
- Ground referenced input
- Self-centering output quiescent voltage
- Low distortion
