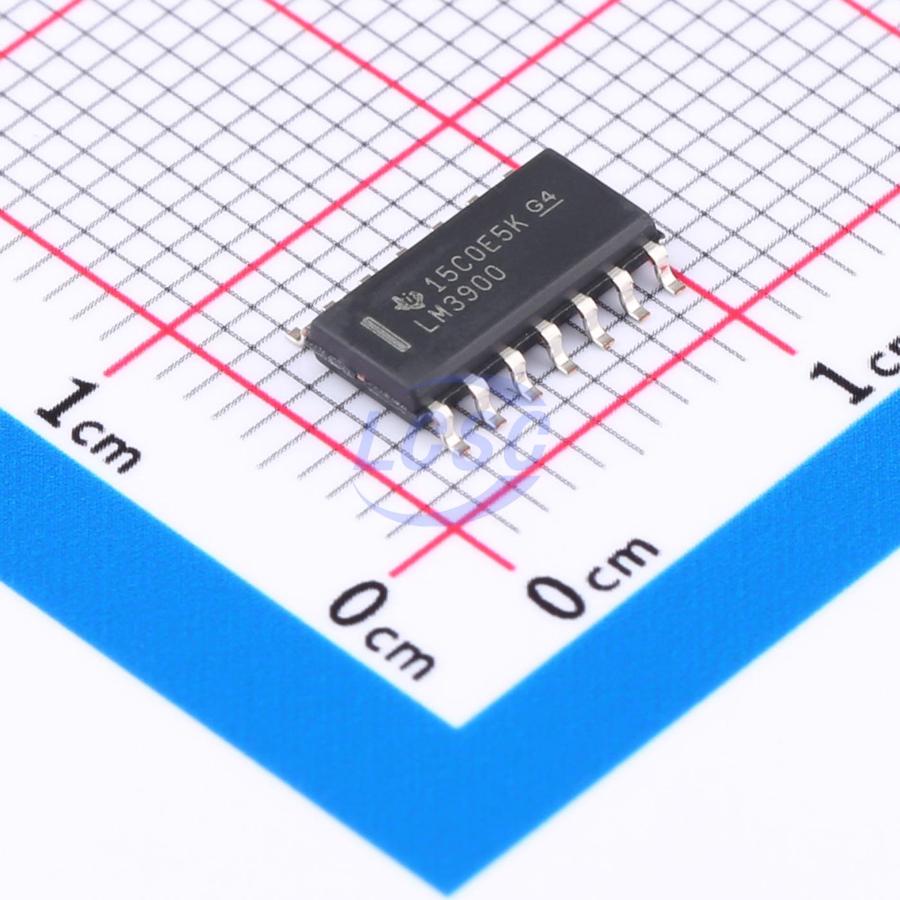

LM3900DR
10mA 4 20V/us 70dB 200nA 6.2mA 2.5MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE NORTON OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- LM3900DR
- Store part #
- C2057902
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,241 in stock
#C2057902
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.70 | ₹57.70 |
| 10+ | ₹48.68 | ₹486.80 |
| 30+ | ₹42.55 | ₹1,276.50 |
| 100+ | ₹37.32 | ₹3,732.00 |
| 500+ | ₹35.70 | ₹17,850.00 |
| 1,000+ | ₹34.62 | ₹34,620.00 |
1 × ₹57.70
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM3900DR
₹57.70 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 4
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 10mA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 200nA
- Quiescent Current
- 6.2mA
- Gain Bandwidth Product
- 2.5MHz
- Features
- Built-in compensation
- Dual Supply
- -16V~-2.2V;2.2V~16V
- Single Supply
- 4.5V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
These devices consist of four independent, high-gain frequency-compensated Norton operational amplifiers that were designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible. The low supply current drain is essentially independent of the magnitude of the supply voltage. These devices provide wide bandwidth and large output voltage swing. The LM2900 is characterized for operation from -40°C to 85°C, and the LM3900 is characterized for operation from 0°C to 70°C.
Applications
- Norton (or current-differencing) amplifiers can be used in most standard general-purpose operational amplifier applications.
Key features
- Wide Range of Supply Voltages, Single or Dual Supplies
- Wide Bandwidth
- Large Output Voltage Swing
- Output Short-Circuit Protection
- Internal Frequency Compensation
- Low Input Bias Current
- Designed to Be Interchangeable With National Semiconductor LM2900 and LM3900, Respectively
