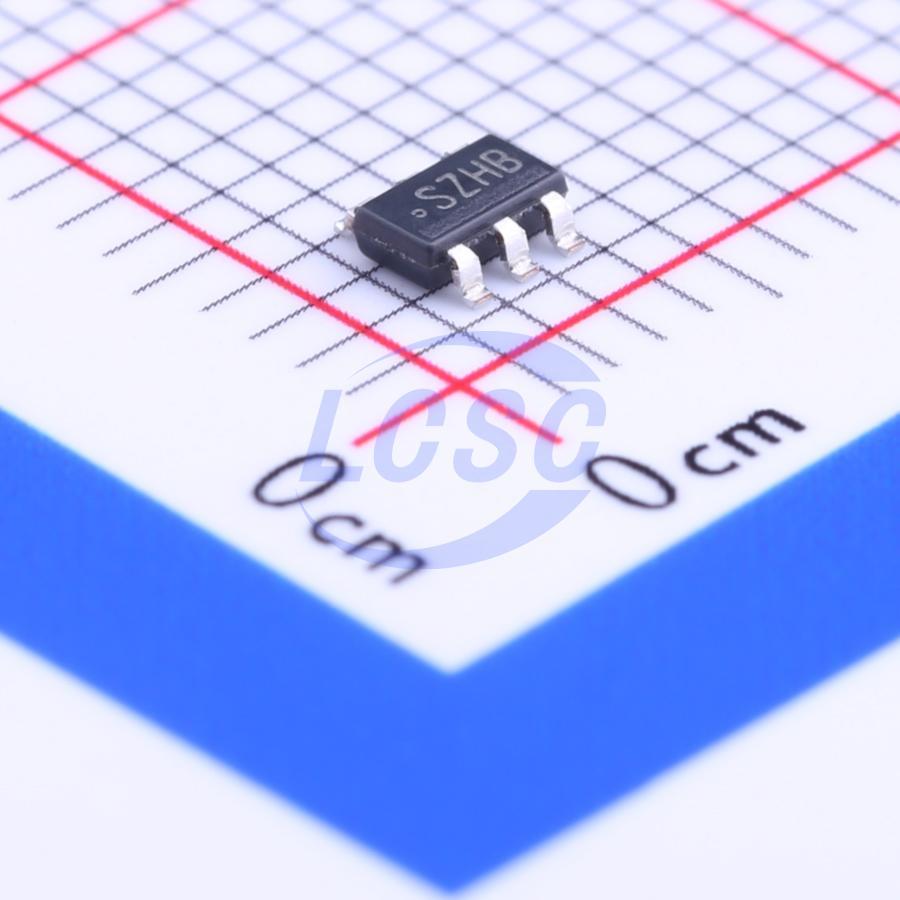

LM5050MK-1/NOPB
22mV 1 2A TSOT-23-6 OR Controllers, Ideal Diodes RoHS
TSOT-23-6ROHS3 CompliantActive
High-Side OR-ing FET Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5050MK-1/NOPB
- Store part #
- C129323
- Package / case
- TSOT-23-6
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,191 in stock
#C129323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.17 | ₹159.17 |
| 10+ | ₹132.47 | ₹1,324.70 |
| 30+ | ₹119.00 | ₹3,570.00 |
| 100+ | ₹102.07 | ₹10,207.00 |
| 500+ | ₹94.25 | ₹47,125.00 |
| 1,000+ | ₹90.12 | ₹90,120.00 |
1 × ₹159.17
₹159.17
excl. GST
₹187.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM5050MK-1/NOPB
₹159.17 for 1 + GST
Specifications
- Quiescent Current
- 100uA
- Operating temperature
- -40℃~+125℃
- FET Type
- External FET
- Voltage - Forward(Vf@If)
- 22mV
- Gate Drive Voltage
- 12V
- Input Voltage (Vin)
- 5V~75V
- Function
- Reverse current blocking;With enable
- Number of Channels
- 1
- Current - Output Low(IOL)
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The LM5050-1/-Q1 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This ORing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops. The LM5050-1/-Q1 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-1/- Q1 can connect power supplies ranging from 5 V to 75 V and can withstand transients up to 100 V.
Applications
- Active OR-ing of Redundant (N+1) Power Supplies
Key features
- Available in Standard and AEC-Q100 Qualified Versions LM5050Q0MK-1 (up to 150°C TJ) and LM5050Q1MK-1 (up to 125°C TJ)
- Wide Operating Input Voltage Range, VIN: 1 V to 75 V (VBIAS required for VIN < 5 V)
- 100-V Transient Capability
- Charge Pump Gate Driver for External N-Channel MOSFET
- Fast 50-ns Response to Current Reversal
- 2-A Peak Gate Turnoff Current
- Minimum VDS Clamp for Faster Turnoff
- Package: SOT-6 (Thin SOT-23-6)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5050MKX-1/NOPB#C473393TI · TSOT-23-6 | TI | TSOT-23-6 | 20,925 | ₹134.71 · 20,925 in stock | View |
| LMX5050MK#C55087226Wuxi Maxinmicro · SOT-23-6 | Wuxi Maxinmicro | SOT-23-6 | 3,079 | ₹73.15 · 3,079 in stock | View | |
