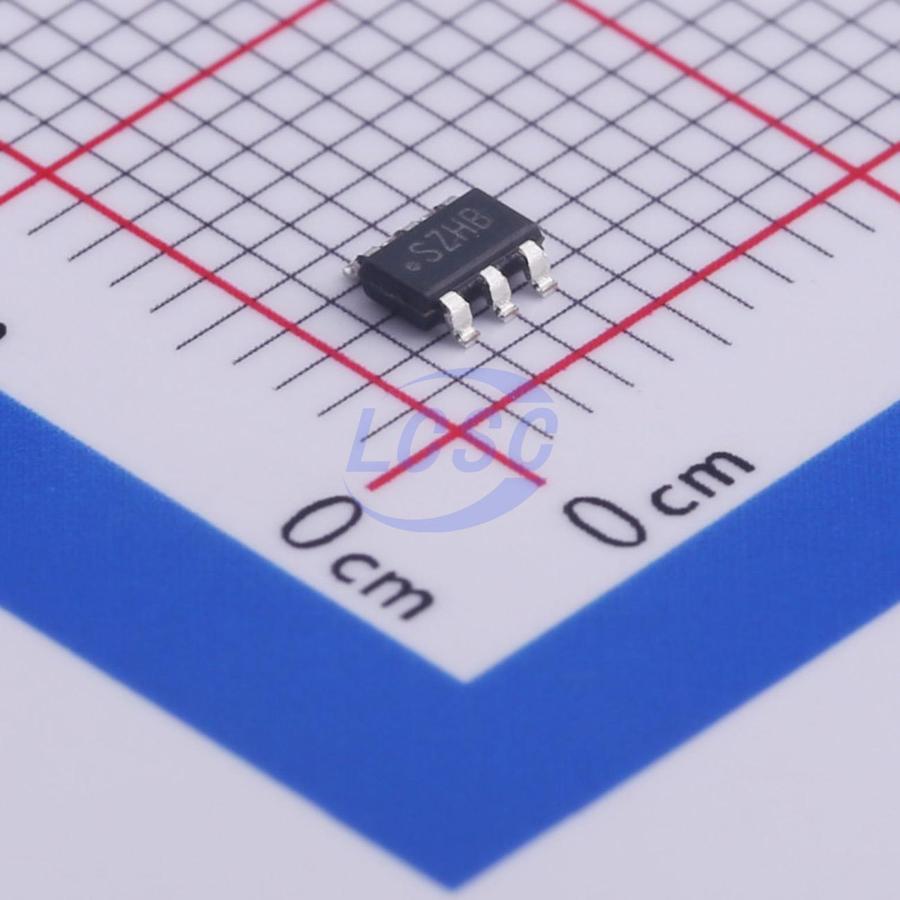

LM5050MKX-1/NOPB
1 2.8A TSOT-23-6 OR Controllers, Ideal Diodes RoHS
TSOT-23-6ROHS3 CompliantActive
High-Side OR-ing FET Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5050MKX-1/NOPB
- Store part #
- C473393
- Package / case
- TSOT-23-6
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,925 in stock
#C473393
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.71 | ₹134.71 |
| 10+ | ₹107.98 | ₹1,079.80 |
| 30+ | ₹94.73 | ₹2,841.90 |
| 100+ | ₹79.95 | ₹7,995.00 |
| 500+ | ₹72.13 | ₹36,065.00 |
| 1,000+ | ₹68.00 | ₹68,000.00 |
1 × ₹134.71
₹134.71
excl. GST
₹158.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM5050MKX-1/NOPB
₹134.71 for 1 + GST
Specifications
- Quiescent Current
- 75uA
- Operating temperature
- -40℃~+125℃
- FET Type
- External FET
- Gate Drive Voltage
- 12V
- Input Voltage (Vin)
- 5V~75V
- Function
- Reverse current blocking;With enable
- Number of Channels
- 1
- Current - Output Low(IOL)
- 2.8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The LM5050-1/-Q1 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This ORing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops. The LM5050-1/-Q1 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-1/- Q1 can connect power supplies ranging from 5 V to 75 V and can withstand transients up to 100 V.
Applications
- Active OR-ing of Redundant (N+1) Power Supplies
Key features
- Available in Standard and AEC-Q100 Qualified Versions LM5050Q0MK-1 (up to 150°C TJ) and LM5050Q1MK-1 (up to 125°C TJ)
- Functional safety capable
- Documentation available to aid functional safety system design
- Wide Operating Input Voltage Range, VIN: 1 V to 75 V (VBIAS required for VIN < 5 V)
- 100-V Transient Capability
- Charge Pump Gate Driver for External N-Channel MOSFET
- Fast 50-ns Response to Current Reversal
- 2-A Peak Gate Turnoff Current
- Minimum VDS Clamp for Faster Turnoff
- Package: SOT-6 (Thin SOT-23-6)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5050MK-1/NOPB#C129323TI · TSOT-23-6 | TI | TSOT-23-6 | 6,191 | ₹159.17 · 6,191 in stock | View |
 | MX5050T#C5341122Wuxi Maxinmicro · SOT-23-6L | Wuxi Maxinmicro | SOT-23-6L | 18,787 | ₹63.81 · 18,787 in stock | View |
| LMX5050MK#C55087226Wuxi Maxinmicro · SOT-23-6 | Wuxi Maxinmicro | SOT-23-6 | 3,079 | ₹73.15 · 3,079 in stock | View | |
