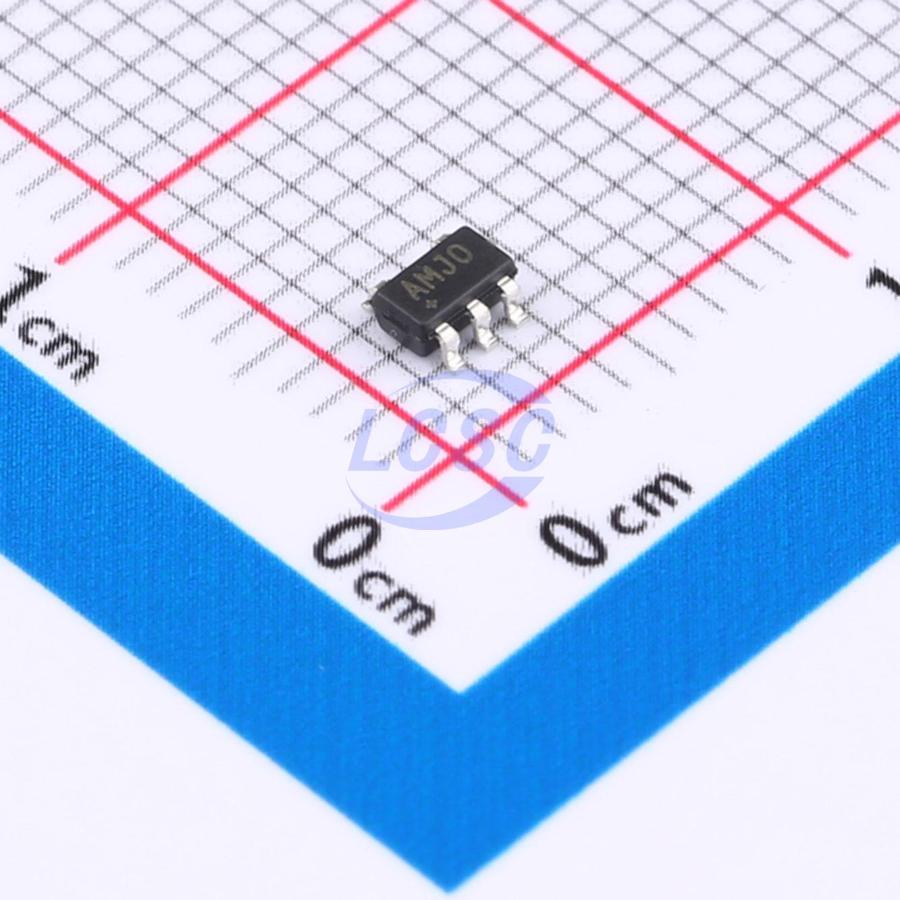

MAX40203AUK+T
200mV 6V 1 SOT-23-5 OR Controllers, Ideal Diodes RoHS
PopularSOT-23-5ROHS3 CompliantActive
Ultra-Tiny nanoPower, 1A Ideal Diodes with Ultra-Low-Voltage Drop
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX40203AUK+T
- Store part #
- C2653639
- Package / case
- SOT-23-5
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,220 in stock
#C2653639
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.29 | ₹89.29 |
| 10+ | ₹72.35 | ₹723.50 |
| 30+ | ₹63.87 | ₹1,916.10 |
| 100+ | ₹55.41 | ₹5,541.00 |
| 500+ | ₹50.41 | ₹25,205.00 |
| 1,000+ | ₹47.80 | ₹47,800.00 |
1 × ₹89.29
₹89.29
excl. GST
₹105.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX40203AUK+T
₹89.29 for 1 + GST
Specifications
- Quiescent Current
- 300nA
- Operating temperature
- -40℃~+125℃
- FET Type
- Integrated FET
- Voltage - Forward(Vf@If)
- 200mV
- Voltage - DC Reverse(Vr)
- 6V
- Input Voltage (Vin)
- 1.2V~5.5V
- Function
- Reverse current blocking;Over temperature protection;With enable
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The MAX40203 is an ideal diode current-switch with forward voltage drop that is approximately an order of magnitude smaller than that of Schottky diodes. When forward biased and enabled, the MAX40203 conducts with 90mV of voltage drop while carrying currents as high as 1A. During a short-circuit or a fast power-up, the device limits its output current to 2A. The MAX40203 thermally protects itself and any downstream circuitry from overcurrent conditions. This ideal diode operates from a supply voltage of 1.2V to 5.5V. The supply current is relatively constant with load current, and is typically 300nA. When disabled (EN = Low), the ideal diode blocks voltages up to 6V in either direction, makes it suitable for use in most low-voltage, portable electronic devices. The MAX40203 is available in a tiny, 0.77mm×0.77mm, 4-bump WLP with a 0.35mm bump pitch and a 5-pin SOT23 package. It is specified over the -40°C to +125°C automotive temperature range.
Applications
- Notebook and Tablet Computers
- Battery Backup Systems
- Powerline Fault Recorders
- Cellular Phones
- Electronic Toys
- USB-Powered Peripherals
- Portable Medical Devices
Key features
- Lower Voltage Drop in Portable Applications
- 14mV Forward Drop at 1mA (WLP)
- 16mV Forward Drop at 100mA (WLP)
- 43mV Forward Drop at 500mA (WLP)
- 90mV Forward Drop at 1A (WLP)
- Longer Battery Life
- Low Leakage When Reverse-Biased from VDD
- 10nA (typ)
- Low Supply Quiescent Current
- 300nA (typ), 500nA (max)
- Smaller Footprint Than Larger Schottky Diodes
- Tiny, 0.77mm x 0.77mm, 4-Bump WLP
- 5-Pin SOT23 Package
- Wide Supply Voltage Range: 1.2V to 5.5V
- Thermally Self-Protecting
- -40°C to +125°C Operating Temperature Range
