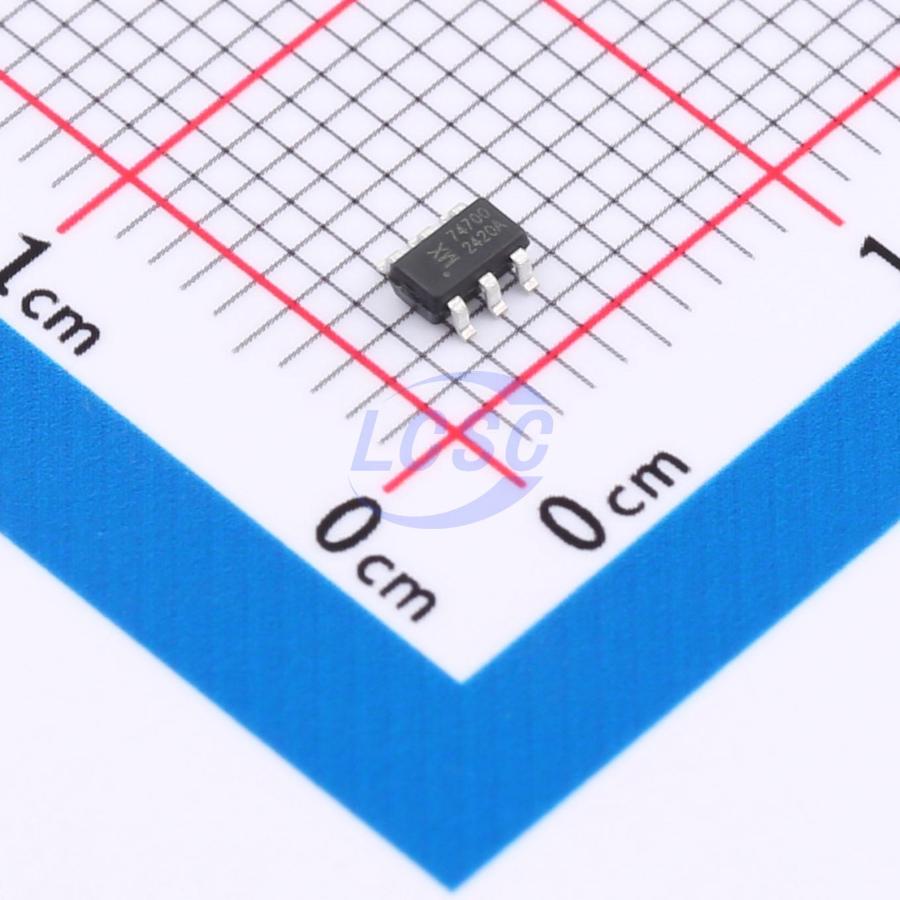

MX74700T
29mV 3mA 100V 2.37A SOT-23-6 OR Controllers, Ideal Diodes RoHS
MX74700T Ideal Diode Rectifier Controller: 3.2V to 100V input range, 20mV forward voltage drop regulation
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX74700T
- Store part #
- C22468156
- Package / case
- SOT-23-6
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,310 in stock
#C22468156
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.71 | ₹72.71 |
| 10+ | ₹55.08 | ₹550.80 |
| 30+ | ₹46.60 | ₹1,398.00 |
| 100+ | ₹38.98 | ₹3,898.00 |
| 500+ | ₹36.14 | ₹18,070.00 |
| 1,000+ | ₹34.83 | ₹34,830.00 |
1 × ₹72.71
₹72.71
excl. GST
₹85.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX74700T
₹72.71 for 1 + GST
Specifications
- Quiescent Current
- 300uA
- Operating temperature
- -40℃~+150℃
- Continuous Current (Imax)
- 2.3A
- FET Type
- External FET
- Voltage - Forward(Vf@If)
- 29mV
- Current - Output High(IOH)
- 3mA
- Voltage - DC Reverse(Vr)
- 100V
- Gate Drive Voltage
- 13V
- Input Voltage (Vin)
- 3.2V~100V
- Function
- Reverse current blocking;Reverse polarity protection;With enable
- Current - Output Low(IOL)
- 2.37A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
MX74700T works with an external N-channel MOSFET as an ideal diode rectifier, achieving low-loss reverse protection with a 20mV forward voltage drop. The wide supply input range of 3.2V to 100V enables control across numerous common DC bus voltages, such as 12V, 24V, and 48V automotive battery systems. The device withstands negative supply voltages as low as -100V and provides load protection. It regulates the forward voltage drop to 20mV by controlling the MOSFET gate. Smooth turn-off is supported when current reverses, ensuring zero DC reverse current. The device responds quickly to reverse current. The MX74700 controller provides a charge pump gate driver for the external N-channel MOSFET. When the enable pin is low, the controller shuts down, consuming approximately 1μA of current.
Applications
- Industrial factory automation - PLC
- Enterprise power supplies
- Active ORing for redundant power supplies
Key features
- 3.2V to 100V input range (3.9V startup)
- -100V reverse voltage rating
- Charge pump for external N-channel MOSFET
- 20mV anode-to-cathode forward voltage drop regulation
- Enable pin feature
- 1.1μA shutdown current (EN = Low)
- 300μA operating quiescent current (EN = High)
- 2.3A peak gate turn-off current
- Fast-response reverse current blocking
- SOT23-6 package
