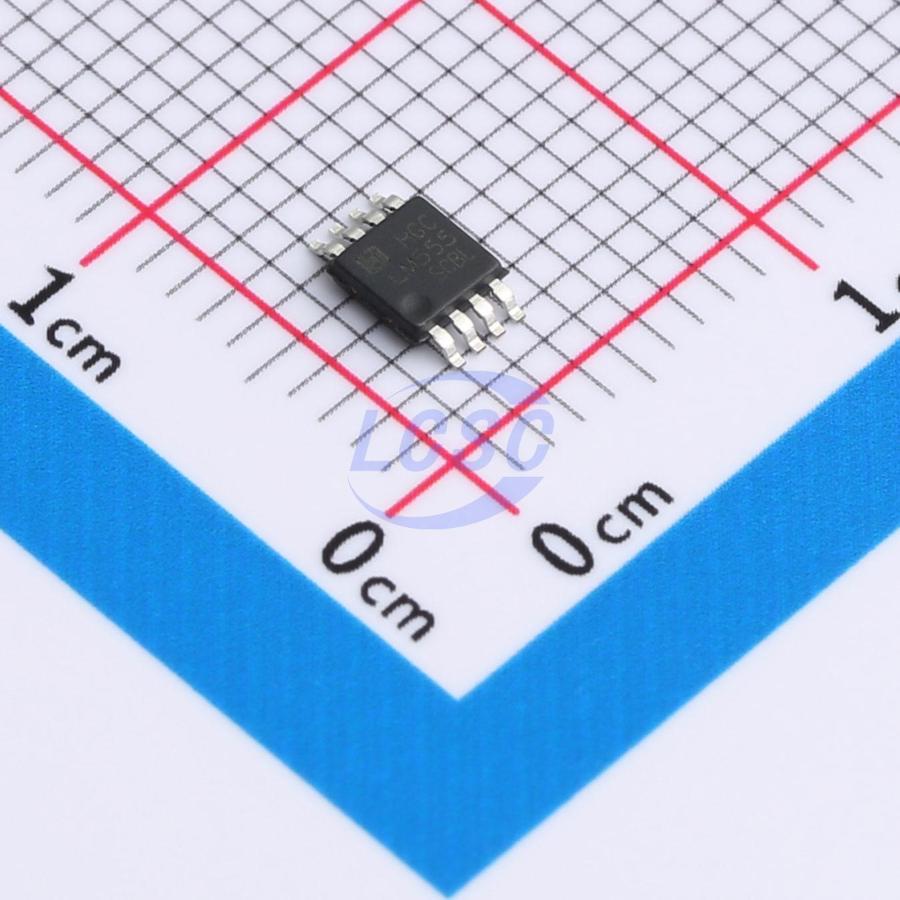

LM555DGKRG
MSOP-8 Programmable Timers and Oscillators RoHS
Bipolar integrated circuit capable of generating high-precision timing pulses
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM555DGKRG
- Store part #
- C19723741
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C19723741
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.33 | ₹93.30 |
| 100+ | ₹7.37 | ₹737.00 |
| 300+ | ₹6.39 | ₹1,917.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.08 | ₹30,480.00 |
| 9,000+ | ₹4.79 | ₹43,110.00 |
10 × ₹9.33
₹93.30
excl. GST
₹110.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM555DGKRG
₹93.30 for 10 + GST
Specifications
- Supply Current
- 1.5mA
- Features
- Reset function;Adjustable duty cycle oscillation;Duty cycle stabilization
- Operating Temperature
- 0℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.188 g
Overview
The LM555 is a bipolar IC capable of generating high-precision timing pulses. It consists of four internal functional blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With a minimal number of external resistors and capacitors, it can be configured as a monostable trigger circuit, PWM circuit, audio oscillator, and more. Widely used in toys, traffic signaling, automation control, and other applications.
Applications
- Audio pulse generator, frequency divider
- Device timing, traffic light control, access control
- Pulse width modulation, pulse phase modulation
- Industrial control
Key features
- High timing accuracy
- Strong output drive capability
- Excellent temperature stability
- Maximum operating frequency exceeds 500KHz
- TTL-compatible
- Package types: SOP-8, DIP-8, MSOP-8
- Timing range from microseconds to hours (precisely controlled via external resistor-capacitor components)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLC555DGKRG#C19723744HANSCHIP semiconductor · MSOP-8 | HANSCHIP semiconductor | MSOP-8 | 2,745 | ₹19.51 · 2,745 in stock | View |
