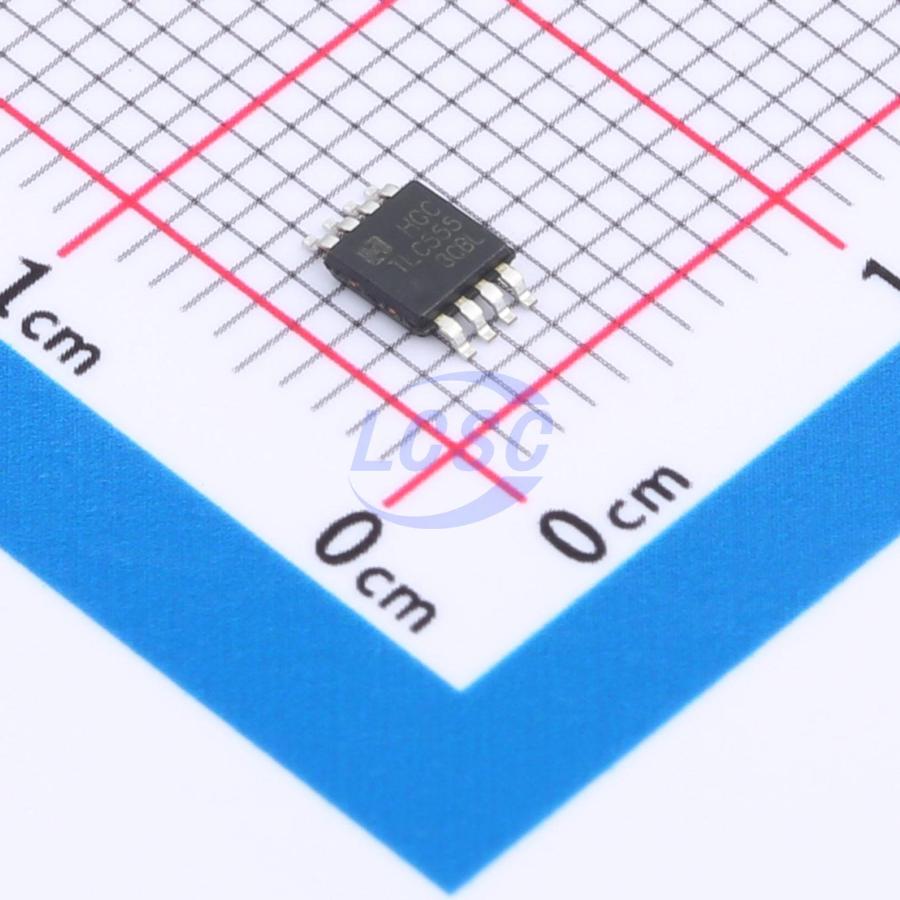

TLC555DGKRG
MSOP-8 Programmable Timers and Oscillators RoHS
CMOS general purpose timer
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- TLC555DGKRG
- Store part #
- C19723744
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C19723744
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.51 | ₹97.55 |
| 50+ | ₹15.14 | ₹757.00 |
| 150+ | ₹13.27 | ₹1,990.50 |
| 500+ | ₹10.93 | ₹5,465.00 |
| 3,000+ | ₹9.88 | ₹29,640.00 |
| 6,000+ | ₹9.26 | ₹55,560.00 |
5 × ₹19.51
₹97.55
excl. GST
₹115.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLC555DGKRG
₹97.55 for 5 + GST
Specifications
- Features
- Adjustable duty cycle oscillation;Reset function
- Operating Temperature
- -40℃~+85℃
- Output Current
- 20mA
- Timer Number
- 1
- Voltage - Supply
- 2V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
The TLC555 is a CMOS RC timer that offers significantly improved performance compared to standard SE/NE555 and 355 timers, while serving as a direct replacement in most applications. Improvements include lower supply current, wider operating supply voltage range, lower threshold, trigger and reset currents, no supply current crowbarring during output transitions, higher frequency performance, and no need to decouple the control voltage for stable operation. Specifically, the TLC555 is a stable controller capable of producing precise time delays or frequencies.
Key features
- Drop-in replacement for SE/NE555 in most applications.
- Low supply current.
- High-speed operation — 500 kHz guaranteed.
- Wide supply voltage range — 2 to 18V.
- Timing range from microseconds to hours.
- Astable and monostable operation.
- Adjustable duty cycle.
- High output source/sink current capability, TTL/CMOS compatible.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM555DGKRG#C19723741HANSCHIP semiconductor · MSOP-8 | HANSCHIP semiconductor | MSOP-8 | 1,310 | ₹9.33 · 1,310 in stock | View |
