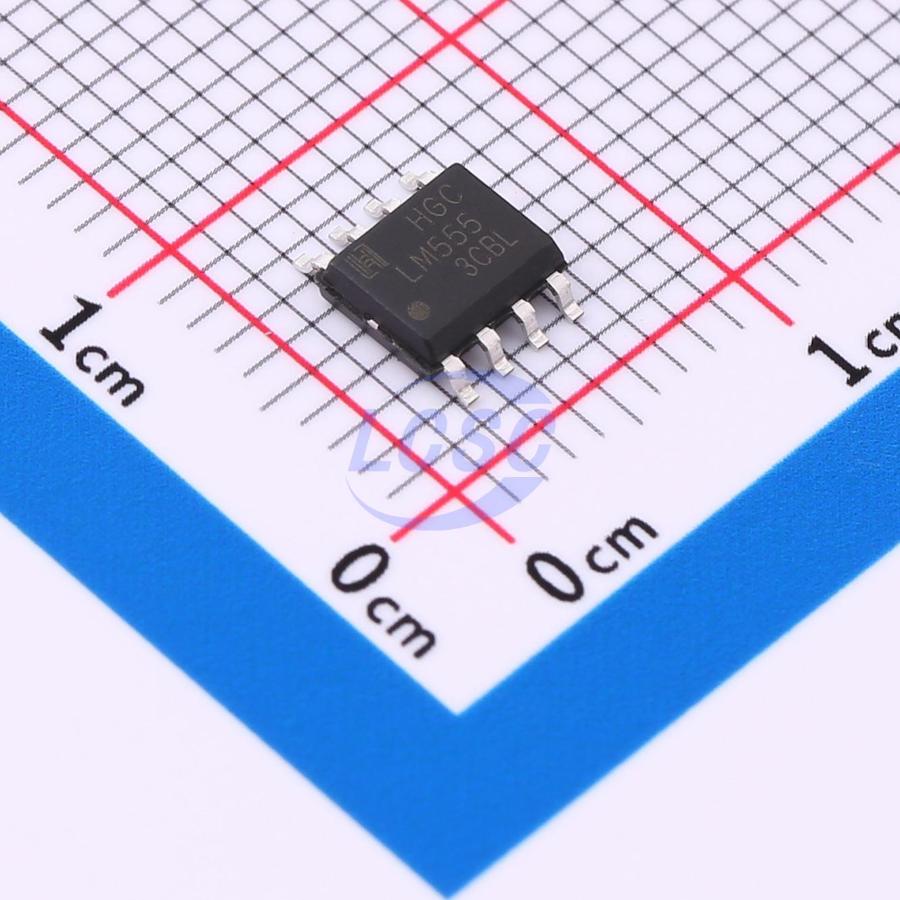

LM555DRG
SOP-8 Programmable Timers and Oscillators RoHS
Bipolar integrated circuit capable of generating high-precision timing pulses
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM555DRG
- Store part #
- C19723740
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C19723740
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.55 | ₹75.50 |
| 100+ | ₹5.99 | ₹599.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 2,500+ | ₹4.63 | ₹11,575.00 |
| 5,000+ | ₹4.17 | ₹20,850.00 |
| 10,000+ | ₹3.93 | ₹39,300.00 |
10 × ₹7.55
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM555DRG
₹75.50 for 10 + GST
Specifications
- Supply Current
- 1.5mA
- Features
- Reset function;Adjustable duty cycle oscillation
- Operating Temperature
- 0℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.209 g
Overview
The LM555 is a bipolar IC capable of generating high-precision timing pulses. It consists of four internal functional blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With a minimal number of external resistors and capacitors, it can be configured as a monostable trigger circuit, PWM circuit, audio oscillator, and more. Widely used in toys, traffic signaling, automation control, and other applications.
Applications
- Audio pulse generator, frequency divider
- Device timing, traffic light control, access control
- Pulse width modulation, pulse phase modulation
- Industrial control
Key features
- High timing accuracy
- Strong output drive capability
- Excellent temperature stability
- Maximum operating frequency exceeds 500KHz
- TTL-compatible
- Package types: SOP-8, DIP-8, MSOP-8
- Timing range from microseconds to hours (precisely controlled via external resistor-capacitor components)
