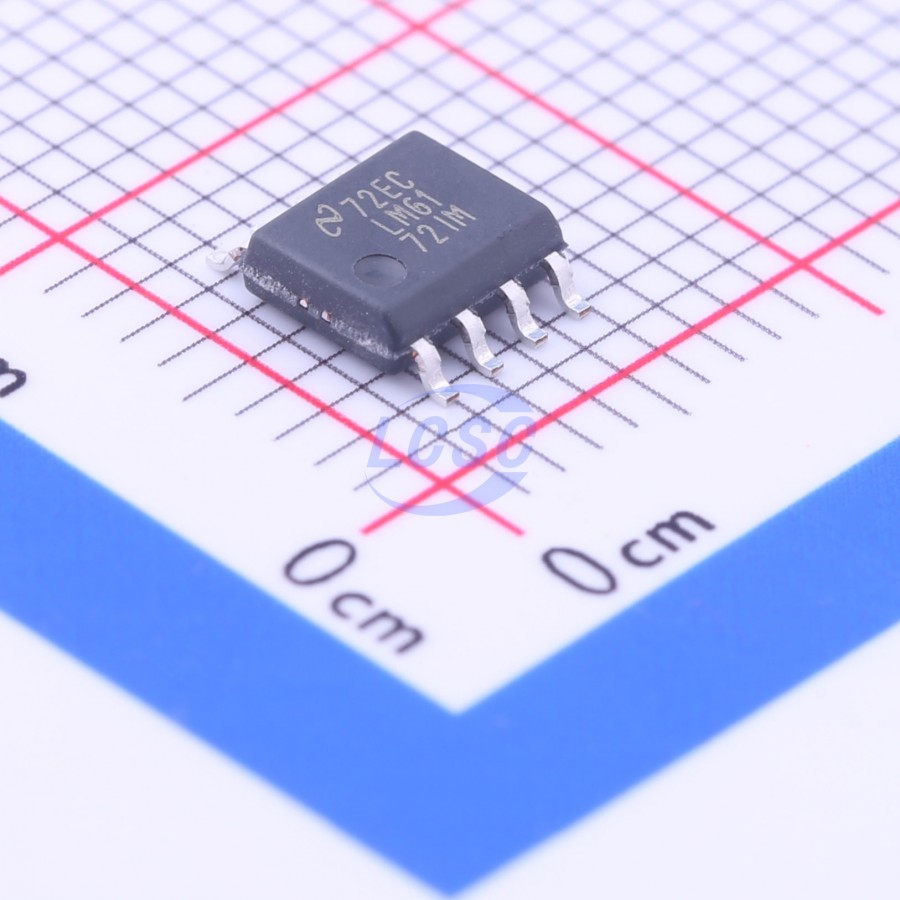

LM6172IMX/NOPB

50mA 2 400uV 3V/ns 110dB 1.2uA 2.3mA 100MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Dual High Speed, Low Power, Voltage Feedback Amplifiers

Manufacturer: TI
Manufacturer part #: LM6172IMX/NOPB
Store part #: C180430
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,167 in stock

#C180430

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹278.17	₹278.17
10+	₹244.36	₹2,443.60
30+	₹220.29	₹6,608.70
100+	₹198.40	₹19,840.00
500+	₹188.42	₹94,210.00
1,000+	₹184.29	₹1,84,290.00

Quantity (min 1)

1 × ₹278.17

₹278.17

excl. GST

₹328.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM6172IMX/NOPB

₹278.17 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 400uV
Slew Rate: 3V/ns
Input Offset Current(Ios): 20nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 1.2uA
Input Offset Voltage Drift(Vos TC): 6uV/℃
Quiescent Current: 2.3mA
Gain Bandwidth Product: 100MHz
Features: Built-in compensation
Input Voltage Noise Density: 12nV/√Hz@1kHz
Dual Supply: -15V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The LM6172 is a dual high speed voltage feedback amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100MHz unity-gain bandwidth, 3000V/μs slew rate and 50mA of output current per channel, the LM6172 offers high performance in dual amplifiers; yet it only consumes 2.3mA of supply current each channel. The LM6172 operates on ±15V power supply for systems requiring large voltage swings, such as ADSL, scanners and ultrasound equipment. It is also specified at ±5V power supply for low voltage applications such as portable video systems. The LM6172 is built with TI's advanced VIP III (Vertically Integrated PNP) complementary bipolar process.

Applications

Scanner I-to-V Converters
ADSL/HDSL Drivers
Multimedia Broadcast Systems
Video Amplifiers
NTSC, PAL and SECAM Systems
ADC/DAC Buffers
Pulse Amplifiers and Peak Detectors

Key features

Easy to Use Voltage Feedback Topology
High Slew Rate 3000V/μs
Wide Unity-Gain Bandwidth 100MHz
Low Supply Current 2.3mA/Channel
High Output Current 50mA/channel
Specified for ±15V and ±5V Operation

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LT1228IS8#PBF#C663208ADI · SO-8	ADI	SO-8	1	₹2,317.91 · 1 in stock	View
THS3062DDA#C2871136TI · SOIC-8-PP	TI	SOIC-8-PP	49	₹4,002.67 · 49 in stock	View
THS3092D#C1347700TI · SOIC-8	TI	SOIC-8	On request	Price on request	Quote
LT1229CS8#PBF#C663210ADI · SO-8	ADI	SO-8	On request	Price on request	Quote
