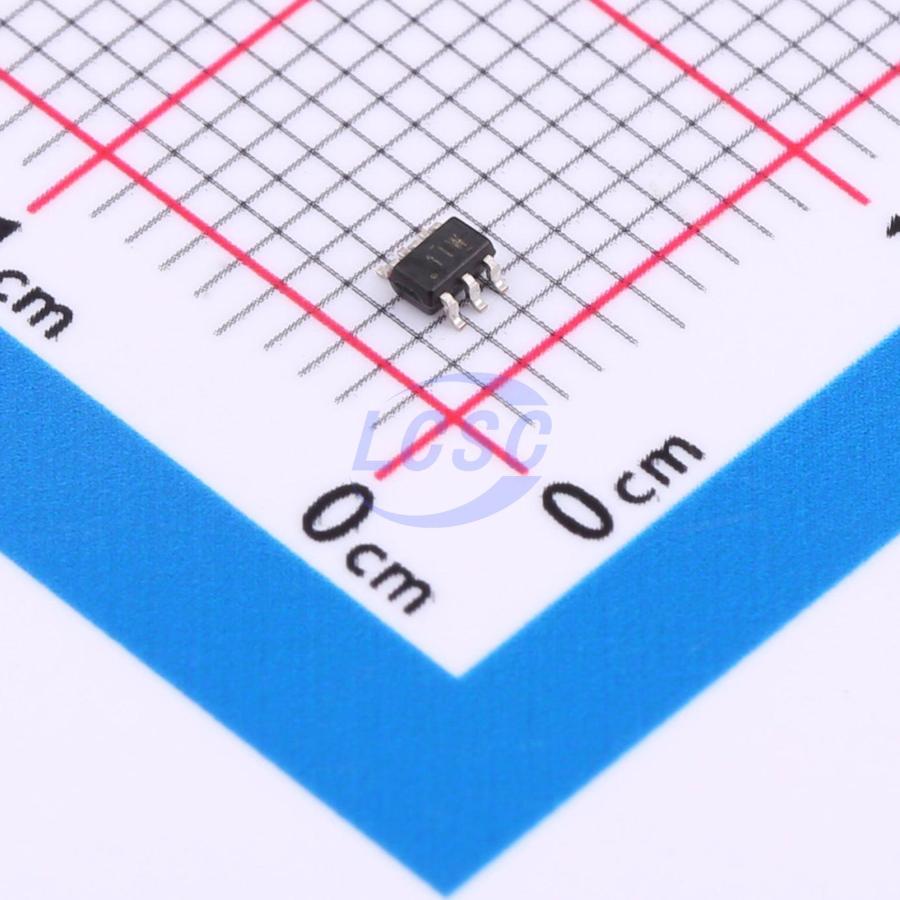

LM66100QDCKRQ1
1.1V 95mΩ 1 SC-70-6 OR Controllers, Ideal Diodes RoHS
SC-70-6ROHS3 CompliantActive
Automotive low-IQ ideal diodes with input polarity protection
- Manufacturer
- TI
- Manufacturer part #
- LM66100QDCKRQ1
- Store part #
- C5219211
- Package / case
- SC-70-6
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,090 in stock
#C5219211
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.74 | ₹218.70 |
| 50+ | ₹34.33 | ₹1,716.50 |
| 150+ | ₹29.74 | ₹4,461.00 |
| 500+ | ₹25.65 | ₹12,825.00 |
| 3,000+ | ₹24.53 | ₹73,590.00 |
| 6,000+ | ₹23.85 | ₹1,43,100.00 |
5 × ₹43.74
₹218.70
excl. GST
₹258.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM66100QDCKRQ1
₹218.70 for 5 + GST
Specifications
- Quiescent Current
- 150nA
- Operating temperature
- -40℃~+150℃
- Continuous Current (Imax)
- 1.5A
- FET Type
- Integrated FET
- Voltage - Forward(Vf@If)
- 1.1V
- RDS(on)
- 95mΩ
- Input Voltage (Vin)
- 1.5V~5.5V
- Function
- Reverse current blocking;Reverse polarity protection;With enable
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The LM66100-Q1 is a single-input single-output (SISO) integrated ideal diode, which is an ideal choice for various applications. This device contains a P-channel MOSFET that can operate within an input voltage range of 1.5V to 5.5V and supports a maximum continuous current of 1.5A. The chip provides support by comparing the voltage of the CE pin with the input voltage. When the voltage of the CE pin is higher than the input voltage, the device is disabled and the MOSFET is turned off. When the voltage of the CE pin is lower, the MOSFET is turned on. The LM66100-Q1 also has a reverse polarity protection (RPP) function, which can protect the device from input wiring errors, such as reverse battery installation. Two LM66100-Q1 devices can be used in an ORing configuration, and the implementation method is similar to that of dual-diode ORing. In this configuration, the device transfers the highest input voltage to the output while blocking reverse current from flowing into the input power supply. These devices can compare the input and output voltages to ensure that the internal voltage comparator successfully blocks the reverse current. The LM66100-Q1 is packaged in a standard SC-70 package and has an operating junction temperature range of -40°C to 150°C.
Applications
- Infotainment systems, instrument clusters, and audio head units
- Automotive instrument cluster displays
- ADAS surround-view system ECU
- Body control modules and gateways
Key features
- AEC-Q100 qualified for automotive applications
- Device temperature grade 1: -40°C to 125°C ambient operating temperature range
- Wide operating voltage range: 1.5V to 5.5V
- VIN reverse shutdown voltage: –6V absolute maximum
- Maximum continuous current (IMAX): 1.5A
- On-resistance (RON):
- 5V VIN = 79mΩ (typical)
- 3.6V VIN = 91mΩ (typical)
- 1.8V VIN = 141mΩ (typical)
- Chip enable comparator (CE)
- Channel status indicator (ST)
- Low current consumption:
- 3.6V VIN shutdown current (ISD,VIN): 120nA (typical)
- 3.6V VIN quiescent current (IQ,VIN): 150nA (typical)
