HANSCHIP semiconductor

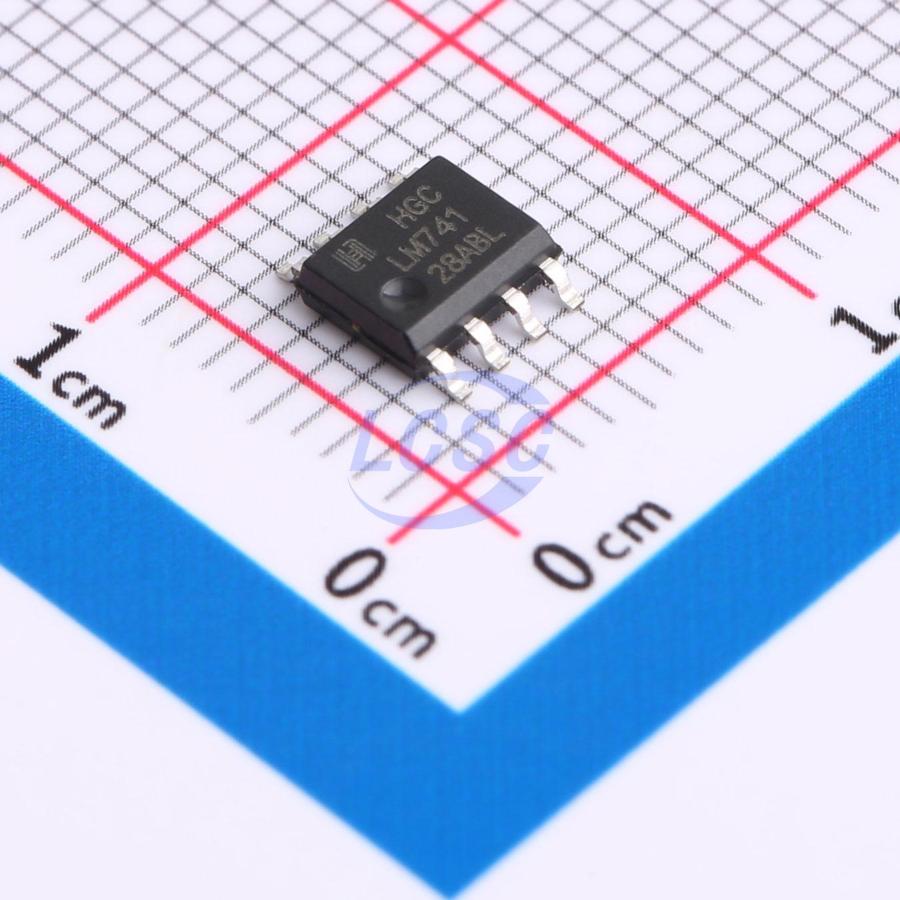

LM741DRG

25mA 1 500V/ms 80nA 90dB 1.7mA SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM741DRG
Store part #: C5145278
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,125 in stock

#C5145278

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.66	₹108.30
50+	₹17.07	₹853.50
150+	₹15.10	₹2,265.00
500+	₹12.63	₹6,315.00
2,500+	₹10.99	₹27,475.00
5,000+	₹10.33	₹51,650.00

Quantity (min 5, multiples of 5)

5 × ₹21.66

₹108.30

excl. GST

₹127.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM741DRG

₹108.30 for 5 + GST

Specifications

Output Current: 25mA
Number of Channels: 1
Slew Rate: 500V/ms
Input Offset Current(Ios): 20nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 80nA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 15uV/℃
Quiescent Current: 1.7mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.21 g

Overview

The LM741 series are general-purpose operational amplifiers with performance superior to industry-standard devices such as the LM709. In most applications, they serve as direct replacements for the 709C, LM201, MC1439, and 748. The amplifier offers several features that make its application virtually foolproof: input and output overload protection, freedom from latch-up when the common-mode range is exceeded, and freedom from oscillations.
