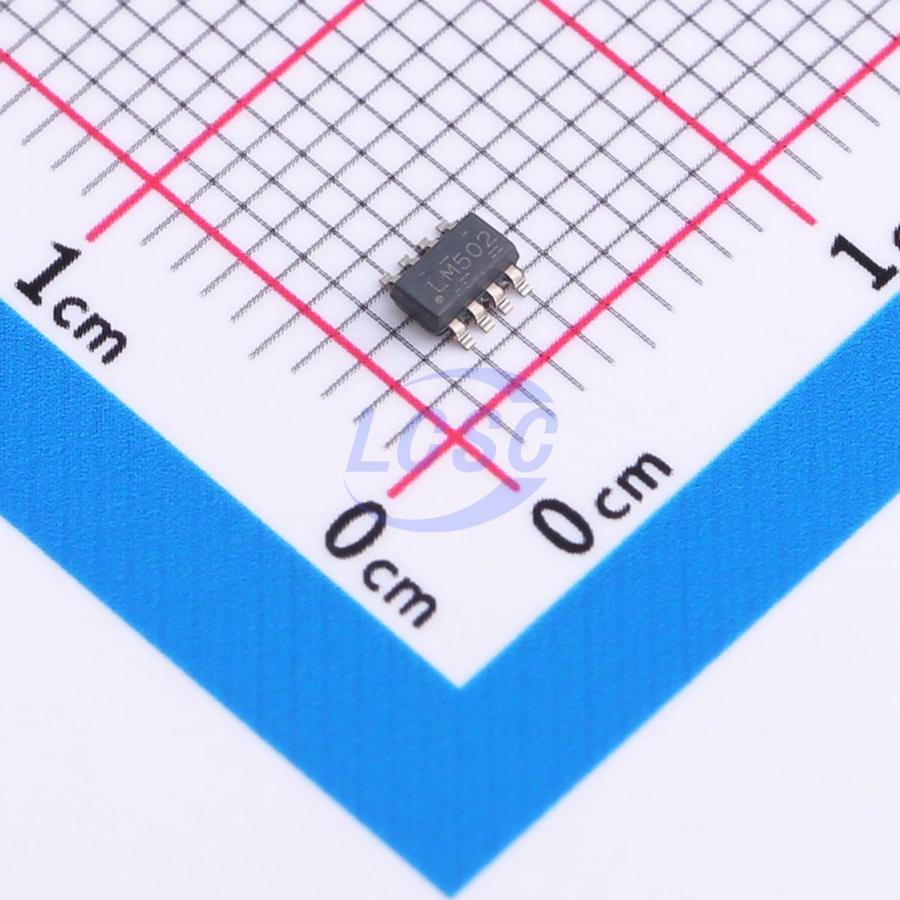

LM74502DDFR
3.2V~65V 2Ω Active High High Side Switch TSOT-23-8 OR Controllers, Ideal Diodes RoHS
TSOT-23-8ROHS3 CompliantActive
Low-IQ high-side switch controller with reverse polarity protection and overvoltage protection functions
- Manufacturer
- TI
- Manufacturer part #
- LM74502DDFR
- Store part #
- C3236215
- Package / case
- TSOT-23-8
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,109 in stock
#C3236215
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.27 | ₹163.27 |
| 10+ | ₹137.68 | ₹1,376.80 |
| 30+ | ₹123.59 | ₹3,707.70 |
| 100+ | ₹107.55 | ₹10,755.00 |
| 500+ | ₹100.61 | ₹50,305.00 |
| 1,000+ | ₹97.36 | ₹97,360.00 |
1 × ₹163.27
₹163.27
excl. GST
₹192.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM74502DDFR
₹163.27 for 1 + GST
Specifications
- Voltage - Supply
- 3.2V~65V
- Operating temperature
- -40℃~+125℃
- RDS(on)
- 2Ω
- Control Input Logic
- Active High
- Function
- Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Integrated charge pump
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The LM74502/LM74502H controllers work in conjunction with externally back-to-back connected N-channel MOSFETs to provide a solution for low-loss reverse polarity protection and load disconnection. The device can also be configured as a load switch with overvoltage protection to drive high-side MOSFETs. The wide supply input range of 3.2V to 65V enables control of many commonly used DC bus voltages (e.g., 12V, 24V, and 48V input systems). The device can withstand and protect the load from negative supply voltages as low as -65V. The LM74502/LM74502H does not have reverse current blocking functionality and is only suitable for input reverse polarity protection. The LM74502 controller provides a charge pump gate drive for external N-channel MOSFETs. When the enable pin is low, the controller turns off and consumes approximately 1μA of current, thus providing low system current when entering sleep mode. The LM74502 and LM74502H also feature programmable overvoltage and undervoltage protection, which can disconnect the load from the input source in the event of a fault. These devices are available in a 2.9mm × 1.6mm 8-pin DDF package and are rated for an operating temperature range of – 40°C to +125°C.
Applications
- Factory automation and control – PLC digital output modules
- Industrial motor drives
- Industrial transportation
- Power supply reverse polarity protection
Key features
- 3.2V to 65V input range (3.9V startup)
- -65V input reverse voltage rating
- Integrated charge pump for driving:
- External back-to-back N-channel MOSFETs
- External high-side switch MOSFETs
- External reverse polarity protection MOSFETs
- Gate driver models:
- LM74502: 60μA peak gate drive source current capability
- LM74502H: 11mA peak gate drive source current capability
- 2.3A peak gate sink current capability
- EN pin features:
- 45μA typical operating quiescent current (EN/UVLO = HIGH)
- 1μA shutdown current (EN/UVLO = LOW)
- Adjustable overvoltage and undervoltage protection
- -40°C to +125°C ambient operating temperature range
- 8-pin SOT-23 package, 2.90mm×1.60mm
