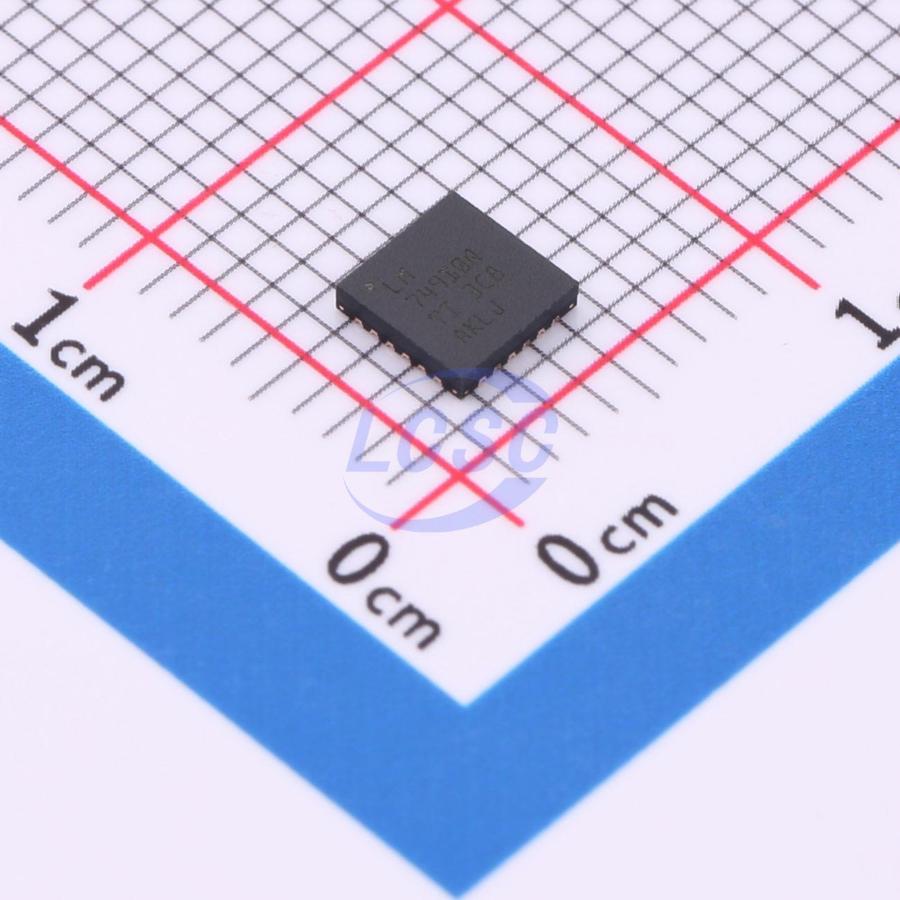

LM74910QRGERQ1

10.5mV 20mA 65V 1 2.6A VQFN-24-EP(4x4) OR Controllers, Ideal Diodes RoHS

VQFN-24-EP(4x4)ROHS3 CompliantActive

Automotive ideal diodes with circuit breaker, undervoltage and overvoltage protection, and fault output functions

Manufacturer: TI
Manufacturer part #: LM74910QRGERQ1
Store part #: C22427891
Package / case: VQFN-24-EP(4x4)
Category: OR Controllers, Ideal Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,982 in stock

#C22427891

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹490.30	₹490.30
10+	₹408.04	₹4,080.40
30+	₹359.21	₹10,776.30
100+	₹309.94	₹30,994.00
500+	₹287.16	₹1,43,580.00
1,000+	₹276.73	₹2,76,730.00

Quantity (min 1)

1 × ₹490.30

₹490.30

excl. GST

₹578.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM74910QRGERQ1

₹490.30 for 1 + GST

Specifications

Quiescent Current: 630uA
Operating temperature: -40℃~+125℃
FET Type: External FET
Voltage - Forward(Vf@If): 10.5mV
Current - Output High(IOH): 20mA
Gate Drive Voltage: 11.5V
Voltage - DC Reverse(Vr): 65V
Input Voltage (Vin): 3V~65V
Function: Reverse current blocking;Reverse polarity protection;Overvoltage lockout;Under-voltage lockout;Short-Circuit Protection;With enable
Number of Channels: 1
Current - Output Low(IOL): 2.6A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.3 g

Overview

The LM749x0-Q1 ideal diode controller drives and controls external back to back N-Channel MOSFETs to emulate an ideal diode rectifier with power path ON/OFF control with overcurrent and overvoltage protection. The wide input supply of 3 V to 65 V allows protection and control of 12-V and 24-V automotive battery powered ECUs. The device can withstand and protect the loads from negative supply voltages down to -65 V. An integrated ideal diode controller (DGATE) drives the first MOSFET to replace a Schottky diode for reverse input protection and output voltage holdup. With a second MOSFET in the power path the device allows load disconnect (ON/OFF control) in case of overcurrent and overvoltage events using HGATE control. The device has integrated current sense amplifier which provides accurate current monitoring with adjustable overcurrent and short circuit thresholds. The device features an adjustable overvoltage cut-off protection feature. The device features a SLEEP mode which enables ultra-low quiescent current consumption (6 μA) and at the same time providing refresh current to the always ON loads when vehicle is in the parking state. The LM749x0-Q1 has a maximum voltage rating of 65 V.

Applications

Automotive battery protection
ADAS domain controller
Infotainment and cluster
Automotive audio: external amplifier
Active ORing for redundant power

Key features

AEC-Q100 qualified for automotive applications – Device temperature grade 1: -40°C to +125°C ambient operating temperature range
Functional Safety-Capable Documentation available to aid functional safety system design
3-V to 65-V input range
Reverse input protection down to -65 V
Drives external back-to-back N-Channel MOSFETs in common drain configuration
Ideal diode operation with 10.5-mV A to C forward voltage drop regulation
Low reverse detection threshold (-10.5 mV) with fast turn off response (0.5 μs)
20-mA peak gate (DGATE) turn on current
2.6-A peak DGATE turnoff current
Adjustable overcurrent and short circuit protection
Analog current monitor output with 10% accuracy (IMON)
Adjustable overvoltage and undervoltage protection
Low 2.5-μA shutdown current (EN = Low)
SLEEP mode with 6-μA current (EN = High, SLEEP = Low)
Meets automotive ISO7637 transient requirements with a suitable TVS diode
Available in space saving 24-Pin VQFN package
