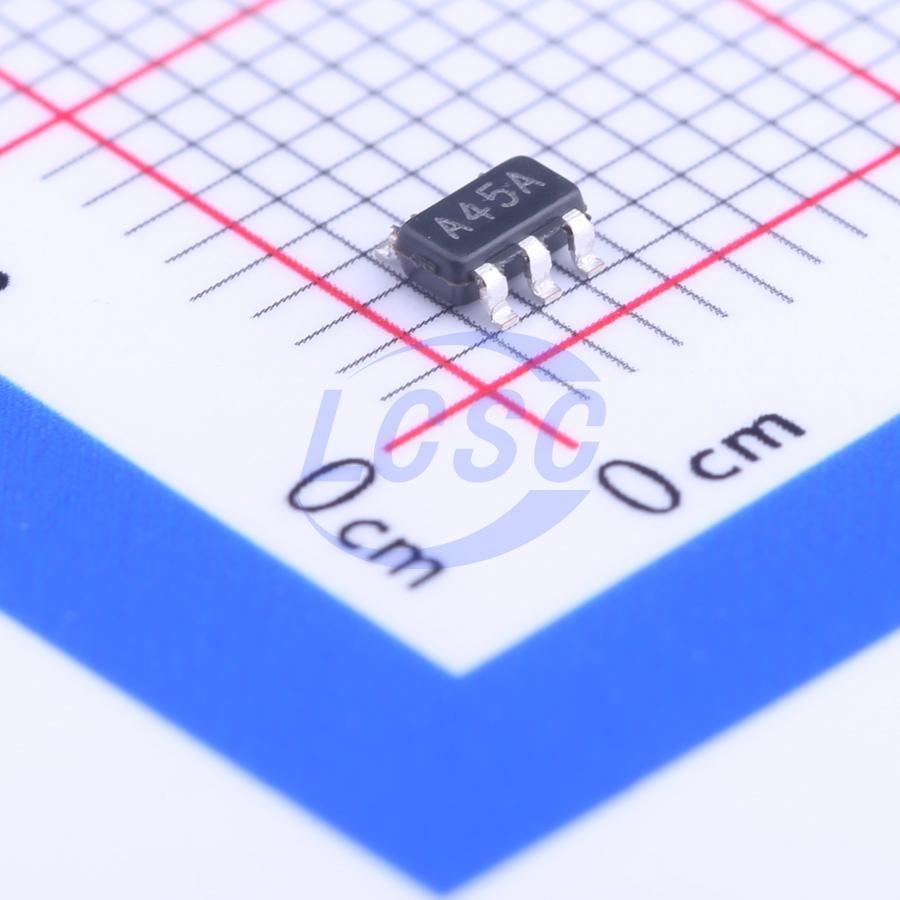

LM8261M5X/NOPB

53mA 1 700uV 12V/us 76dB 1.05uA 21MHz 970uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Single, High Output Current & Unlimited Cap Load Op Amp

Manufacturer: TI
Manufacturer part #: LM8261M5X/NOPB
Store part #: C7968
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,260 in stock

#C7968

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹136.40	₹136.40
10+	₹109.90	₹1,099.00
30+	₹96.66	₹2,899.80
100+	₹83.63	₹8,363.00
500+	₹75.81	₹37,905.00
1,000+	₹71.68	₹71,680.00

Quantity (min 1)

1 × ₹136.40

₹136.40

excl. GST

₹160.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM8261M5X/NOPB

₹136.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 53mA
Number of Channels: 1
Vos - Input Offset Voltage: 700uV
Slew Rate: 12V/us
Input Offset Current(Ios): 250nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1.05uA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 21MHz
Quiescent Current: 970uA
Input Voltage Noise Density: 15nV/√Hz@2kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~30V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The LM8261 is a Rail-to-Rail input and output Op Amp which can operate with a wide supply voltage range. This device has high output current drive, greater than Rail-to-Rail input common mode voltage range, unlimited capacitive load drive capability, and provides tested and guaranteed high speed and slew rate while requiring only 0.97 mA supply current. It is specifically designed to handle the requirements of flat panel TFT panel VCOM driver applications as well as being suitable for other low power, and medium speed applications which require ease of use and enhanced performance over existing devices. Greater than Rail-to-Rail input common mode voltage range with 50dB of Common Mode Rejection, allows high side and low side sensing, among many applications, without having any concerns over exceeding the range and no compromise in accuracy. Exceptionally wide operating supply voltage range of 2.5V to 30V alleviates any concerns over functionality under extreme conditions and offers flexibility of use in multitude of applications. In addition, most device parameters are insensitive to power supply variations; this design enhancement is yet another step in simplifying its usage. The output stage has low distortion (0.05% THD+N) and can supply a respectable amount of current (15mA) with minimal headroom from either rail (300mV). The LM8261 is offered in the space saving SOT23-5 package.

Applications

TFT-LCD flat panel VCOM driver
A/D converter buffer
High side/low side sensing
Headphone amplifier

Key features

ΔVS = 5V, TA = 25°C, Typical values unless specified
GBWP 21MHz
Wide supply voltage range 2.5V to 30V
Slew rate 12V/µs
Supply current 0.97 mA
Cap load limit Unlimited
Output short circuit current +53mA/−75mA
+/−5% Settling time 400ns (500pF, 100mVPP step)
Input common mode voltage 0.3V beyond rails
Input voltage noise 15nV/√Hz
Input current noise 1pA/√Hz
THD+N < 0.05%

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM7321MFX/NOPB#C134033TI · SOT-23-5	TI	SOT-23-5	27,860	₹126.90 · 27,860 in stock	View
	TSB7191AIYLT#C4366982ST · SOT-23-5	ST	SOT-23-5	1	₹748.14 · 1 in stock	View
