UMWDatasheet (PDF)

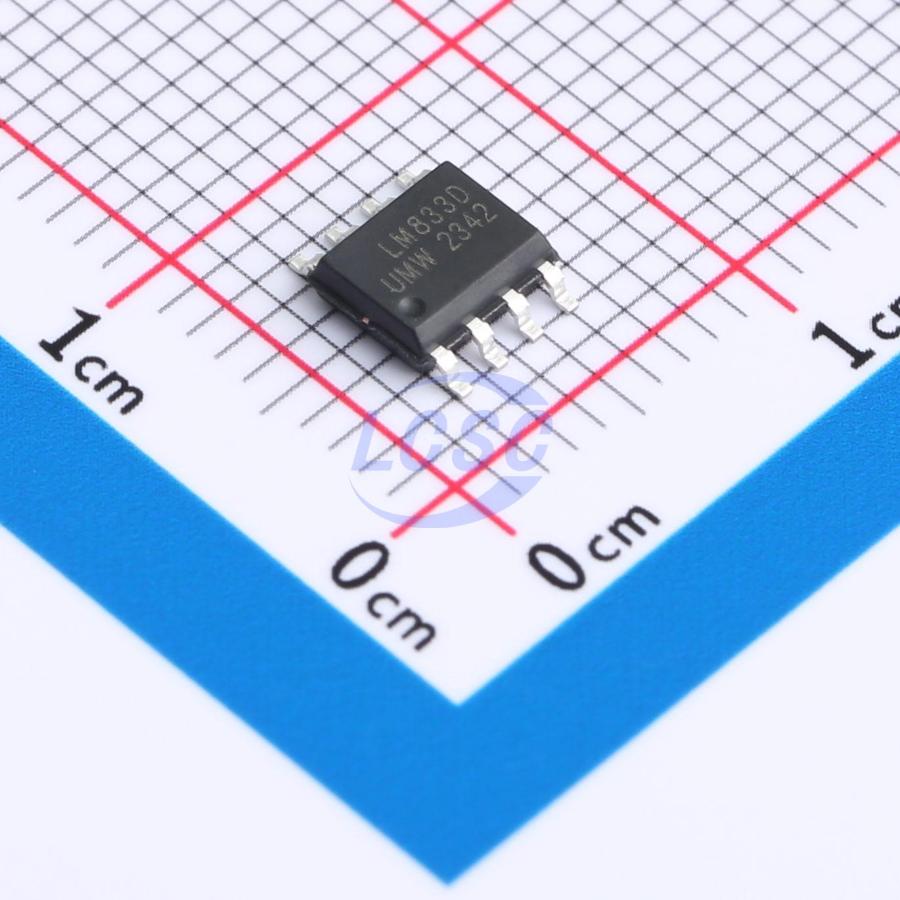

LM833DT(UMW)
2 300uV 7V/us 500nA 100dB 5mA 15MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Dual channel audio operational amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LM833DT(UMW)
- Store part #
- C18212280
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C18212280
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.80 | ₹69.00 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.35 | ₹1,402.50 |
| 500+ | ₹8.24 | ₹4,120.00 |
| 2,500+ | ₹7.36 | ₹18,400.00 |
| 5,000+ | ₹6.91 | ₹34,550.00 |
5 × ₹13.80
₹69.00
excl. GST
₹81.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM833DT(UMW)
₹69.00 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -10℃~+70℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- -15V~-2.5V;2.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
LM833 is a dual audio operational amplifier specifically designed for audio and data signal applications. The device operates over a wide range of single and dual supply voltages, featuring low noise, high gain bandwidth, and high slew rate. It offers low noise voltage, high slew rate, low distortion, and large phase margin. The LM833 is available in DIP8 and SOP8 packages.
Applications
- HiFi audio system equipment
- Pre-amplification and filtering
- Set-top boxes
- Microphone preamplifier circuits
- General-purpose amplifier applications
Key features
- Dual supply voltage: ±15 V
- Low noise voltage: 4.5nV/√Hz
- Low offset voltage: 0.3mV
- Low distortion: 0.002%
- High slew rate: 7V/μs
- High gain bandwidth: 15MHz
- High power bandwidth: 120KHz
- Large phase margin: 60°
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM833MX(UMW)#C18212279UMW · SOP-8 | UMW | SOP-8 | 2,225 | ₹17.36 · 2,225 in stock | View |
