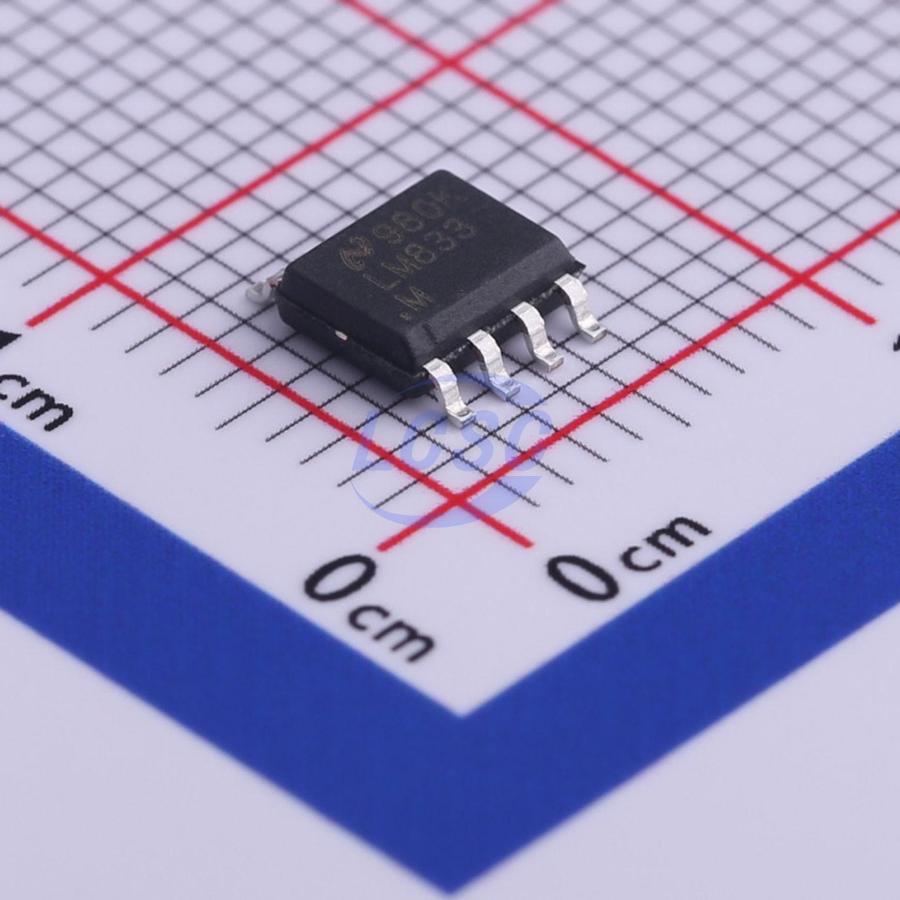

LM833MX/NOPB
5mA 2-Channel SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual Audio Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LM833MX/NOPB
- Store part #
- C473907
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C473907
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.70 | ₹65.70 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹43.37 | ₹4,337.00 |
| 500+ | ₹41.63 | ₹20,815.00 |
| 1,000+ | ₹40.55 | ₹40,550.00 |
1 × ₹65.70
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM833MX/NOPB
₹65.70 for 1 + GST
Specifications
- Quiescent Current
- 5mA
- Total Harmonic Distortion + Noise (THD+N)
- 0.002%
- Speaker Channels
- 2-Channel
- Operating Temperature
- -40℃~+85℃
- Power Supply Rejection Ratio (PSRR)
- 100dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The LM833-N is a dual general purpose operational amplifier designed with particular emphasis on performance in audio systems. This dual amplifier IC utilizes new circuit and processing techniques to deliver low noise, high speed and wide bandwidth without increasing external components or decreasing stability. The LM833-N is internally compensated for all closed loop gains and is therefore optimized for all preamp and high level stages in PCM and HiFi systems. The LM833-N is pin-for-pin compatible with industry standard dual operational amplifiers.
Key features
- Wide Dynamic Range: >±140dB
- Low Input Noise Voltage: 4.5nV/√Hz
- High Slew Rate: 7 V/μs (typ); 5V/μs (Min)
- High Gain Bandwidth: 15MHz (typ); 10MHz (Min)
- Wide Power Bandwidth: 120KHz
- Low Distortion: 0.002%
- Low Offset Voltage: 0.3mv
- Large Phase Margin: 80°
- Available in 8 Pin VSSOP Package
