HGSEMI

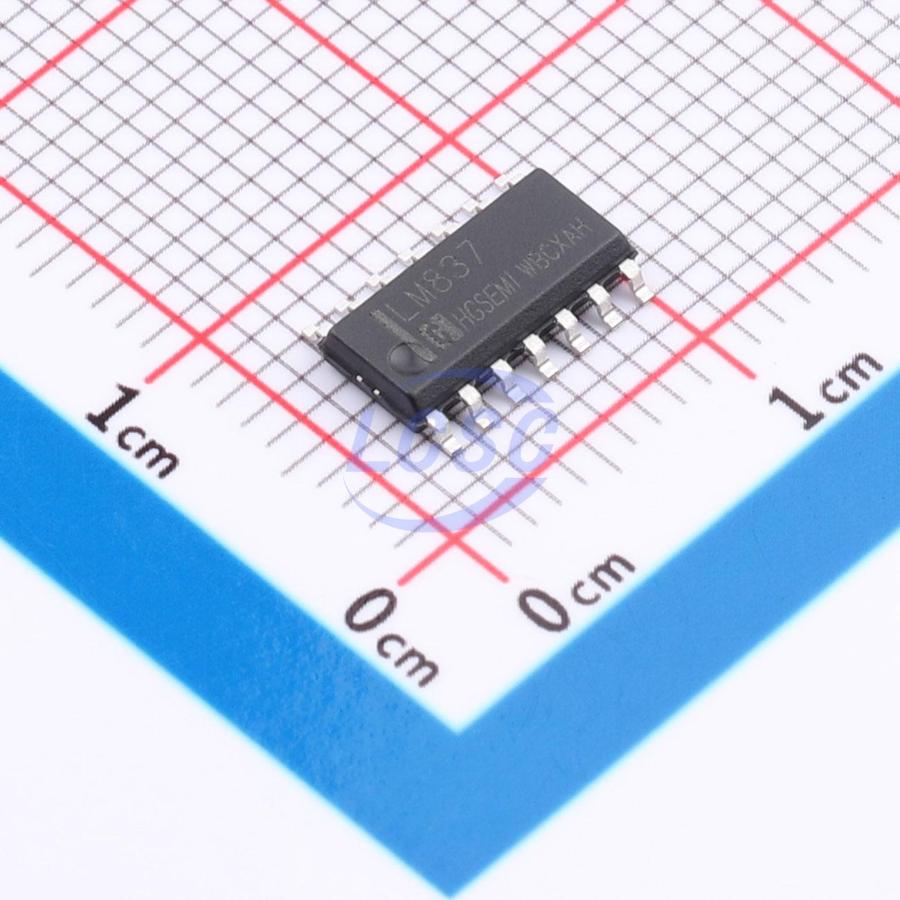

LM837M/TR

4 500uV 5V/us 110dB 100nA 6mA 15MHz SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LM837M/TR
Store part #: C50345922
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,309 in stock

#C50345922

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹35.42	₹35.42
10+	₹30.90	₹309.00
30+	₹28.91	₹867.30
100+	₹26.57	₹2,657.00
500+	₹25.48	₹12,740.00
1,000+	₹24.76	₹24,760.00

Quantity (min 1)

1 × ₹35.42

₹35.42

excl. GST

₹41.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM837M/TR

₹35.42 for 1 + GST

Specifications

Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 5V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 100nA
Quiescent Current: 6mA
Gain Bandwidth Product: 15MHz
Dual Supply: -16V~-2V;2V~16V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.293 g

Overview

LM837 is a quad operational amplifier designed for improved tone control, ideally suited for audio applications. It features low noise, high gain-bandwidth, high output current, and low distortion, making it suitable not only for the acoustic electronics sections of audio preamplifiers and active filters, but also for industrial measurement instruments. At high output current, it is also applicable for headphone amplifiers. In addition, it can be used as a general-purpose portable op-amp operating from a single low-voltage supply with appropriate biasing.

Applications

Audio preamplifier
Active filter
Industrial measurement instrument
Headphone amplifier
Low-voltage single-supply general-purpose op-amp

Key features

Operating Voltage: ±2V ~ ±16V
Low Input Noise Voltage: 0.8μV rms (typical)
Wide Gain Bandwidth Product: 15MHz (typical)
Low Distortion: 0.0005% (typical)
Slew Rate: 5V/μs (typical)
Package: DIP-14, SOP-14, TSSOP-14
Bipolar Technology
