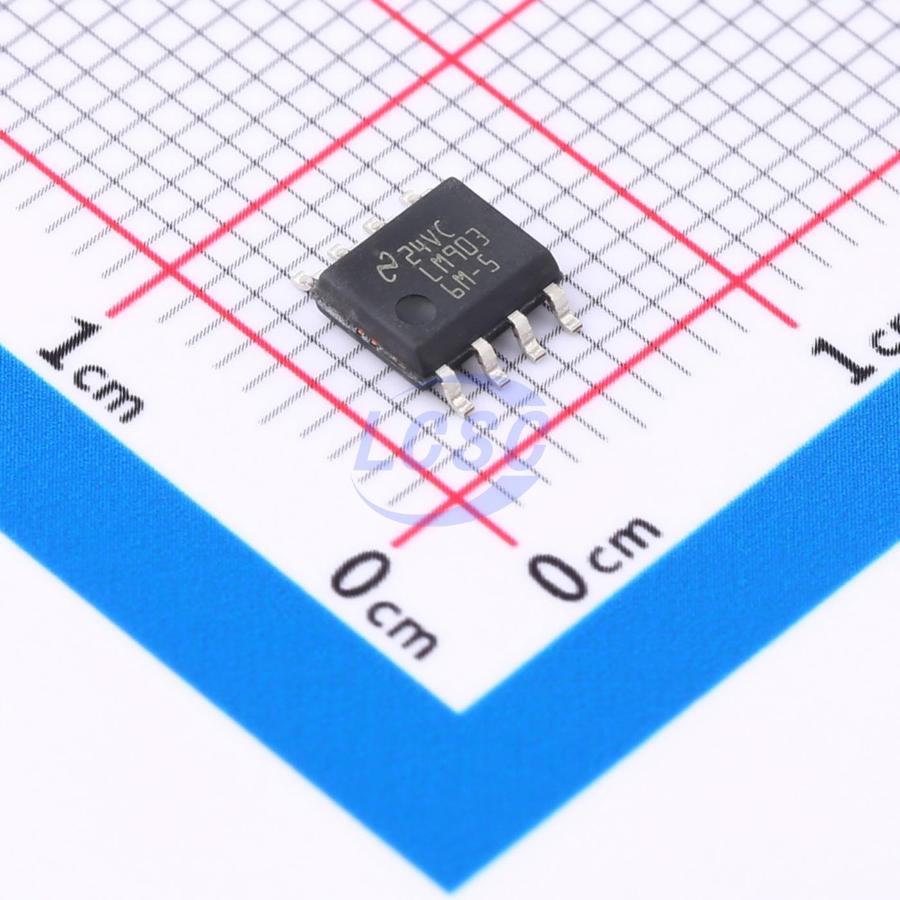

LM9036MX-5.0/NOPB
5V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
50mA, 40V, low IQ, low dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- LM9036MX-5.0/NOPB
- Store part #
- C2871916
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C2871916
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.43 | ₹85.43 |
| 10+ | ₹72.42 | ₹724.20 |
| 30+ | ₹63.32 | ₹1,899.60 |
| 100+ | ₹55.72 | ₹5,572.00 |
| 500+ | ₹53.34 | ₹26,670.00 |
| 1,000+ | ₹51.82 | ₹51,820.00 |
1 × ₹85.43
₹85.43
excl. GST
₹100.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM9036MX-5.0/NOPB
₹85.43 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 50mA
- Features
- Short Circuit Protection;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.128 g
Overview
The LM9036 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25μA Ground Pin current at a 0.1 mA load, the LM9036 is ideally suited for automotive and other battery operated systems. The LM9036 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036 has a 40V maximum operating voltage limit, a -40°C to +125°C operating temperature range, and ±5% output voltage tolerance over the entire output current, input voltage, and temperature range.
Key features
- Ultra low Ground Pin Current (IGND ≤ 25μA for IOUT = 0.1mA)
- Fixed 5V, 3.3V, 50mA Output
- Output Tolerance ±5% Over Line, Load, and Temperature
- Dropout Voltage Typically 200mV @ IOUT = 50mA
- −45V Reverse Transient Protection
- Internal Short Circuit Current Limit
- Internal Thermal Shutdown Protection
- 40V Operating Voltage Limit
