TIDatasheet (PDF)

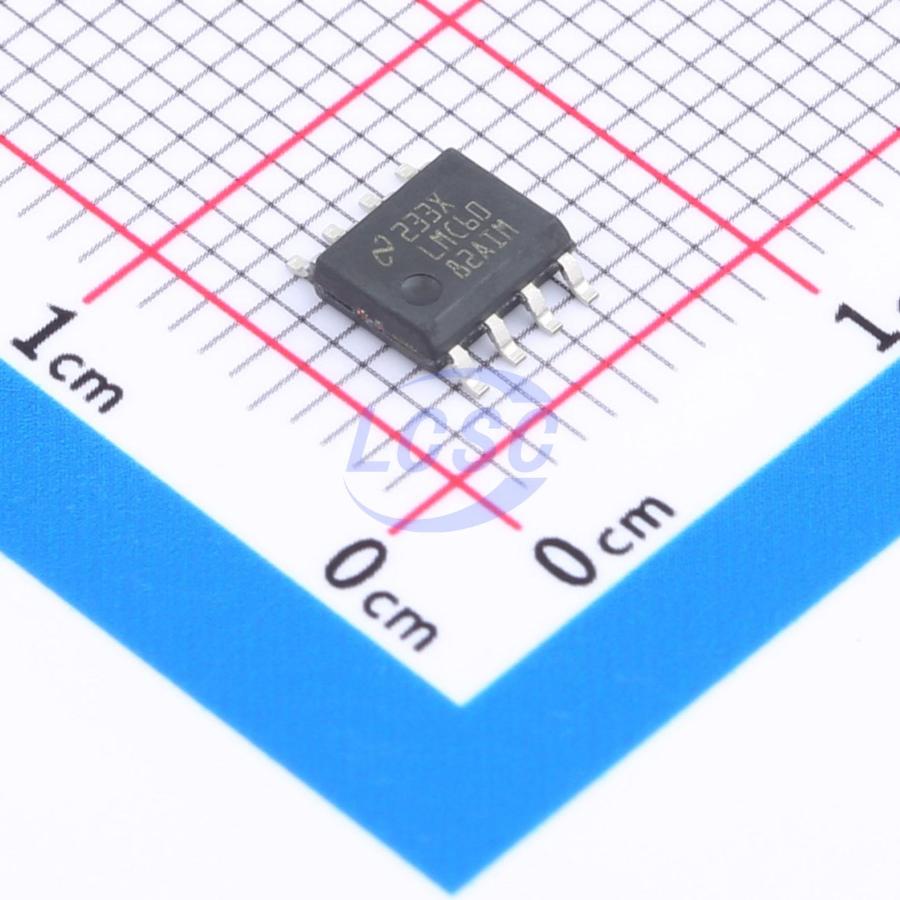

LMC6082AIMX/NOPB
22mA 2 350uV 800V/ms 75dB 10pA Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Precision CMOS Dual Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC6082AIMX/NOPB
- Store part #
- C882779
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,863 in stock
#C882779
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹561.28 | ₹561.28 |
| 10+ | ₹494.17 | ₹4,941.70 |
| 30+ | ₹459.85 | ₹13,795.50 |
| 100+ | ₹414.02 | ₹41,402.00 |
| 500+ | ₹397.51 | ₹1,98,755.00 |
| 1,000+ | ₹390.34 | ₹3,90,340.00 |
1 × ₹561.28
₹561.28
excl. GST
₹662.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMC6082AIMX/NOPB
₹561.28 for 1 + GST
Specifications
- Output Current
- 22mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 350uV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 0.005pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~15.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
The LMC6082 is a precision dual low offset voltage operational amplifier, capable of single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low offset voltage, make the LMC6082 ideally suited for precision circuit applications. Other applications using the LMC6082 include precision full-wave rectifiers, integrators, references, and sample-and-hold circuits. This device is built with TI's advanced Double-Poly Silicon-Gate CMOS process.
Applications
- Instrumentation Amplifier
- Photodiode and Infrared Detector Preamplifier
- Transducer Amplifiers
- Medical Instrumentation
- D/A Converter
- Charge Amplifier for Piezoelectric Transducers
Key features
- Low Offset Voltage: 150 μV
- Operates from 4.5V to 15V Single Supply
- Ultra Low Input Bias Current: 10 fA
- Output Swing to Within 20mV of Supply Rail, 100k Load
- Input Common-Mode Range Includes V−
- High Voltage Gain: 130 dB
- Improved Latchup Immunity
