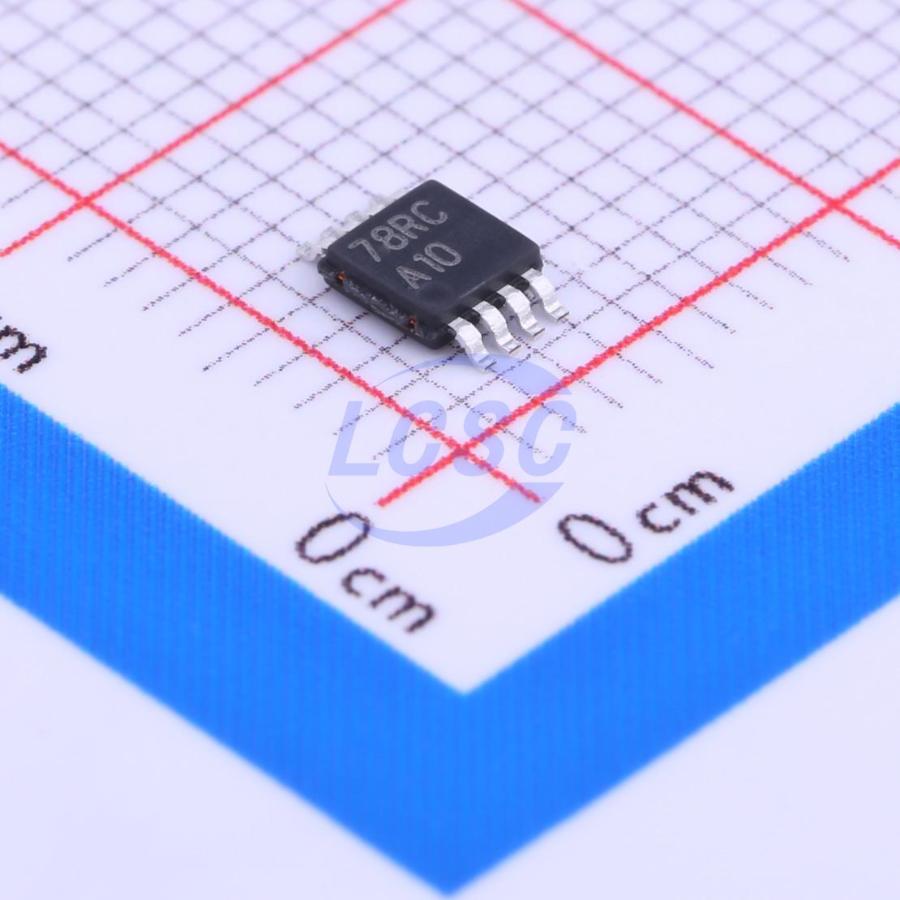

LMC6482IMMX/NOPB

20mA 2 3mV 1.3V/us 82dB 0.02pA 1.4mA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

CMOS Dual Rail-to-Rail Input and Output Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMC6482IMMX/NOPB
Store part #: C80779
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,409 in stock

#C80779

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹127.26	₹127.26
10+	₹102.93	₹1,029.30
30+	₹90.56	₹2,716.80
100+	₹78.40	₹7,840.00
500+	₹66.02	₹33,010.00
1,000+	₹62.33	₹62,330.00

Quantity (min 1)

1 × ₹127.26

₹127.26

excl. GST

₹150.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,500 per reel

LMC6482IMMX/NOPB

₹127.26 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.3V/us
Input Offset Current(Ios): 0.01pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 0.02pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 1.4mA
Gain Bandwidth Product: 1.5MHz
Features: Reverse-phase input protection
Input Voltage Noise Density: 37nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3V~15.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.8 g

Overview

The LMC6482 device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers. The device is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC272 and TLC277. Maximum dynamic signal range is assured in low voltage and single supply systems by the rail-to-rail output swing of the LMC6482. The rail-to-rail output swing is ensured for loads down to 600 Ω of the device. Ensured low-voltage characteristics and low power dissipation make the LMC6482 especially well suited for battery-operated systems. LMC6482 is also available in a VSSOP package, which is almost half the size of a SOIC-8 device.

Applications

Data Acquisition Systems
Transducer Amplifiers
Hand - held Analytic Instruments
Medical Instrumentation
Active Filter, Peak Detector, Sample and Hold, pH Meter, Current Source
Improved Replacement for TLC272, TLC277

Key features

Typical Unless Otherwise Noted Rail-to-Rail Input Common-Mode Voltage Range (Ensured Over Temperature)
Rail-to-Rail Output Swing (Within 20 - mV of Supply Rail, 100 - kΩ Load)
Ensured 3 - V, 5 - V, and 15 - V Performance
Excellent CMRR and PSRR: 82 dB
Ultralow Input Current: 20 fA
High Voltage Gain (RL = 500 Ω): 130 dB
Specified for 2 - kΩ and 600 - Ω Loads
Power - Good Output
Available in VSSOP Package
