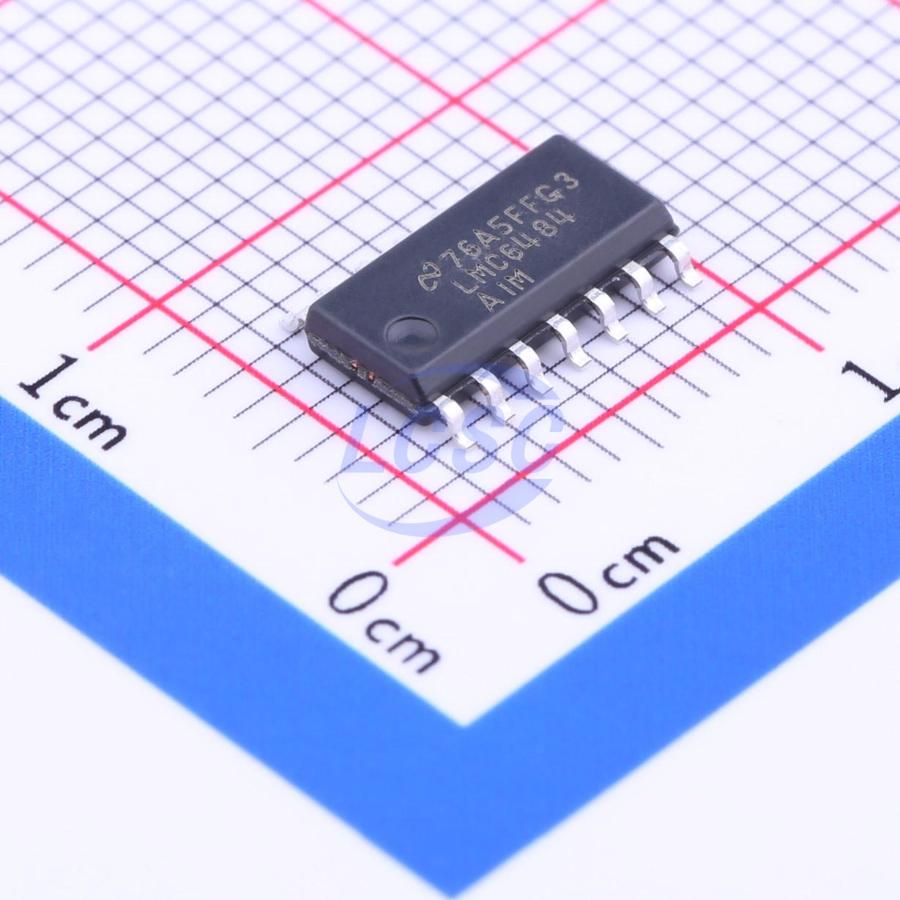

LMC6484AIMX/NOPB

The LMC6484 device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers. It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6484 is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC274 and TLC279. Maximum dynamic signal range is assured in low voltage and single-supply systems by the rail-to-rail output swing of the LMC6484. The rail-to-rail output swing of the LMC6484 is ensured for loads down to 600 Ω. Specified low voltage characteristics and low power dissipation make the LMC6484 especially well-suited for battery-operated systems.

Applications

• Data Acquisition Systems
• Transducer Amplifiers
• Hand-Held Analytic Instruments
• Medical Instrumentation
• Active Filter, Peak Detector, Sample and Hold, pH Meter, Current Source
• Improved Replacement for TLC274, TLC279

Key features

• Rail-to-Rail Input Common-Mode Voltage Range (Specified Over Temperature)
• Rail-to-Rail Output Swing (Within 20 mV of Supply Rail, 100 kΩ Load)
• Assured 3-V, 5-V and 15-V Performance
• Excellent CMRR and PSRR: 82 dB
• Ultra Low Input Current: 20 fA
• High Voltage Gain (RL = 500 kΩ): 130 dB
• Specified for 2 kΩ and 600-Ω Loads
