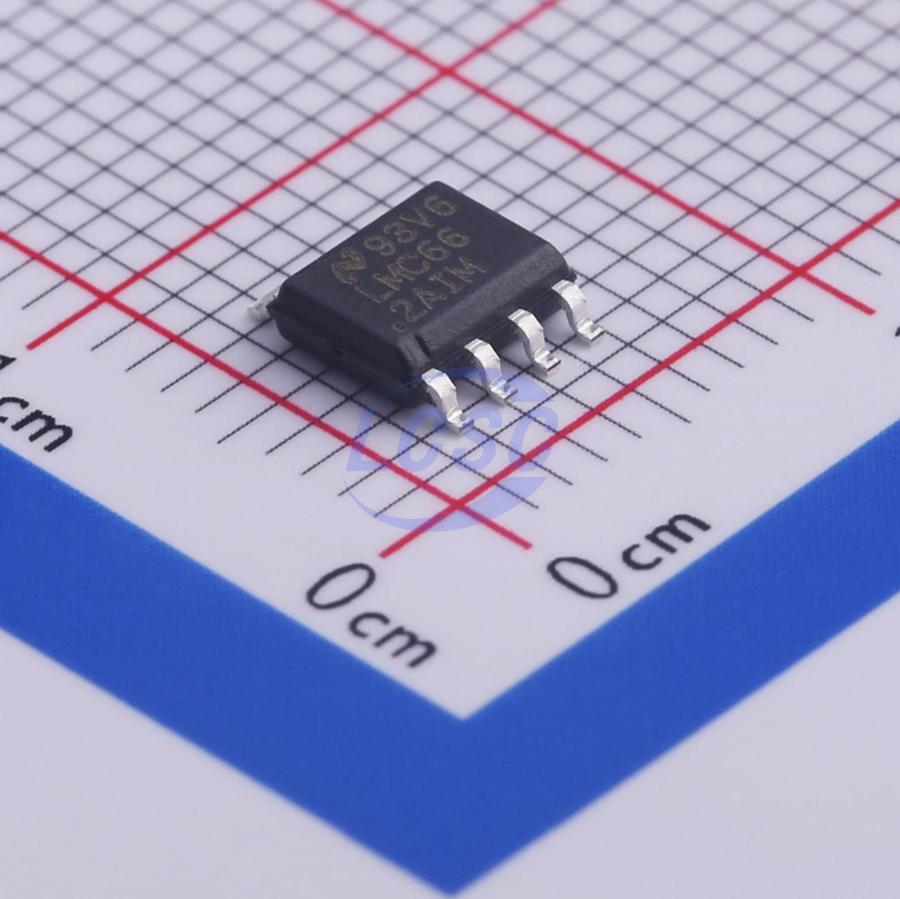

LMC662AIMX/NOPB
16mA 2 3mV 1.1V/us 83dB 4pA 1.3mA 1.4MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
CMOS Dual Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC662AIMX/NOPB
- Store part #
- C473343
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,972 in stock
#C473343
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.09 | ₹241.09 |
| 10+ | ₹203.52 | ₹2,035.20 |
| 30+ | ₹180.06 | ₹5,401.80 |
| 100+ | ₹155.96 | ₹15,596.00 |
| 500+ | ₹145.09 | ₹72,545.00 |
| 1,000+ | ₹140.53 | ₹1,40,530.00 |
1 × ₹241.09
₹241.09
excl. GST
₹284.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMC662AIMX/NOPB
₹241.09 for 1 + GST
Specifications
- Output Current
- 16mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 83dB
- Ib - Input Bias Current
- 4pA
- Input Offset Voltage Drift(Vos TC)
- 1.3uV/℃
- Quiescent Current
- 1.3mA
- Gain Bandwidth Product
- 1.4MHz
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.75V~15.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.111 g
Overview
The LMC662 CMOS Dual operational amplifier is ideal for operation from a single supply. It operates from +5V to +15V and features rail-to-rail output swing in addition to an input common-mode range that includes ground. Performance limitations that have plagued CMOS amplifiers in the past are not a problem with this design. Input VOS, drift, and broadband noise as well as voltage gain into realistic loads (2 kΩ and 600Ω) are all equal to or better than widely accepted bipolar equivalents. This chip is built with TI's advanced Double-Poly Silicon-Gate CMOS process.
Applications
- High-Impedance Buffer or Preamplifier
- Precision Current-to-Voltage Converter
- Long-Term Integrator
- Sample-and-Hold Circuit
- Peak Detector
- Medical Instrumentation
- Industrial Controls
- Automotive Sensors
Key features
- Rail-to-Rail Output Swing
- Specified for 2 kΩ and 600Ω Loads
- High Voltage Gain: 126 dB
- Low Input Offset Voltage: ±3 mV
- Low Offset Voltage Drift: 1.3 μV/°C
- Ultra Low Input Bias Current: 2 fA
- Input Common-Mode Range Includes V−
- Operating Range from +5V to ±15V Supply
- ISS = 400 μA/amplifier; Independent of V+
- Low Distortion: 0.01% at 10 kHz
- Slew Rate: 1.1 V/μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMC662CMX/NOPB#C2057619TI · SOIC-8 | TI | SOIC-8 | 453 | ₹226.37 · 453 in stock | View |
 | LMV822MX/NOPB#C414608TI · SOIC-8 | TI | SOIC-8 | 49 | ₹140.54 · 49 in stock | View |
| MCP632-E/SN#C636319MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3 | ₹314.03 · 3 in stock | View | |
 | LMV722IDR#C41531TI · SOIC-8 | TI | SOIC-8 | 22,870 | ₹138.61 · 22,870 in stock | View |
 | NCV272DR2G#C2902272onsemi · SOIC-8 | onsemi | SOIC-8 | 10 | ₹145.17 · 10 in stock | View |
