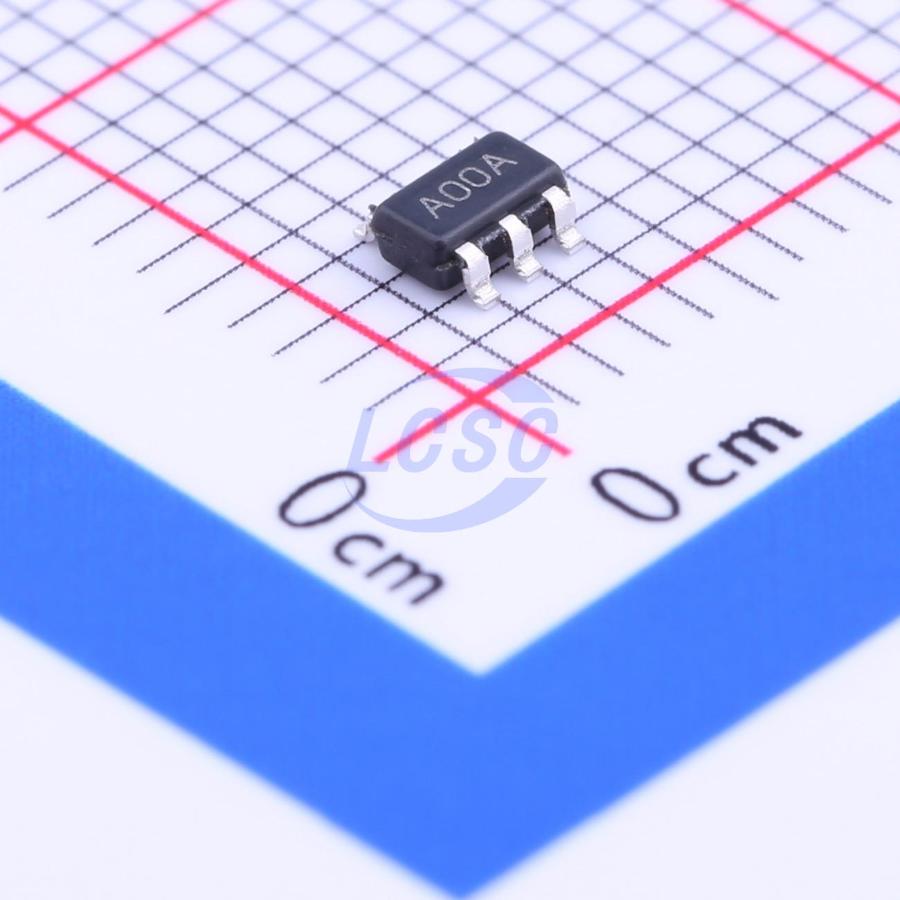

LMC7101AIM5X/NOPB

24mA 1 9mV 1.1V/us 82dB 1nA 810uA 600kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Tiny Low-Power Operational Amplifier With Rail-to-Rail Input and Output

Manufacturer: TI
Manufacturer part #: LMC7101AIM5X/NOPB
Store part #: C80769
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,784 in stock

#C80769

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹102.37	₹102.37
10+	₹82.16	₹821.60
30+	₹72.17	₹2,165.10
100+	₹62.38	₹6,238.00
500+	₹56.29	₹28,145.00
1,000+	₹53.25	₹53,250.00

Quantity (min 1)

1 × ₹102.37

₹102.37

excl. GST

₹120.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMC7101AIM5X/NOPB

₹102.37 for 1 + GST

Specifications

Output Current: 24mA
Number of Channels: 1
Vos - Input Offset Voltage: 9mV
Slew Rate: 1.1V/us
Input Offset Current(Ios): 32pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 1nA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 810uA
Gain Bandwidth Product: 600kHz
Input Voltage Noise Density: 37nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~15.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The LMC7101 device is a high-performance CMOS operational amplifier available in the space-saving 5-pin SOT-23 tiny package. This makes the LMC7101 ideal for space- and weight-critical designs. The performance is similar to a single amplifier of the LMC6482 and LMC6484 types, with rail-to-rail input and output, high open-loop gain, low distortion, and low-supply currents. The main benefits of the tiny package are most apparent in small portable electronic devices, such as mobile phones, pagers, notebook computers, personal digital assistants, and PCMCIA cards. The tiny amplifiers can be placed on a board where they are needed, thus simplifying board layout.

Applications

Mobile Communications
Notebooks and PDAs
Battery Powered Products
Sensor Interface
Automotive Applications (LMC7101Q-Q1)

Key features

Tiny 5-Pin SOT-23 Package Saves Space—Typical Circuit Layouts Take Half the Space of 8-Pin SOIC Designs
Ensured Specifications at 2.7-V, 3-V, 5-V, 15-V Supplies
Typical Supply Current 0.5 mA at 5 V
Typical Total Harmonic Distortion of 0.01% at 5 or 1-MHz Gain Bandwidth
Similar to Popular LMC6482 and LMC6484
Rail-to-Rail Input and Output
Temperature Range -40°C to 125°C (LMC7101Q-Q1)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LMC7101BIM5/NOPB#C80776TI · SOT-23-5	TI	SOT-23-5	5	₹74.99 · 5 in stock	View
LMC7101BIM5X/NOPB#C88037TI · SOT-23-5	TI	SOT-23-5	23,240	₹37.56 · 23,240 in stock	View
TLV2371IDBVR#C55940TI · SOT-23-5	TI	SOT-23-5	19,007	₹76.89 · 19,007 in stock	View
TLV2371QDBVRQ1#C2058475TI · SOT-23-5	TI	SOT-23-5	2,907	₹116.41 · 2,907 in stock	View
TSX711AIYLT#C5268432ST · SOT-23-5	ST	SOT-23-5	1	₹667.86 · 1 in stock	View
