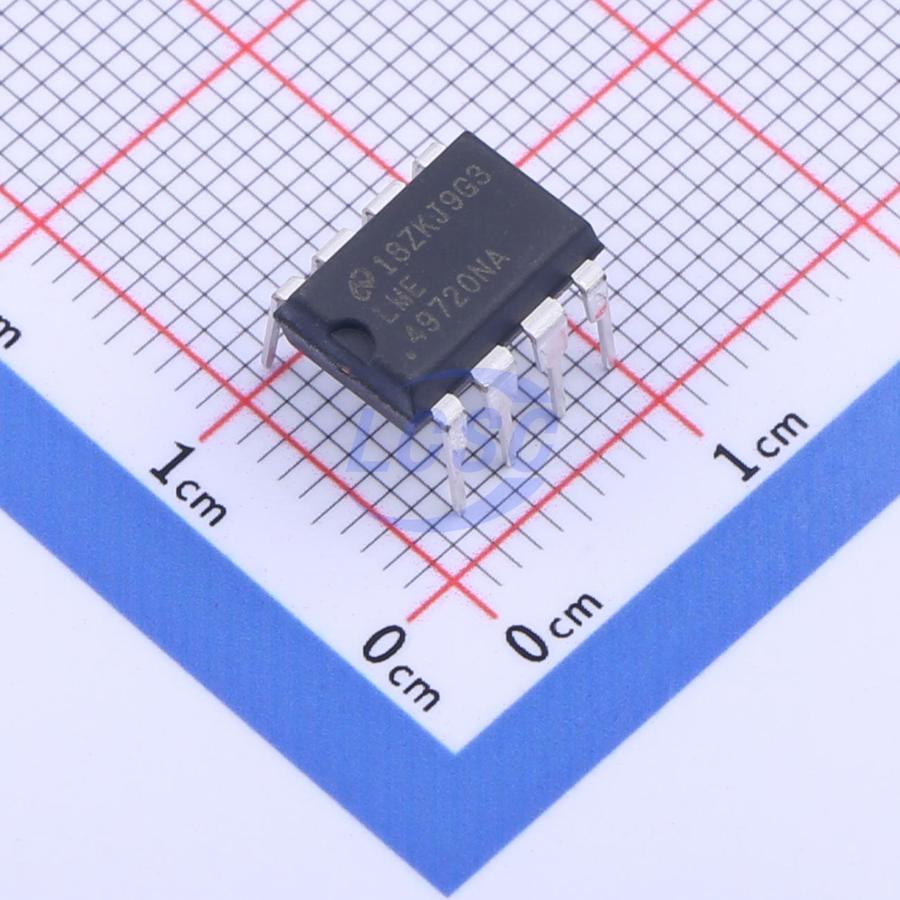

LME49720NA/NOPB

PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS

PDIP-8ROHS3 CompliantActive

Dual High Performance, High Fidelity Audio Operational Amplifier

Manufacturer: TI
Manufacturer part #: LME49720NA/NOPB
Store part #: C1347382
Package / case: PDIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,641 in stock

#C1347382

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹457.27	₹457.27
10+	₹394.39	₹3,943.90
40+	₹329.14	₹13,165.60
80+	₹291.19	₹23,295.20
400+	₹273.85	₹1,09,540.00
800+	₹265.82	₹2,12,656.00

Quantity (min 1)

1 × ₹457.27

₹457.27

excl. GST

₹539.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 40 per tube

LME49720NA/NOPB

₹457.27 for 1 + GST

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 40 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.995 g

Overview

The LME49720 device is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LME49720 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LME49720 combines extremely low voltage noise density (2.7 nV/√Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications.

Applications

Ultra High Quality Audio Amplification
High Fidelity Preamplifiers
High Fidelity Multimedia
State of the Art Phono Pre Amps
High Performance Professional Audio
High Fidelity Equalization and Crossover Networks
High Performance Line Drivers
High Performance Line Receivers
High Fidelity Active Filters

Key features

Easily Drives 600Ω Loads
Optimized for Superior Audio Signal Fidelity
Output Short Circuit Protection
PSRR and CMRR Exceed 120dB (typ)
SOIC, PDIP, TO-99 Metal Can Packages
Power Supply Voltage Range: ±2.5 to ±17V
THD+N (AV = 1, VOUT = 3VRMS, fIN = 1kHz): RL = 2kΩ; 0.00003% (typ), RL = 600Ω: 0.00003% (typ)
Input Noise Density: 2.7 nV/√Hz (typ)
Slew Rate: ±20V/μs (typ)
Gain Bandwidth Product: 55MHz (typ)
Open Loop Gain (RL = 600Ω): 140dB (typ)
Input Bias Current: 10nA (typ)
Input Offset Voltage: 0.1mV (typ)
DC Gain Linearity Error: 0.000009%
