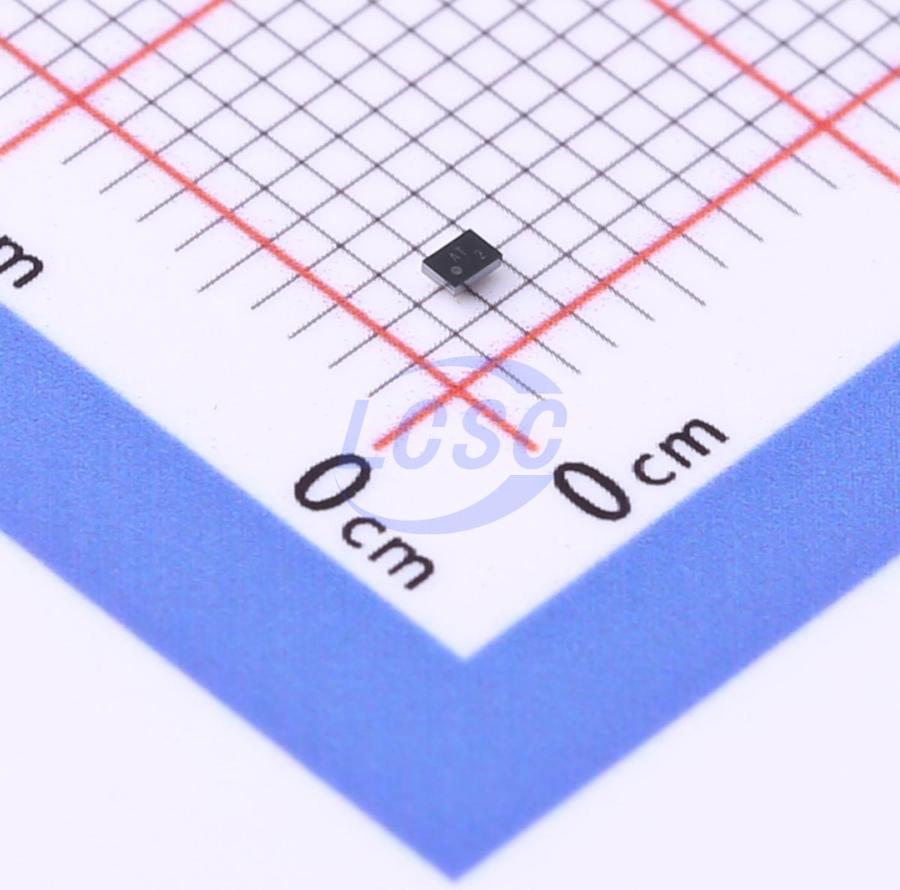

LMG1020YFFR

The LMG1020 is a single-channel low-side driver designed to drive GaN FETs and logic-level MOSFETs in high-speed applications including LiDAR, time-of-flight, facial recognition, and any power converter involving a low-side driver. The LMG1020 features a minimalist design that achieves an ultra-fast propagation delay of 2.5 ns and a minimum pulse width of 1 ns. Drive strength for the pull-up and pull-down edges can be independently adjusted by connecting external resistors between the gate and OUTH and OUTL, respectively. The driver provides UVLO and OTP under overload or fault conditions. The LMG1020's 0.8mm×1.2mm WCSP package minimizes gate loop inductance and maximizes high-frequency power density requirements.

Applications

• LiDAR
• Time-of-Flight Laser Driver
• Facial Recognition
• Class E Wireless Charger
• VHF Resonant Power Converter
• GaN-Based Synchronous Rectifier
• Augmented Reality

Key features

• Low-side, ultra-fast gate driver for GaN and silicon FETs
• 1ns minimum input pulse width
• Operating frequency up to 60MHz
• Propagation delay: 2.5ns typical, 4.5ns maximum
• Typical rise and fall time 400ps
• 7A peak source current and 5A peak sink current
• 5V supply voltage
• UVLO and over-temperature protection
• 0.8mm×1.2mm WCSP package
