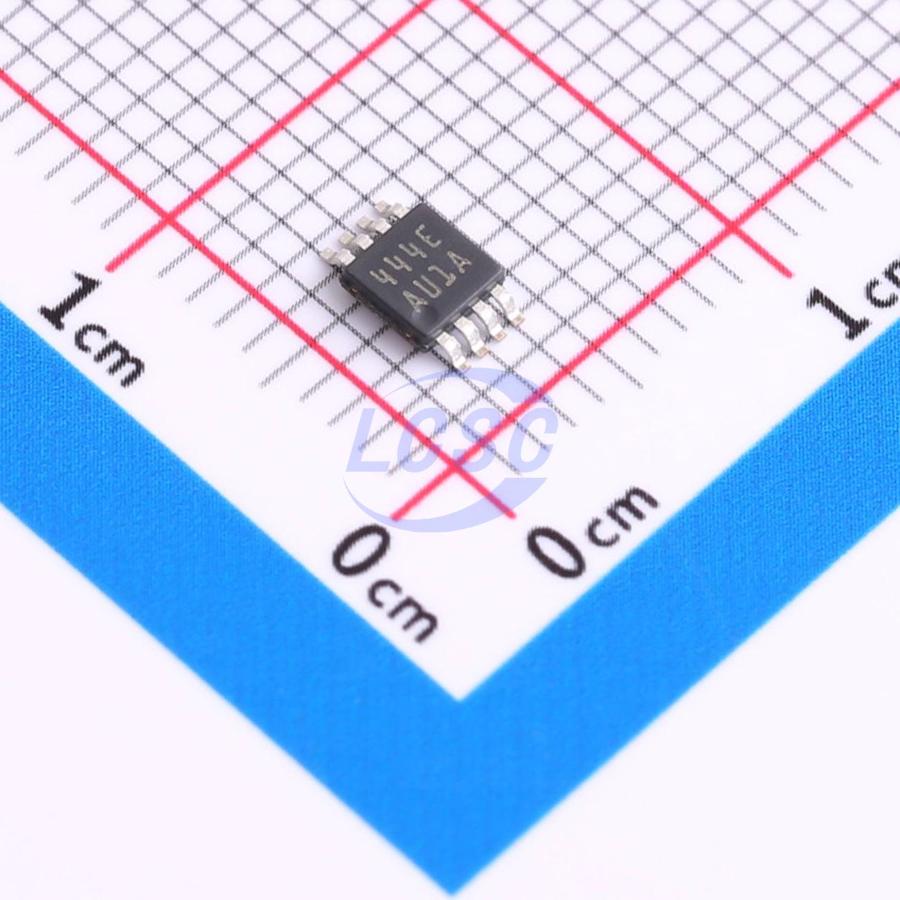

LMH6551MMX/NOPB
65mA 1 500uV 2400V/us 0uA 80dB 370MHz 12.5mA MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
LMH6551 Differential, High-Speed Op Amp
- Manufacturer
- TI
- Manufacturer part #
- LMH6551MMX/NOPB
- Store part #
- C2871383
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,401 in stock
#C2871383
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.28 | ₹216.28 |
| 10+ | ₹197.39 | ₹1,973.90 |
| 30+ | ₹185.44 | ₹5,563.20 |
| 100+ | ₹173.29 | ₹17,329.00 |
| 500+ | ₹167.65 | ₹83,825.00 |
| 1,000+ | ₹165.26 | ₹1,65,260.00 |
1 × ₹216.28
₹216.28
excl. GST
₹255.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
LMH6551MMX/NOPB
₹216.28 for 1 + GST
Specifications
- output type
- Differential
- Settling time
- 18ns
- Output Current
- 65mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 2400V/us
- Input Offset Current(Ios)
- 0.03uA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0uA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Power Supply Rejection Ratio (PSRR)
- 90dB
- Maximum Power Supply Range (Vdd-Vss)
- 12V
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Gain Bandwidth Product
- 370MHz
- Quiescent Current
- 12.5mA
- Features
- Single-ended to differential conversion;Integrated ADC driver;Adjustable output common-mode voltage;Enable/shutdown function
- Dual Supply
- -5V~5V
- Single Supply
- 5V
- Noise density(eN)
- 6nV/√Hz@1MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The LMH6551 device is a high-performance voltage feedback differential amplifier. It has the high speed and low distortion necessary for driving high-performance ADCs as well as the current handling capability to drive signals over balanced transmission lines like CAT 5 data cables. It can handle a wide range of video and data formats. With external gain set resistors, it can be used at any desired gain. Gain flexibility coupled with high speed makes it suitable for use as an IF amplifier in high-performance communications equipment. It is available in the space-saving SOIC and VSSOP packages.
Applications
- Differential AD Driver
- Video Over Twisted-Pair
- Differential Line Driver
- Single End to Differential Converter
- High-Speed Differential Signaling
- IF/RF Amplifier
- SAW Filter Buffer/Driver
Key features
- 370 MHz −3-dB Bandwidth (VOUT = 0.5 VPP)
- 50 MHz 0.1-dB Bandwidth
- 2400 V/μs Slew Rate
- 18 ns Settling Time to 0.05%
- −94/−96 dB HD2/HD3 at 5 MHz
