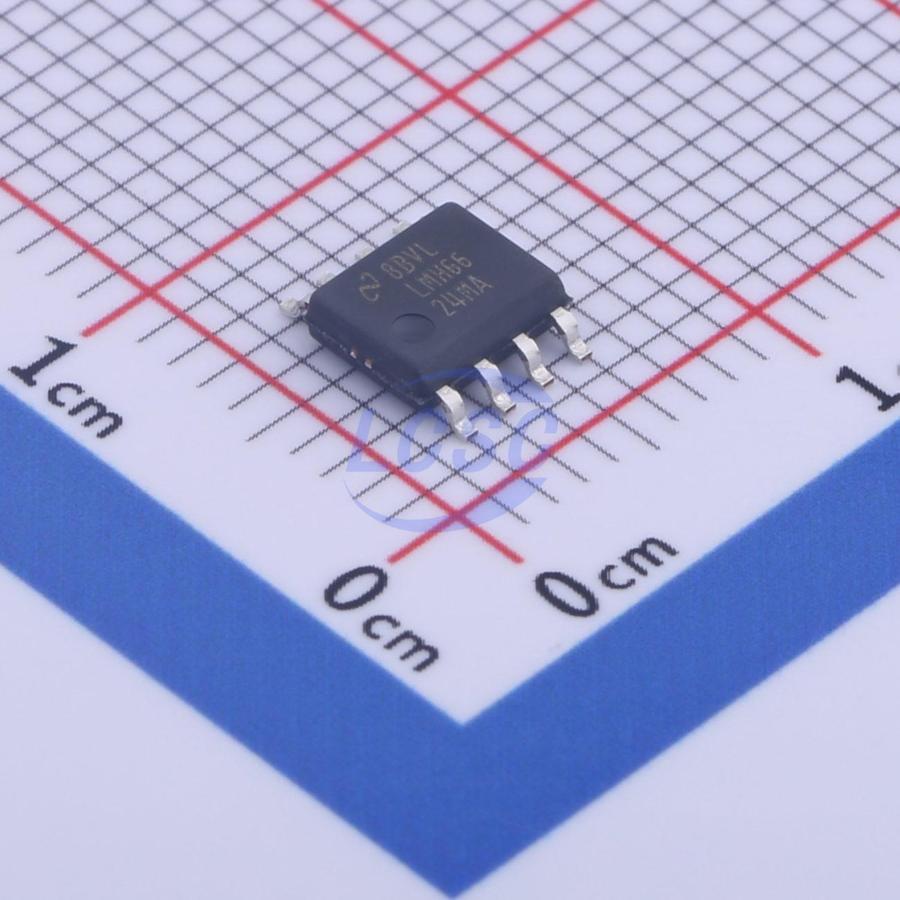

LMH6624MAX/NOPB

145mA 1 250uV 350V/us 95dB 20uA 16mA 1.5GHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Single/Dual Ultra Low Noise Wideband Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMH6624MAX/NOPB
Store part #: C486023
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,297 in stock

#C486023

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹918.96	₹918.96
10+	₹786.56	₹7,865.60
30+	₹643.53	₹19,305.90
100+	₹564.10	₹56,410.00
500+	₹527.41	₹2,63,705.00
1,000+	₹510.92	₹5,10,920.00

Quantity (min 1)

1 × ₹918.96

₹918.96

excl. GST

₹1,084.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMH6624MAX/NOPB

₹918.96 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 145mA
Number of Channels: 1
Vos - Input Offset Voltage: 250uV
Slew Rate: 350V/us
Input Offset Current(Ios): 1.5uA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 20uA
Input Offset Voltage Drift(Vos TC): 250nV/℃
Quiescent Current: 16mA
Gain Bandwidth Product: 1.5GHz
Input Voltage Noise Density: 920pV/√Hz@1MHz
Dual Supply: -6V~6V
Single Supply: 5V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The LMH6624 and LMH6626 devices offer wide bandwidth (1.5 GHz for single, 1.3 GHz for dual) with very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz) and ultra-low dc errors (100 μV VOS, ±0.1 μV/°C drift) providing very precise operational amplifiers with wide dynamic range. This enables the user to achieve closed-loop gains of greater than 10, in both inverting and non-inverting configurations. The LMH6624 (single) and LMH6626 (dual) traditional voltage feedback topology provide the following benefits: balanced inputs, low offset voltage and offset current, very low offset drift, 81dB open loop gain, 95dB common mode rejection ratio, and 88dB power supply rejection ratio. The LMH6624 and LMH6626 devices operate from ±2.5 V to ±6 V in dual supply mode and from 5 V to 12 V in single supply configuration.

Applications

Instrumentation Sense Amplifiers
Ultrasound Pre-amps
Magnetic Tape & Disk Pre-amps
Wide Band Active Filters
Professional Audio Systems
Opto-electronics
Medical Diagnostic Systems

Key features

Wide bandwidth (1.5 GHz for single, 1.3 GHz for dual)
Very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz)
Ultra-low dc errors (100 μV VOS, ±0.1 μV/°C drift)
Balanced inputs
Low offset voltage and offset current
Very low offset drift
81dB open loop gain
95dB common mode rejection ratio
88dB power supply rejection ratio
Operate from ±2.5 V to ±6 V in dual supply mode and from 5 V to 12 V in single supply configuration
