TIDatasheet (PDF)

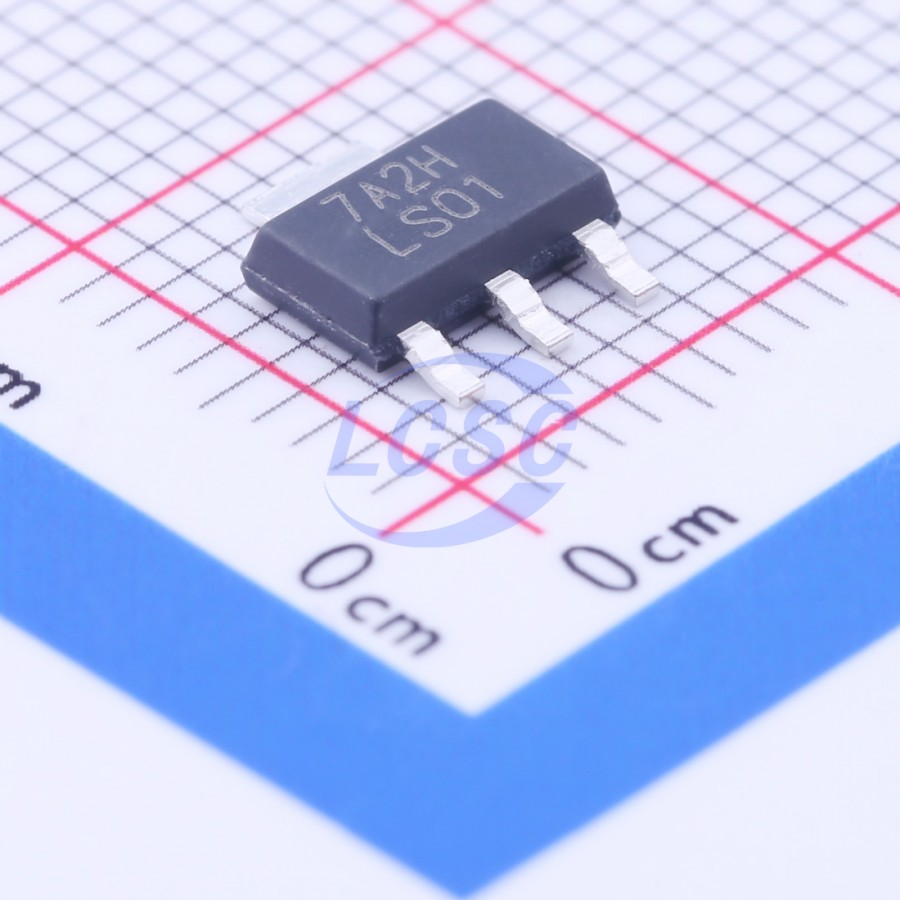

LMS8117AMP-3.3/NOPB
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
1A, 15V high-precision linear regulator with an operating temperature range of 0°C to 125°C
- Manufacturer
- TI
- Manufacturer part #
- LMS8117AMP-3.3/NOPB
- Store part #
- C201952
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,912 in stock
#C201952
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.42 | ₹152.42 |
| 10+ | ₹126.19 | ₹1,261.90 |
| 30+ | ₹111.89 | ₹3,356.70 |
| 100+ | ₹95.63 | ₹9,563.00 |
| 500+ | ₹85.43 | ₹42,715.00 |
| 1,000+ | ₹82.18 | ₹82,180.00 |
1 × ₹152.42
₹152.42
excl. GST
₹179.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMS8117AMP-3.3/NOPB
₹152.42 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
The LMS8117A device is a series of low-dropout voltage regulators with a dropout of 1.2 V at 1 A of load current. The device has the same pinout as the LM317. The LMS8117A is available in an adjustable version, which can set the output voltage from 1.27 V to 13.8 V with only two external resistors. In addition, the device is also available in two fixed voltages, 1.8 V and 3.3 V. The LMS8117A offers current limiting and thermal shutdown. The device circuit includes a Zener trimmed band-gap reference to assure output voltage accuracy to within ±1%. The LMS8117A is available in SOT-223 and TO-252 D-PAK packages. A 10 μF (minimum) tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC-DC Converters
- High Efficiency Linear Regulators
- Battery Chargers
- Battery-Powered Instrumentation
Key features
- Available in 1.8-V, 3.3-V, and Adjustable Versions
- Space-Saving SOT-223 and TO-252 Packages
- Current Limiting and Thermal Protection
- Output Current: 1 A
- Temperature Range: 0°C to 125°C
- Line Regulation: 0.2% (Maximum)
- Load Regulation: 0.4% (Maximum)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IMP-3.3/TR#C5116310HGSEMI · SOT-223 | HGSEMI | SOT-223 | 3,065 | ₹15.43 · 3,065 in stock | View |
 | AMS1117-3.3RG#C2977152HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 13,690 | ₹7.04 · 13,690 in stock | View |
 | LM1117MP-3.3/TR#C498153HGSEMI · SOT-223-3L | HGSEMI | SOT-223-3L | 190 | ₹12.67 · 190 in stock | View |
 | CJT1117B-3.3#C78777JSCJ · SOT-223 | JSCJ | SOT-223 | 46,250 | ₹7.91 · 46,250 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 49,520 | ₹5.27 · 49,520 in stock | View |
