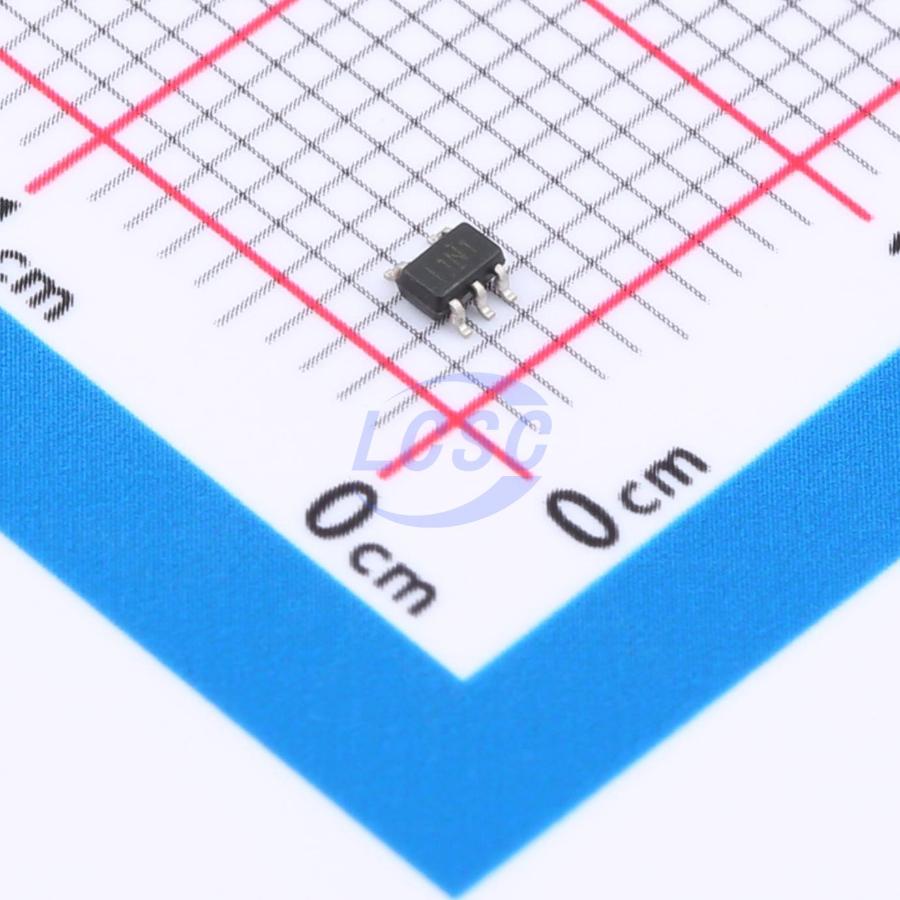

LMV321AQDCKRQ1

The LMV3xxA-Q1 family includes single-channel (LMV321A-Q1), dual-channel (LMV358A-Q1), and quad-channel (LMV324A-Q1) low-voltage (2.5V to 5.5V) automotive-grade op-amps with rail-to-rail output swing. These op-amps offer a cost-effective solution for space-constrained applications requiring low-voltage operation and high capacitive load drive, such as infotainment systems and lighting. The LMV3xxA-Q1 family supports capacitive load drive up to 500pF, while the resistive open-loop output impedance facilitates stable operation at higher capacitive loads. Designed for low supply voltages (2.5V to 5.5V), these op-amps deliver performance specifications comparable to LMV3xx-Q1 devices. The robust design of the LMV3xxA-Q1 family simplifies circuit design. These op-amps feature unity-gain stability, integrated RFI and EMI rejection filters, and no phase reversal under overdrive conditions. The LMV3xxA-Q1 is available in industry-standard packages including SOIC, MSOP, SOT-23, and TSSOP.

Applications

• Optimized for AEC-Q100 Grade 1 applications
• Infotainment systems and instrument clusters
• Passive safety
• Body electronics and lighting
• HEV/EV inverters and motor control
• On-board chargers (OBC) and wireless chargers
• Powertrain current sensors
• Advanced driver assistance systems (ADAS)
• Single-supply, low-side, unidirectional current sensing circuits

Key features

• AEC-Q100 qualified for automotive applications
• Temperature Grade 1: -40°C to +125°C, TA
• Device HBM ESD Classification Level 2
• Device CDM ESD Classification Level C6
• Low input offset voltage: ±1mV
• Rail-to-rail output
• Unity-gain bandwidth: 1MHz
• Low wideband noise: 30nV/√Hz
• Low input bias current: 10pA
• Low quiescent current: 70μA/channel
• Unity-gain stable
• Built-in RFI and EMI filter
• Operates from supply voltages as low as 2.5V
• Resistive open-loop output impedance for easier stabilization with higher capacitive loads
• Operating temperature range: -40°C to 125°C
