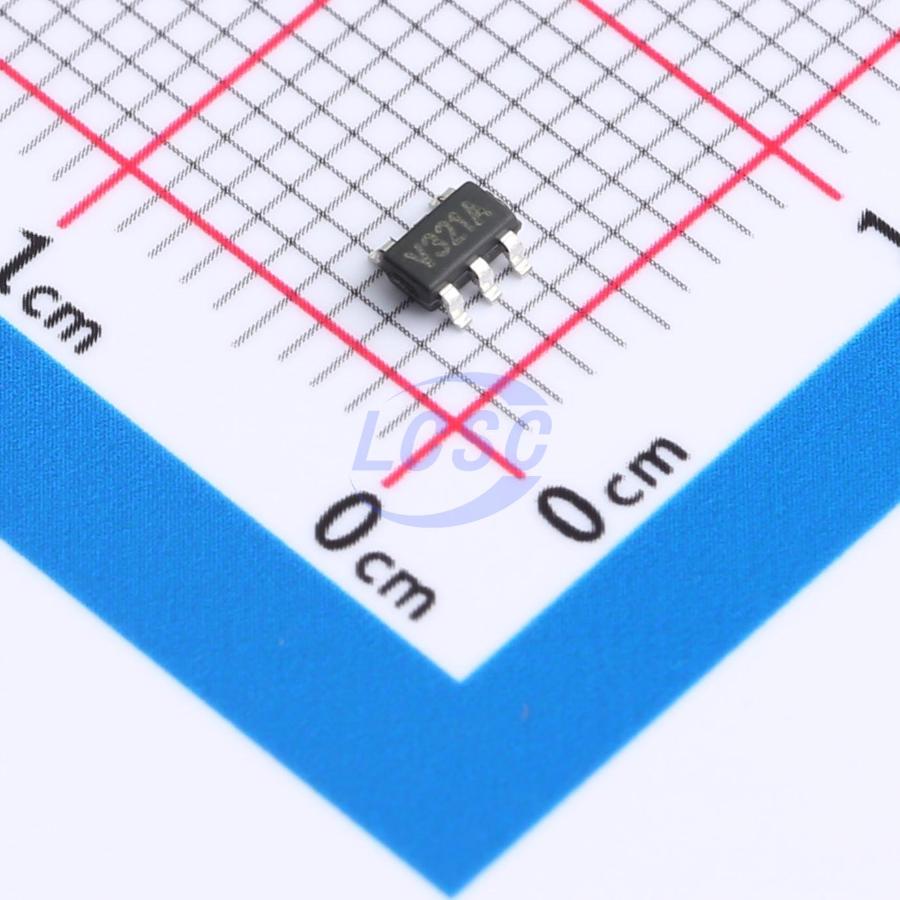

LMV321ATDTR(XBLW)

The XBLW LMV321A (single), XBLW LMV358A (dual) and XBLW LMV324A (quad) are general purpose, low offset, high frequency response and micro power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 0.8V/μs and a quiescent current of 80μA per amplifier at 5V, the XBLW LMV321A/358A/324A family can be designed into a wide range of applications. The XBLW LMV321A/358A/324A op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 4.5mV. These parts provide rail-to-rail output swing into heavy loads. The XBLW LMV321A/358A/324A family is specified for single or dual power supplies of +2.3V to +5.5V. All models are specified over the extended industrial temperature range of -40℃ to +125℃. The XBLW LMV321A is available in 5-lead SOT-23 and SC70-5 package. The XBLW LMV358A is available in 8-lead SOP package. The XBLW LMV324A is available in 14-lead SOP package.

Applications

• Active Filter
• Smoke/Gas/Environment Sensors
• Audio Outputs
• Battery and Power Supply Control
• Portable Equipment and Mobile Devices
• Sensor Interfaces
• Battery-Powered Instrumentation
• Medical Instrumentation

Key features

• General Purpose 1MHz Amplifiers
• Low Cost
• High Slew Rate: 0.8V/μs
• Low Offset Voltage: 4.5mV Maximum
• Low Power: 80μA per Amplifier Supply Current
• Setting Time to 0.1% with 2V Step: 4.2μs
• Unit Gain Stable
• Rail-to-Rail Input and Output
• Input Voltage Range: -0.1V to +5.1V at 5V Supply
• Operating Power Supply: +2.3V to +3.5V
• Operating Temperature Range: -40℃ to +125℃
• ESD Rating: HBM - 4kV, CDM - 2kV
• Upgrade to LMV321A/LMV358A/LMV324A Family
